BRAKES

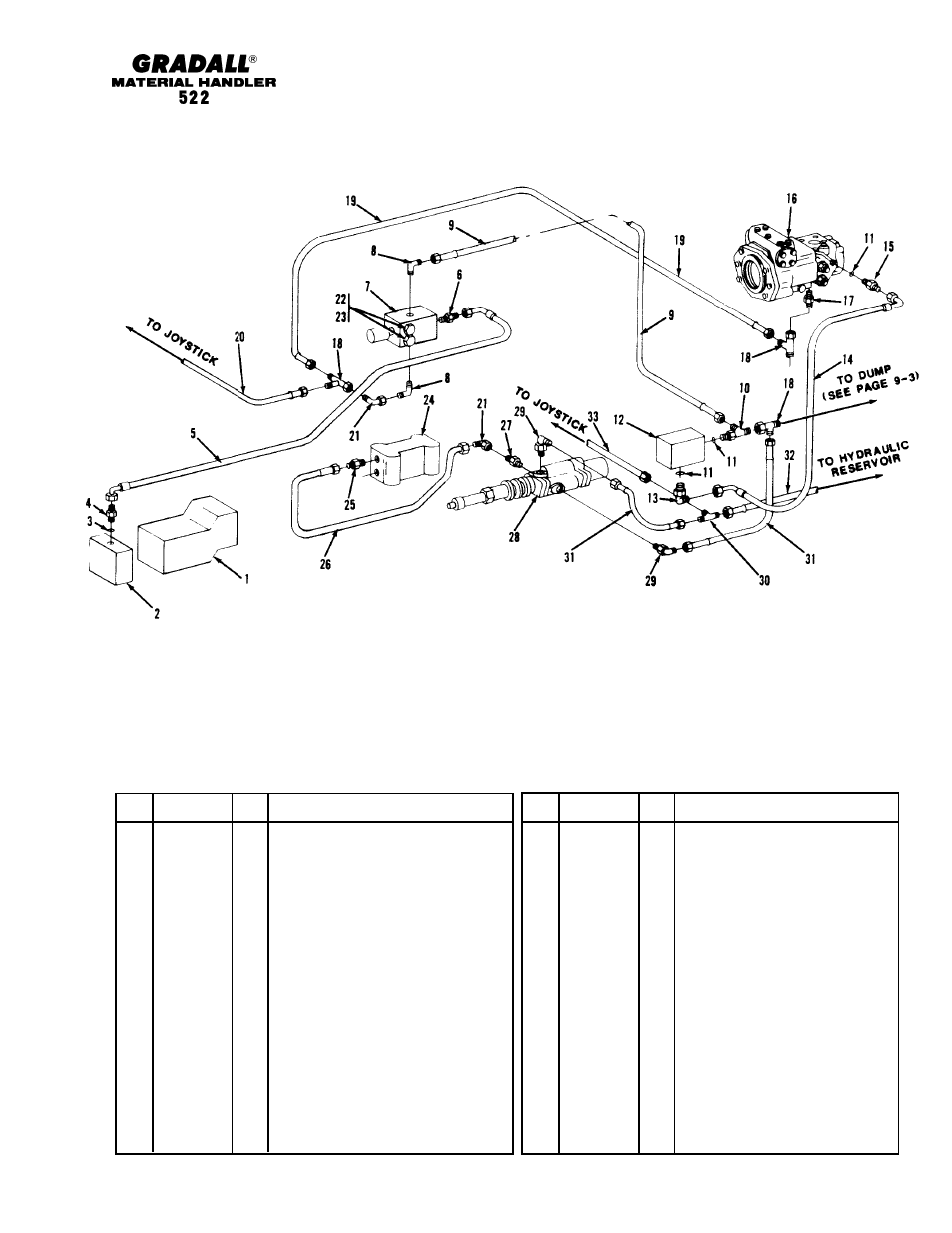

Inching & Parking Brake Lines (522)
Starting Serial No. 0177064
Original Issue 4-93
Revised 3-13-96
8-4
Item Part No. Qty. Description Of Part
1 Ref FRONT AXLE DRIVE MOTOR
(see page 10-17 for details)
2 Ref BRAKE ASSY (see page 6-4 for details)
3 8859-1202 1 O-RING
4 8866-2003 1 CONNECTOR (includes item 3)
5 8471-7869 1 HOSE ASSY
* 6 8866-2017 1 CONNECTOR (includes o-ring)
8859-1204 1 O-RING
7 Ref SOLENOID VALVE (see page 6-4 for
details)
* 8 8866-2064 2 ELBOW, 90 DEGREES (includes o-ring)
8859-1204 1 O-RING
9 8471-7889 1 HOSE ASSY
10 8866-2139 1 RUN TEE (includes item 11)
11 8859-1204 3 O-RING
12 Ref INCHING VALVE (see page 10-13 for
details)
13 8861-3064 1 ELBOW,90 DEGREES(includes item11)
14 8471-7817 1 HOSE ASSY
15 8866-2017 1 CONNECTOR (includes item 11)
16 Ref HYDROSTATIC TRANSMISSION ASSY
( see page 10-15 for details)
Item Part No. Qty. Description Of Part
17 9105-3426 1 CONNECTOR
18 8866-2239 1 CONNECTOR
19 8471-7852 1 HOSE ASSY
20 9020-4096 1 HOSE ASSY
21 8866-2105 1 ELBOW, 90 DEGREE, (swivel nut)
22 8820-1008 2 HEX HD CAPSCREW, 1/4-20X1-3/4,
GR5
23 8855-1009 2 LOCKWASHER, 1/4
24 Ref FLOW DIVIDER VALVE
(see page 10-19 for details)
25 9105-3426 1 CONNECTOR
26 8471-7853 1 HOSE ASSY
27 9108-3306 1 CONNECTOR
28 Ref BRAKE VALVE ASSY
(see page 10-10 for details)
29 9108-3310 2 ELBOW, 90 DEGREES
30 8866-1305 1 UNION TEE, 3/8 TUBE
31 8471-7890 2 HOSE ASSY
32 8471-6358 1 HOSE ASSY
33 7713-3197 1 HOSE ASSY
KG
* Changed page number.
