Gradall 524 Parts Manual - Manual (Page 151)

Item Part No. Qty. Description Of Part
1 Ref HYDRAULIC CYLINDER ASSY CROWD
(see page 10-2 for details)
2 8866-2065 2 ELBOW, 90 DEGREES
(includes item 3)
3 8859-1205 2 O-RING
4 8471-7885 1 HOSE ASSY
5 8471-7884 1 HOSE ASSY
6 9108-3226 1 TUBE ASSY
7 9108-3230 1 TUBE ASSY
8 7713-3139 2 CLAMP SET
9 7713-3140 2 COVER PLATE
10 7713-3177 2 HEX HD CAPSCREW
11 8866-2007 2 CONNECTOR (includes item 12)
12 8859-1206 2 O-RING
13 Ref MAIN HYDRAULIC CONTROL VALVE
(see page 10-7 for details)
14 7713-3893 2 CLAMP SET
15 7713-3052 2 COVER PLATE
16 7713-3209 4 HEX HD CAPSCREW, 1/4-20X1-3/8
17 8858-1140 4 RETAINING RING
18 9108-1437 1 CROWD CYLINDER PIN
19 9108-1438 1 CROWD CYLINDER PIN

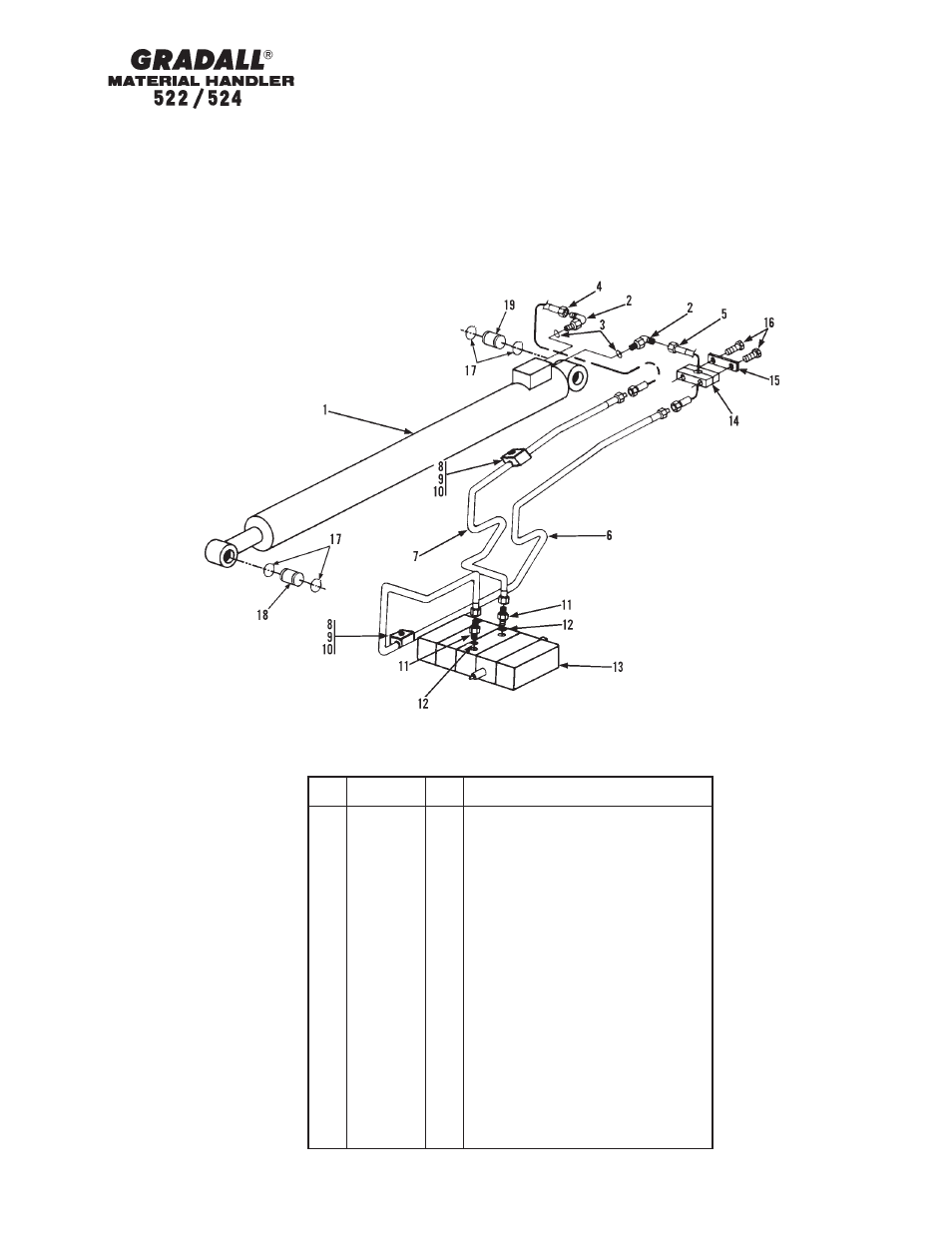

HYDRAULIC CIRCUITS
Crowd Cylinder
Starting Serial No. 0177005
Original Issue 1-90
Revised 11-08-05
9-7 JD
*
* Revised illustration and added items 17 thru 19.
*
*
