Gradall 524 Parts Manual User Manual
Page 161
HYDRAULIC COMPONENTS

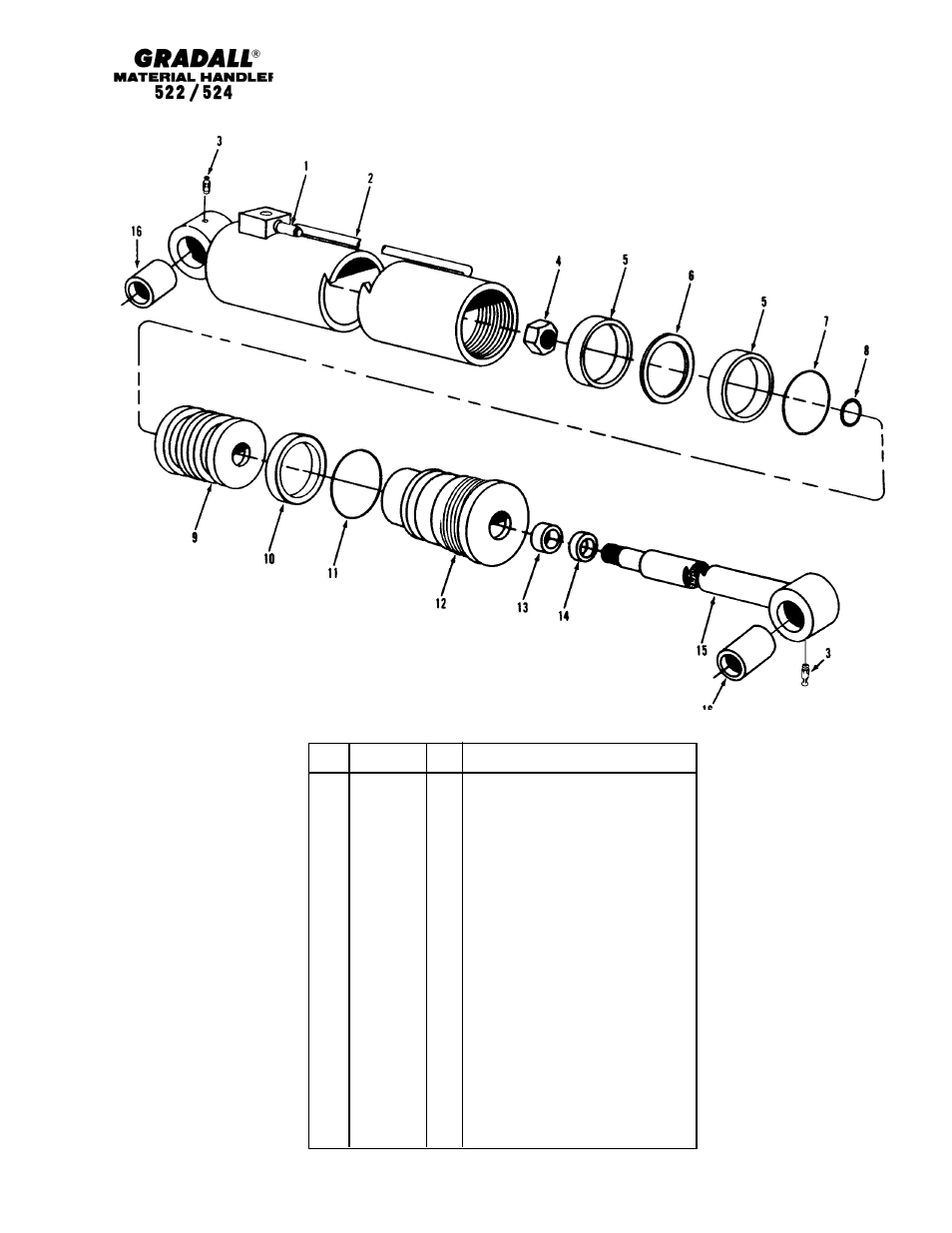

(9108-3379) Tilt Cylinder Assembly
Starting Serial No. 0177005
Original Issue 1-90
Revised 12-18-95
Item
Part No.
Qty.
Description Of Part
9108-3379
1
TILT CYLINDER ASSY
(includes all items)
9103-4297
Ref
SEAL KIT,
(includes items 5, 6, 7, 10, 11, 13 & 14)
1
9103-3430
1
COUNTERBALANCE VALVE
2
9108-4216
1
TUBE ASSY
3
8867-1033
2
LUBE FITTING-STRAIGHT, 1/4-28
4
9103-4286
1
NUT
5
2
WEAR RING
6
1
SEAL
7
1
O-RING
8
1
O-RING
9
9108-4291
1
PISTON
10
1
BACK-UP RING
11
1
O-RING
12
9108-4299
1
GLAND
13
1
SEAL
14
1
WIPER
15
9108-4217
1
ROD ASSY
16
9108-4176
2
BUSHING
NOTE: ONLY ITEMS WITH PART
NUMBER ARE AVAILABLE FOR
SERVICE.
RS
* Enhanced artwork, changed nomenclature to match table of contents.
10-3
