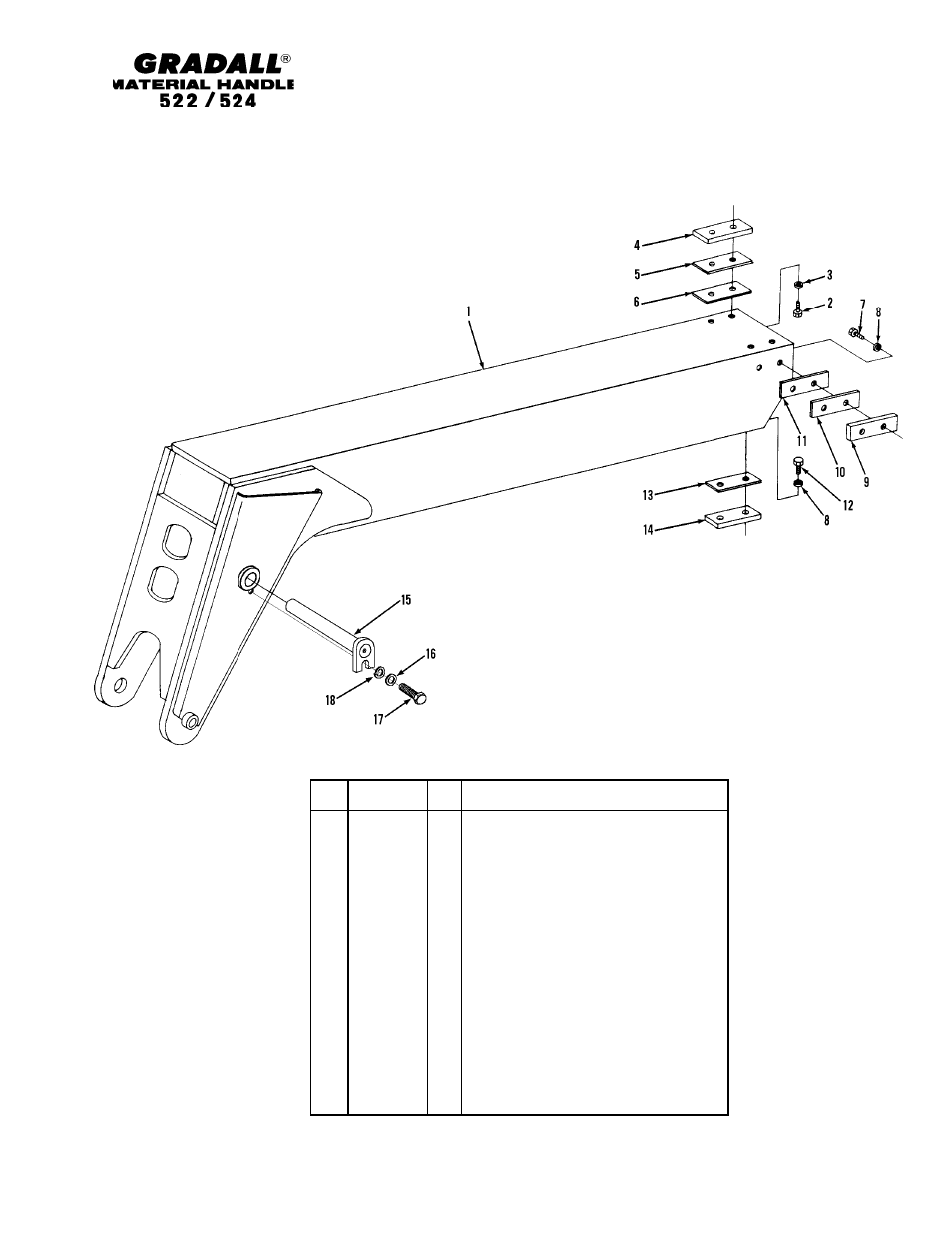

BOOM
Second Boom Section
Starting Serial No. 0177005
Original Issue 1-90
Revised 10-17-97
Item
Part No.
Qty.
Description Of Part
1
9108-6102
1
SECOND BOOM SECTION
2
8820-1564
4
HEX HD CAPSCREW, 1/2-20X1,GR5
3
9002-7471
4
HARDENED WASHER
4
9108-3297
2
BEARING PAD
5
9108-1447
2
SPACER
6
9108-1448
AR
SHIM
7
8820-1532
4
HEX HD CAPSCREW, 3/8-24X3/4,GR5
8820-1533
AR
HEX HD CAPSCREW, 3/8-24X7/8,GR5
8
9002-7470
4
HARDENED FLAT WASHER
9
9103-3186
2
BEARING PAD
10
9103-1236
2
SPACER
11
9020-5870
AR
SHIM
12
8820-1537
4
HEX HD CAPSCREW, 3/8-24X1-3/4,
GR5
13
9108-1457
2
SPACER
14
9108-3307
2
BEARING PAD
15
9114-6052
1
PIN WELDMENT
16
8855-1013
1
LOCKWASHER, 1/2
17
8820-1065
1
HEX HD CAPSCREW, 1/2-13 x 1
18
8362-1283
1
SPECIAL WASHER
3-2
PCN 920495 MB
* Changed part number on item 9.
*
