Gradall 524 Parts Manual User Manual
Page 103

2
3
17
18
13
14
15
13
14
15
16
13
14
15
6
7
8
10
11
9
1
4
5
12
SVC
7-3
Item
Part No.
Qty.
Description Of Part
9
1
JAM NUT
10
1
HEEL REST
11
2
SCREW, (self tap)
12
Ref
THROTTLE CABLE, (see pages 5-1
& 5-3 for details)
13
8820-1003
5
HEX HD CAPSCREW, 1/4-20X3/4,
GR5
14
8855-1009
5
LOCKWASHER, 1/4
15
8850-1004
5
HEX NUT, 1/4-20
16
8856-1107
1
FLAT WASHER, 1/4
17
9002-8977
1
CLEVIS
18
9002-1552
1
CLEVIS PIN
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
Item
Part No.
Qty.
Description Of Part
9114-3342
1
ACCELERATOR PEDAL ASSY,
(includes items 3 thru 11)
9114-4432
1
CABLE ATTACH KIT, (includes items
3 thru 5), (discard clevis and clevis
pin, not shown, and replace with
items 17 & 18)
9114-4197
1
BOOT KIT, (includes items 6 thru 9)
9114-4433
1
HEEL REST KIT, (includes items 10
& 11)
1
9112-1210
1
THROTTLE CABLE SUPPORT
2
9020-7801
1
SPRING
3
1
HAIRPIN COTTER
4
1
LOCK PLATE
5
1
CAPSCREW
6
1
BOOT
7
1
PIN
8
1
HAIRPIN COTTER
CONTROLS

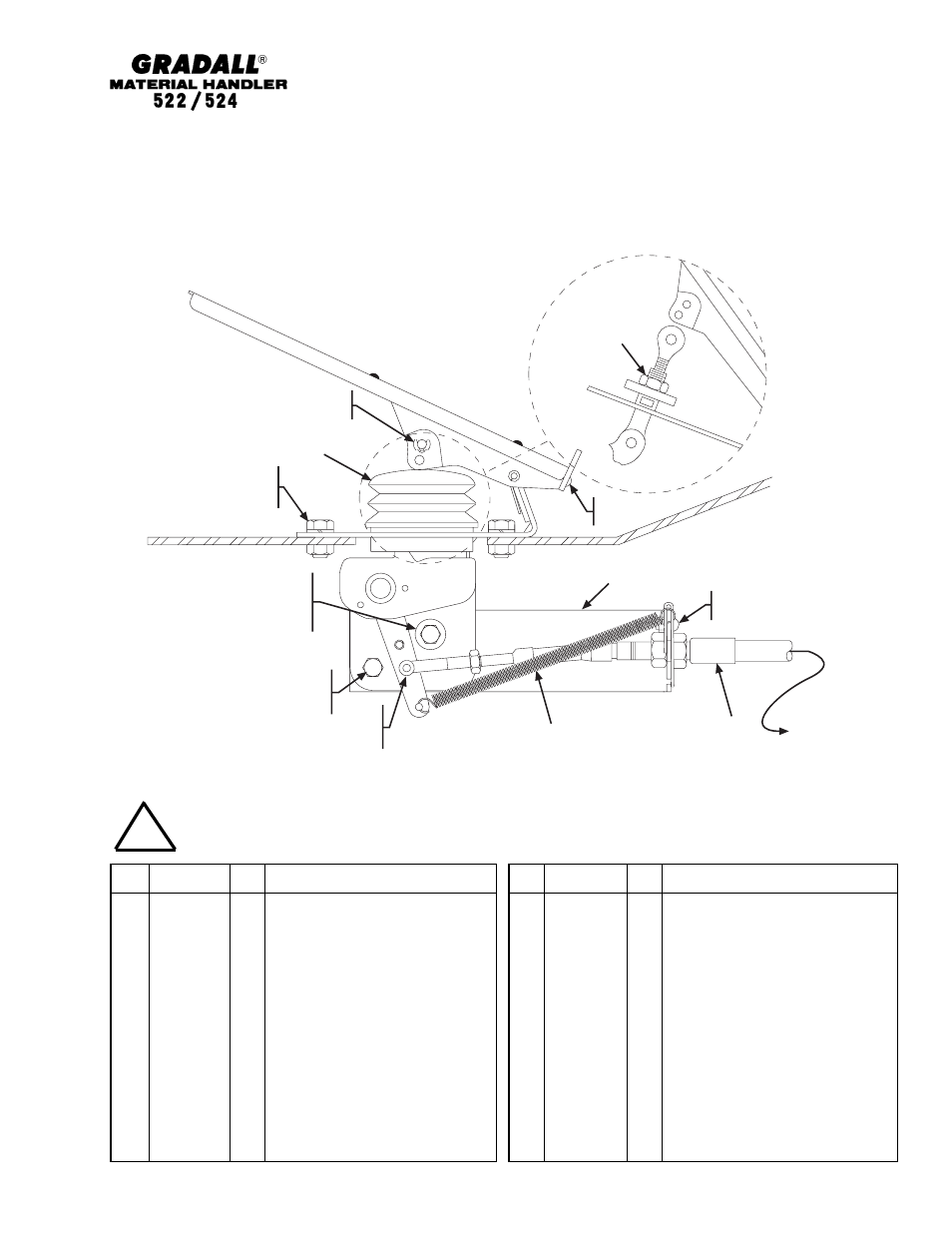

(9114-3342) Accelerator Pedal Assy
Starting Serial No. 0177368
Original Issue 1-98
Revised 1-18-02
* Revised illustration, Cable Attach Kit, part number on Heel Rest Kit and
items 2, 3, 4, 6 & 17; added item 18 and note above parts list.
*
*
*
*
*
*
*
TO ENGINE
VIEW SHOWN WITH BOOT
& PIN REMOVED
THIS ASSEMBLY COMES WITH A DIFFERENT CABLE
SUPPORT, (not shown). THE CABLE SUPPORT SHOWN IS
THE PROPER REPLACEMENT AND NEEDS TO BE
ORDERED SEPARATELY.
!
*
