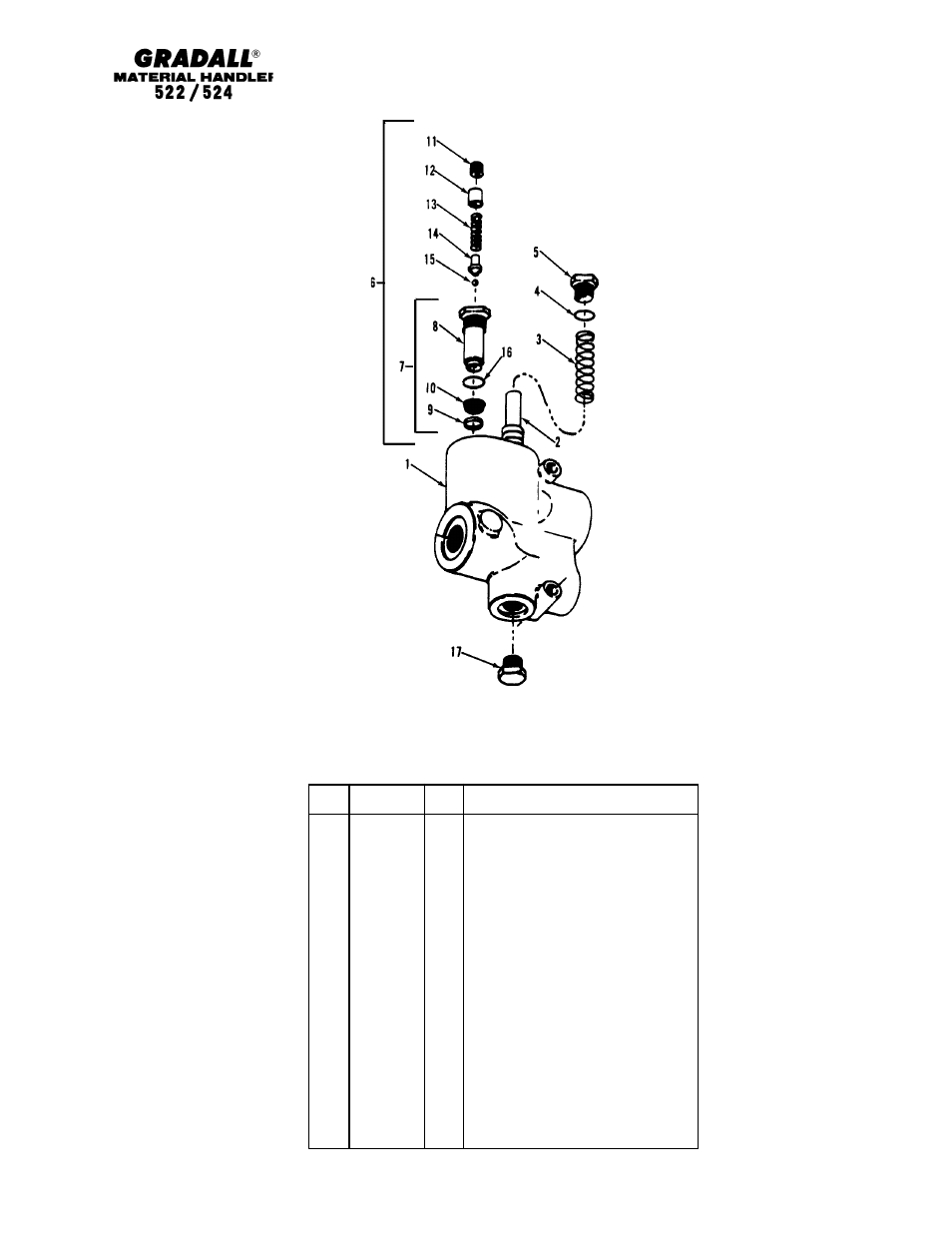

HYDRAULIC COMPONENTS
Priority Flow Control Valve
Starting Serial No. 0177005
Original Issue 1-90
10-8
Item
Part No.
Qty.
Description Of Part
9103-3240
1
PRIORITY VALVE (includes all items)
2500 PSI RELIEF SETTING
1
9020-6548
1
HOUSING (includes item 2)
2
9020-6549
1
SPOOL
3
9020-6550
1
SPRING
4
8859-1206
1
O-RING
5
9020-6552
1
PLUG
6
9020-6553
1
RELIEF CARTRIDGE
(includes items 7 thru 16)
7
9020-6554
1
RELIEF VALVE SUB BODY
(includes items 8 thru 10 )
8
9020-6555
1
BODY
9
9020-6556
1
RING
10
9020-6557
1
SCREEN
11
9020-6558
1
RELIEF VALVE ADJUSTING SCREW
12
9020-6559
1
SPRING GUIDE
13
9020-6560
1
SPRING
14
9020-6561
1
BALL HOLDER
15
9020-6562
1
BALL
16
8859-1205
1
O-RING
17
9020-6564
1
PLUG
