Gradall 524 Parts Manual - Manual (Page 47)

ATTACHMENTS

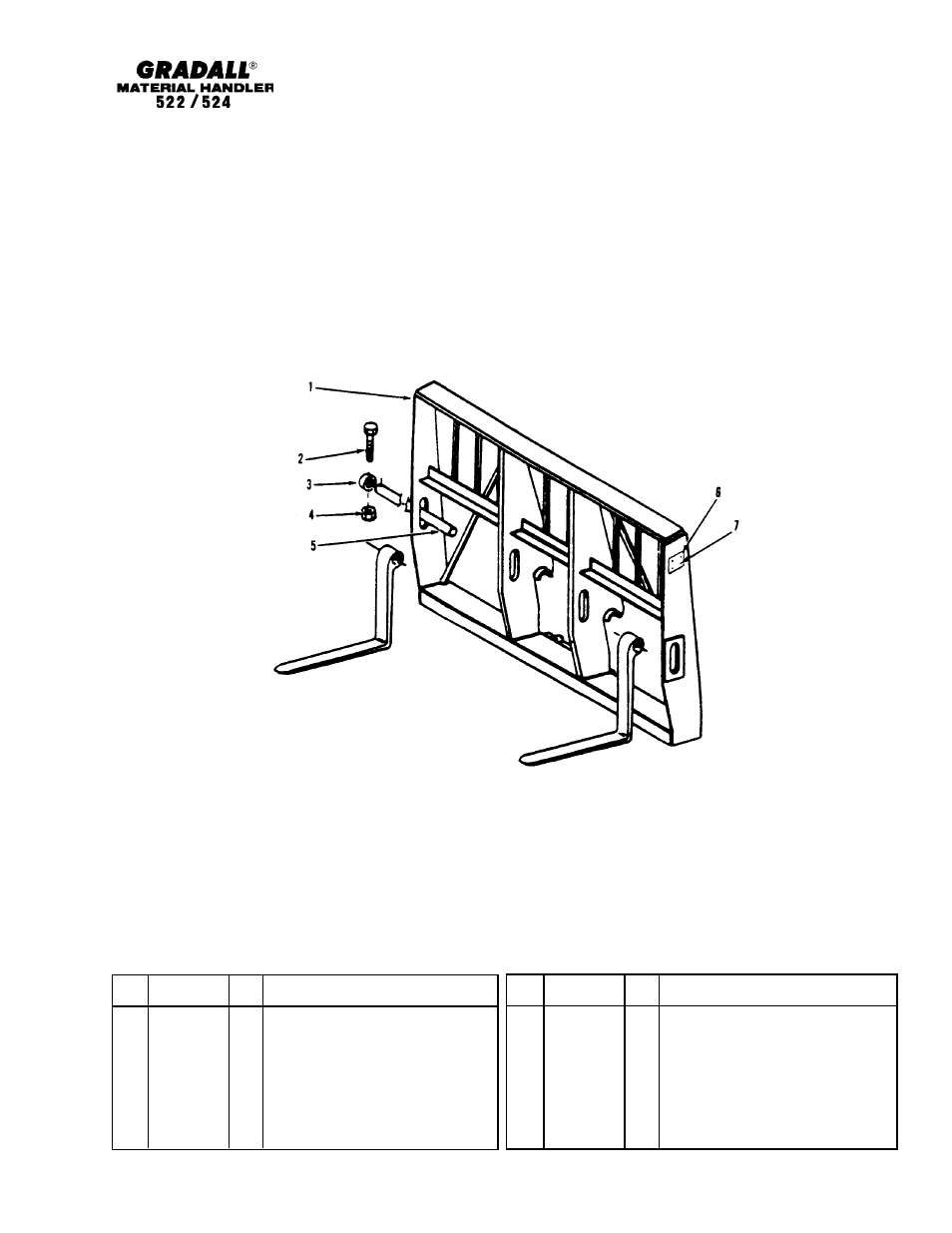

(9045-5007) and (9045-5008) Q.S. Carriage Assemblies
Starting Serial No. 0177005
Original Issue 3-90
Revised 11-29-00
Item Part No. Qty. Description Of Part
9045-5007 1 48" CARRIAGE ASSY, (includes
all items)
1 9080-1315 1 48" CARRIAGE WELDMENT
2 8820-1105 2 HEX HD CAPSCREW, 5/8-11X4, GR5
3 9020-0003 2 COLLAR
4 8852-1310 2 HEX LOCKNUT, 5/8-11
5 9040-2477 1 FORK PIN
6 9015-3001 1 SERIAL NUMBER PLATE
7 8834-1022 4 DRIVE SCREW, #10X3/8
Item Part No. Qty. Description Of Part
9045-5008 1 66" CARRIAGE ASSY, (includes all
items)
1 9080-1314 1 66" CARRIAGE WELDMENT
2 8820-1105 2 HEX HD CAPSCREW, 5/8-11X4, GR5
3 9020-0003 2 COLLAR
4 8852-1310 2 HEX LOCKNUT, 5/8-11
5 9040-2478 1 FORK PIN
6 9015-3001 1 SERIAL NUMBER PLATE
7 8834-1022 4 DRIVE SCREW, #10X3/8
4-2 SVC * Added fork note; revised part number on item 5 and 6.
NOTE: MANY DIFFERENT FORK ASSEMBLIES ARE
AVAILABLE FOR THE CARRIAGE
ASSEMBLIES USED ON 522/524C. PLEASE
SEE FORK INFORMATION PAGE, (4-5)
FOR LIST OF FORKS.
*
* *
