Hydraulic circuits oil supply & pressure lines – Gradall 524 Parts Manual User Manual
Page 130
Item Part No.
Qty.
Description Of Part
1
Ref
HYDROSTATIC DRIVE TRANSMISSION
(see page 10-15 for details)
2
8866-2011
1
STR. THREAD CONNECTOR,
(includes o-ring)
8859-1210
1
O-RING
3
9114-3087
1
INTAKE TUBE
4
9002-8695
2
BAND CLAMP
5
9108-3246
1
HOSE ASSY
6
Ref
MAIN HYDRAULIC CONTROL VALVE,
(see page 10-7 for details)
7
8866-2067
1
ELBOW, 90 DEGREES (includes item 8)
8
8859-1207
1
O-RING
9
9108-3232
1
TUBE ASSY
10
8471-7931
1
HOSE ASSY
11
8866-2061
1
ELBOW, 90 DEGREES
(includes item 12)
12
8859-1209
1
O-RING
13
Ref
PRIORITY FLOW CONTROL VALVE,
(see page 10-8 for details)
14
8866-2061
1
ELBOW, 90 DEGREES
(includes item 15)
15
8859-1209
1
O-RING
16
8366-1316
1
STR. THREAD CONNECTOR
17
9108-3293
1
TUBE ASSY
18
8471-7803
1
HOSE ASSY
19
8366-2008
1
STR. THREAD CONNECTOR
(includes item 20)
20
8859-1207
1
O-RING
Item
Part No.
Qty. Description Of Part
21
Ref
FLOW DIVIDER VALVE,
(see page 10-9 for details)
22
8866-2106
1
ELBOW, 90 DEGREES (swivel nut)
23
8688-3469
1
REDUCER
24
8866-2239
1
SWIVEL NUT RUN TEE, 3/8 TUBE
25
8471-7832
1
HOSE ASSY
26
Ref
FRT. DRIVE MOTOR ASSY
(see page 10-16 & 10-17, for details)
27
9105-3426
1
STR. THREAD ADAPTER (includes
o-ring)
8859-1207
1
O-RING
28
8866-2239
1
SWIVEL NUT RUN TEE, 3/8 TUBE
29
8866-2008
1
CONNECTOR, (includes item 30)
30
8859-1207
1
O-RING
31
8471-7851
1
HOSE ASSY
32
9108-3233
1
TUBE ASSY
33
7713-3089
1
TEST FITTING
34
8866-2010
1
CONNECTOR, (includes item 35)
35
8859-1209
1
O-RING
36
Ref
MAIN HYDRAULIC PUMP
(see page 10-14 for details)
37
8866-2011
1
CONNECTOR, (includes item 38)
38
8859-1210
1
O-RING
39
9108-3144
1
SUCTION TUBE
40
9002-8482
2
HOSE CLAMP
41
7713-3166
1
HOSE ASSY
42
9108-3145
1
SUCTION TUBE
43
Ref
HYDRAULIC RESERVOIR ASSY
(see page 10-19 for details)

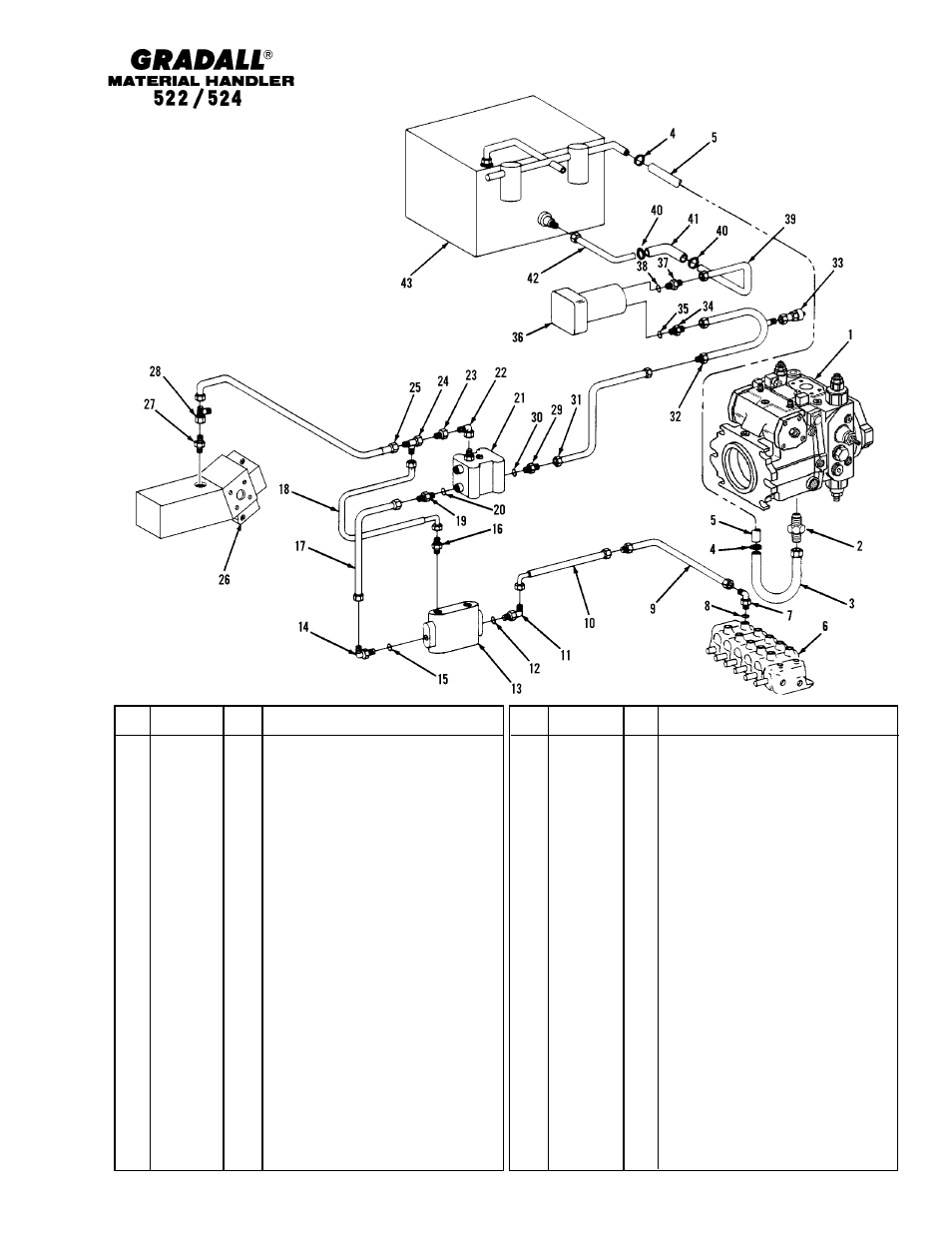

HYDRAULIC CIRCUITS
Oil Supply & Pressure Lines
Starting Serial No. 0177189
Original Issue 6-96
9-1
PCN 950721, 950724 KG
