OPTIONAL EQUIPMENT

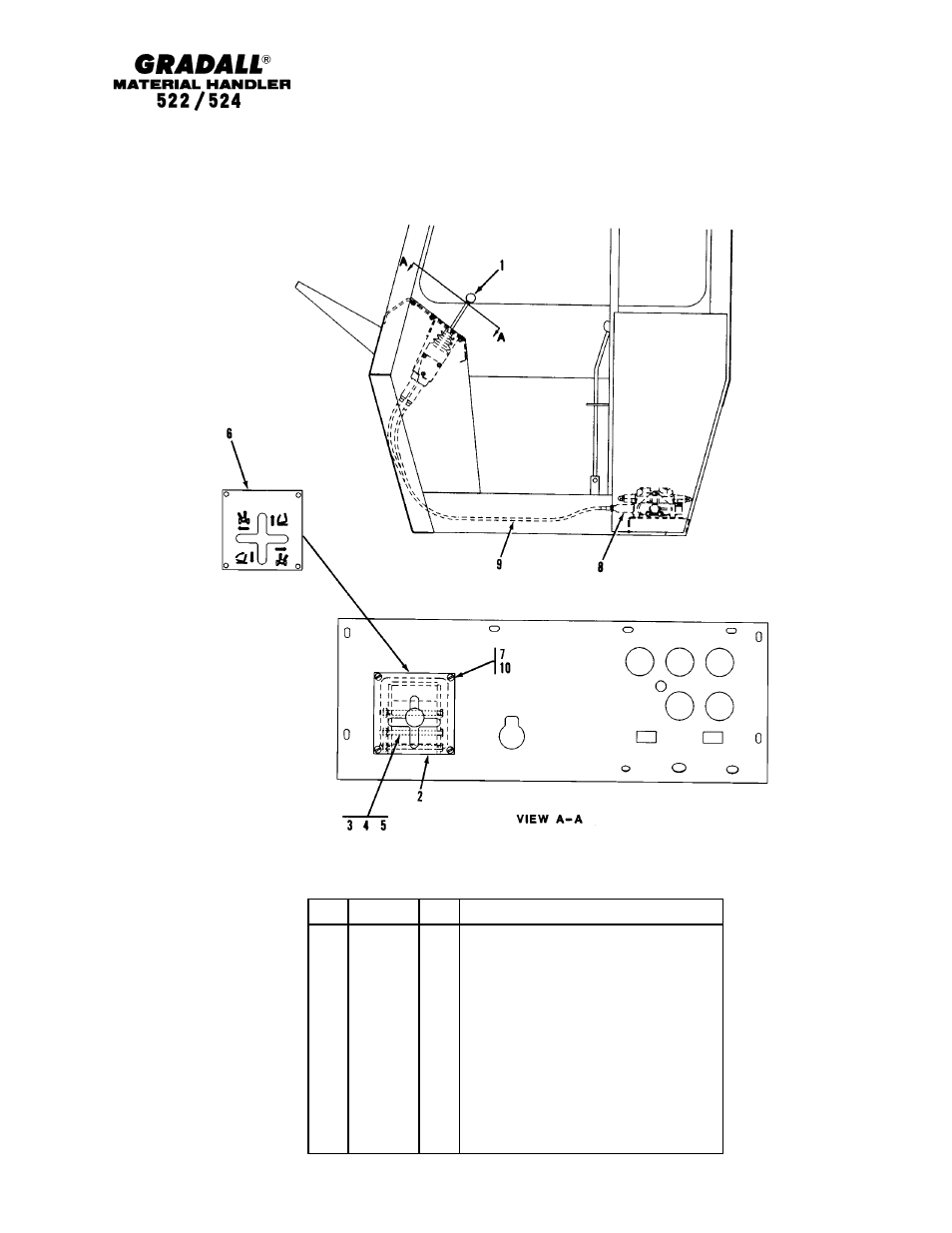

(9108-5046) L.H. Tilt Sway Control
Starting Serial No. 0177005
Original Issue 3-90
Revised 8-30-02
13-2
Item
Part No.
Qty.
Description Of Part
9108-5046
Ref
L.H. TILT SWAY CONTROL LEVER ASSY
(includes all items except four of item 4, and
items 7 & 10)
1
9108-3107
1
REMOTE VALVE CONTROL
9108-4282
1
KNOB
9108-4359
1
BOOT
2
9108-6089
1
BRACKET
3
1100-2410
3
HEX HD CAPSCREW, 1/4-28X4-1/2, GR5
4
8855-1009
7
LOCKWASHER, 1/4
5
8850-1304
3
HEX NUT, 1/4-28
6
9108-3341
1
TILT/SWAY CONTROL PLATE
7
8826-1022
4
ROUND HD MACHINE SCREW,
5/16-18X3/4
8
9112-3062
2
CABLE ADAPTER
9
9108-3393
2
CONTROL CABLE
TT
* Added part number 9108-4359 to item 1.
*
