Page 125
8-5
BRAKES

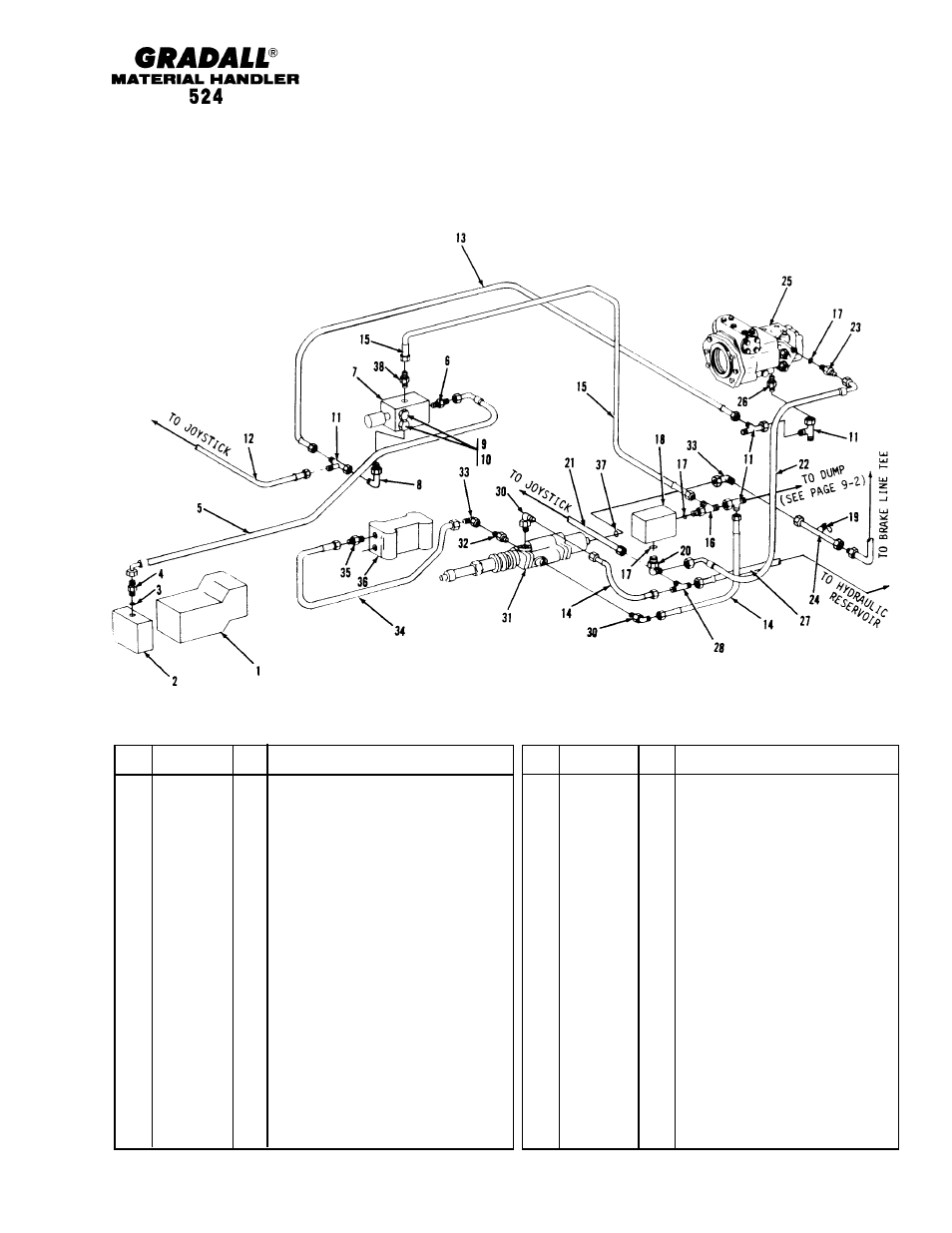

Inching & Parking Brake Lines (524)
Starting Serial No. 0177074
Revised 3-13-96
Item
Part No.
Qty.
Description Of Part
1
Ref
FRONT DRIVE MOTOR
(see page 10-16 for details)
2
Ref
BRAKE ASSY (see page 6-4 for details)
3
8859-1202
1
O-RING
4
8866-2003
1
CONNECTOR (includes item 3)
5
8471-7869
1
HOSE ASSY
* 6
8866-2017
1
CONNECTOR (incudes o-ring)
8859-1204
1
O-RING
7
Ref
SOLENOID VALVE ASSY
(see page 10-11 for details)
* 8
8866-2064
1
ELBOW, 90 DEGREES (includes o-ring)
8859-1204
1
O-RING
9
8820-1008
2
HEX HD CAPSCREW, 1/4-20X1-3/4,
GR5
10
8855-1009
2
LOCKWASHER, 1/4
11
8866-2239
3
SWIVEL NUT RUN TEE, 3/8 TUBE
12
9020-4096
1
HOSE ASSY
13
8471-7852
1
HOSE ASSY
14
8471-7890
2
HOSE ASSY
15
8471-7889
1
HOSE ASSY
16
8866-2139
1
RUN TEE (includes item 17)
17
8859-1204
3
O-RING
18
Ref
INCHING VALVE
(see page 10-13 for details)
19
7713-3089
1
TEST FITTING
Item
Part No.
Qty.
Description Of Part
20
8866-2064
1
ELBOW, 90 DEGREES
(includes item 17)
21
7713-3197
1
HOSE ASSY
22
8471-7817
1
HOSE ASSY
23
8866-2017
1
CONNECTOR (includes item 17)
24
9104-3163
1
TUBE ASSY
25
Ref
HYDROSTATIC TRANSMISSION
ASSY ( see page 10-15 for details)
26
9105-3426
1
CONNECTOR
27
8471-6726
1
HOSE ASSY
28
8866-1305
1
UNION TEE, 3/8 TUBE
29
8471-8021
1
HOSE ASSY
30
9108-3310
2
ELBOW, 90 DEGREES
31
Ref
BRAKE VALVE,
(see page 10-10 for details)
32
9108-3306
1
CONNECTOR
33
8866-2105
2
ELBOW, 90 DEGREES (swivel nut)
34
8471-7853
1
HOSE ASSY
35
9105-3426
1
CONNECTOR
36
Ref
FLOW DIVIDER VALVE
(see page 10-19 for details)
37
9020-7856
1
COPPER GASKET
* 38
8866-2005
1
CONNECTOR (includes o-ring)
8859-1204
1
O-RING
KG
* Changed page number.
