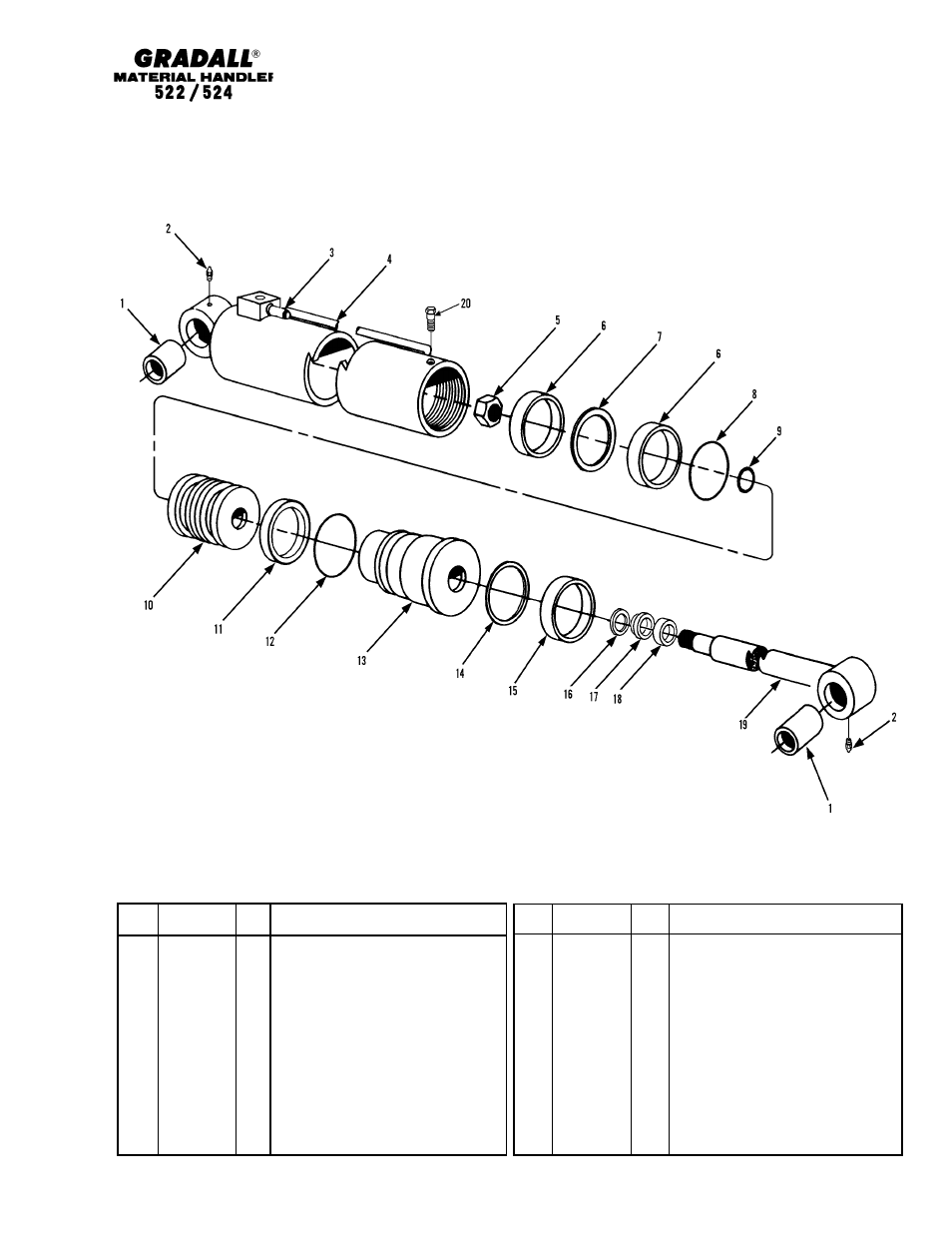

HYDRAULIC COMPONENTS
(9108-3513) Tilt Cylinder - Iowa
Starting Serial No. 0177382
Original Issue 10-97
Revised 6-27-07
Item
Part No.
Qty.
Description Of Part
9108-3513
1
TILT CYLINDER ASSY (includes all
items)
9108-4370
1
SEAL KIT (includes items 6 thru 9,
11, 12 & 14 thru 16)
1
9140-4352
2
BUSHING
2
9114-4128
2
GREASE FITTING
3
9108-3473
1
COUNTERBALANCE VALVE
4
9112-4076
1
CASE ASSY
5
9106-4017
1
LOCKNUT (torque to 650-750 ft.lbs.)
6
2
WEAR RING
7
1
SEAL
8
1
O-RING
9
1
O-RING
10
9104-4274
1
PISTON
Item
Part No.
Qty.
Description Of Part
11
1
BACK-UP RING
12
1
O-RING
13
9108-4371
1
GLAND
14
9108-4372
1
SNAP RING
15
9108-4373
1
WEAR RING
16
1
STEP SEAL
17
1
U-CUP
18
1
WIPER
19
9112-4078
1
SHAFT ASSY
20
9112-4096
1
SELF TAPPING SCREW, #10-24
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
10-3
JM
* Revised part number on item 1.
*
