Page 104

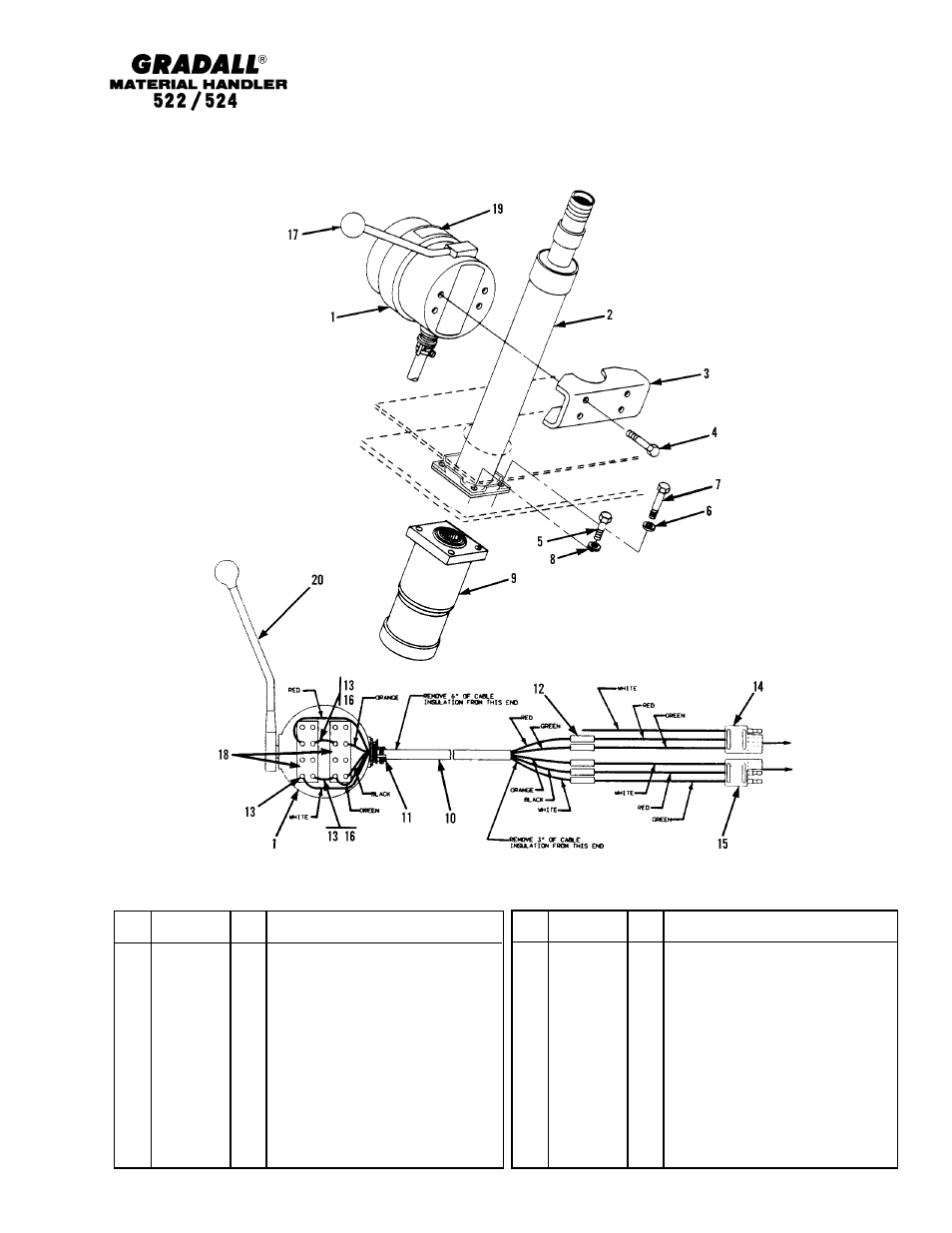

CONTROLS
Steering Column
Starting Serial No. 0177005
Original Issue 1-90
Revised 10-16-96
7-4
Item
Part No.
Qty.
Description Of Part
1
9108-3081
1
REVERSING MASTER SWITCH ASSY
(includes items 18, 19 & 20)
2
Ref
STEERING COLUMN
(see page 7-5 for details)
3
9108-1264
1
SHIFT BRACKET
4
8820-1008
4
HEX HD CAPSCREW, 1/4-20X1-3/4,
GR5
5
8820-1037
2
HEX HD CAPSCREW, 3/8-16X1-1/2,
GR5
6
8855-1011
2
LOCKWASHER, 3/8
7
8820-1033
2
HEX HD CAPSCREW, 3/8-16X3/4, GR5
8
8855-1011
2
LOCKWASHER, 3/8
9
Ref
STEERING ORBITROL,
(see page 10-20 for details)
Item
Part No.
Qty.
Description Of Part
10
9020-4057
30"
MULTIPLE CONDUCTOR CABLE
11
9108-3235
1
ROMEX CONNECTOR
12
8668-3480
5
BUTT CONNECTOR
13
8903-1196
9
PRESSURE TERMINAL
14
8348-3113
1
3-WAY CONNECTOR (female)
15
8348-3114
1
3-WAY CONNECTOR (male)
16
6"
16 GA. WIRE
17
9108-4240
1
KNOB
18
9108-4268
2
FORWARD/REVERSE SWITCH
19
9108-3428
1
FORWARD/REVERSE DECAL
20
9108-4345
1
HANDLE ASSY W/KNOB
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE
KG
* Added items 19 & 20
*
*
