Page 234
Item
Part No.
Qty.
Description Of Part
9108-5105
1
ETHER STARTING KIT (includes all
items)
1
9108-3361
1
QUICK START KIT
2
9002-7187
4
TY-WRAP
3
9108-1601
1
MOUNTING BRACKET
4
8820-1005
2
HEX HD CAPSCREW, 1/4-20 x 1, GR5
5
8855-1009
6
LOCKWASHER, 1/4
6
8850-1004
2
HEX NUT, 1/4-20
7
8820-1002
4
HEX HD CAPSCREW, 1/4-20 x 5/8, GR5
8
7716-3117
1
RUBBER GROMMET
9
8856-1107
3
FLAT WASHER, 1/4
Item
Part No.
Qty.
Description Of Part
10
1
BATTERY (Purchase locally)
11
9108-1517
1
BATTERY HOLDDOWN
12
9114-3163
1
TOGGLE SWITCH
13
8698-3195
2
WIRE CONNECTOR
14
8698-3202
1
WIRE CONNECTOR
15
7738-3470
1
BOOT
16
9114-3202
1
INSTRUCTION DECAL
17
8096-3058
1
2-WAY SHROUD CONNECTOR
18
8096-3057
1
2-WAY TOWER CONNECTOR
19
8096-3069
2
MALE PIN TERMINAL
20
8096-3068
2
FEMALE PIN TERMINAL
21
8096-3065
4
CABLE SEAL
OPTIONAL EQUIPMENT

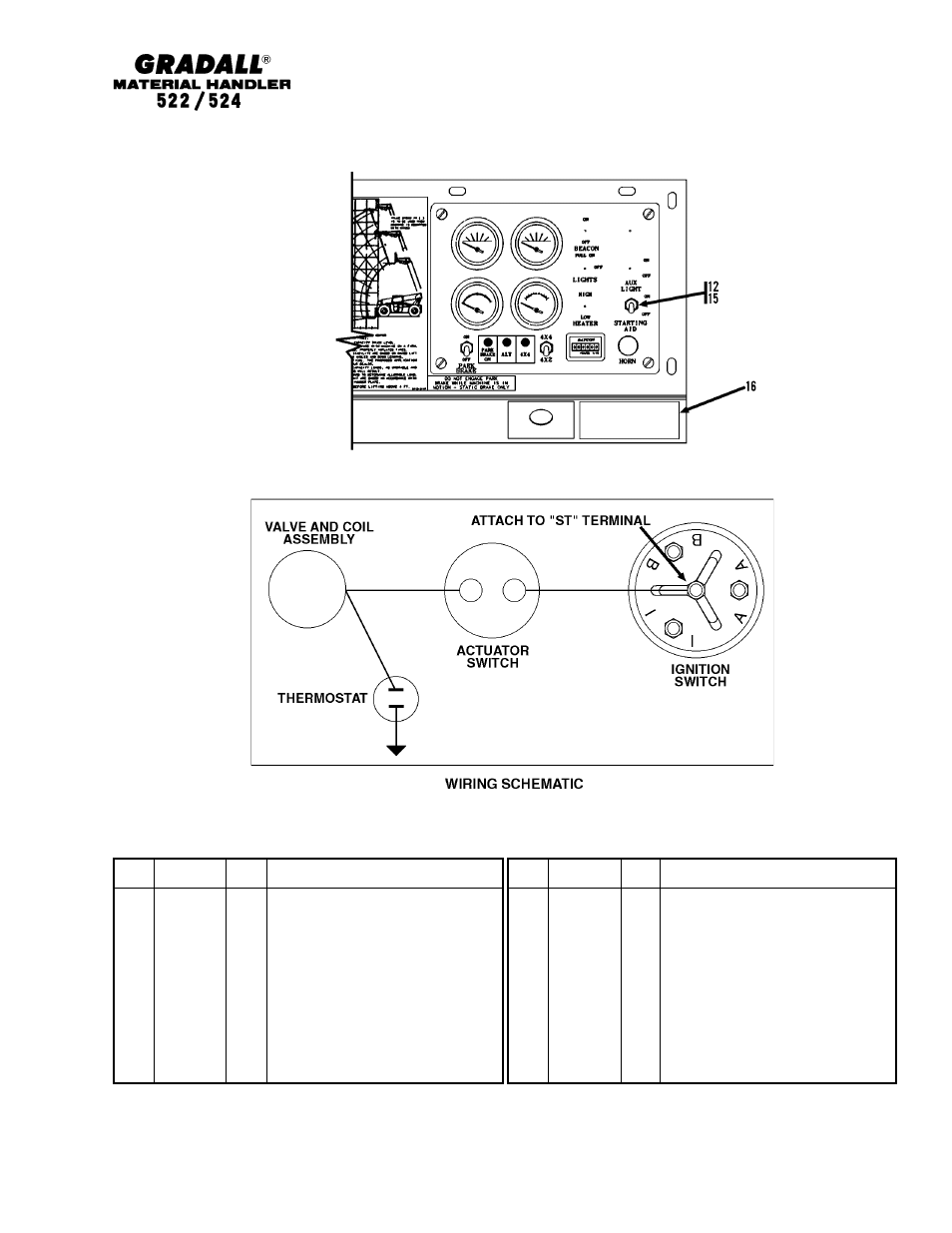

(9108-5105) Ether Starting Kit
Starting Serial No. 0177122
Original Issue 12-95
Revised 11-7-97
13-1
PCN 950068 MB
* Changed item 12, added items 15 thru 21.
*
*
*
*
*
*
*
*
