HYDRAULIC COMPONENTS

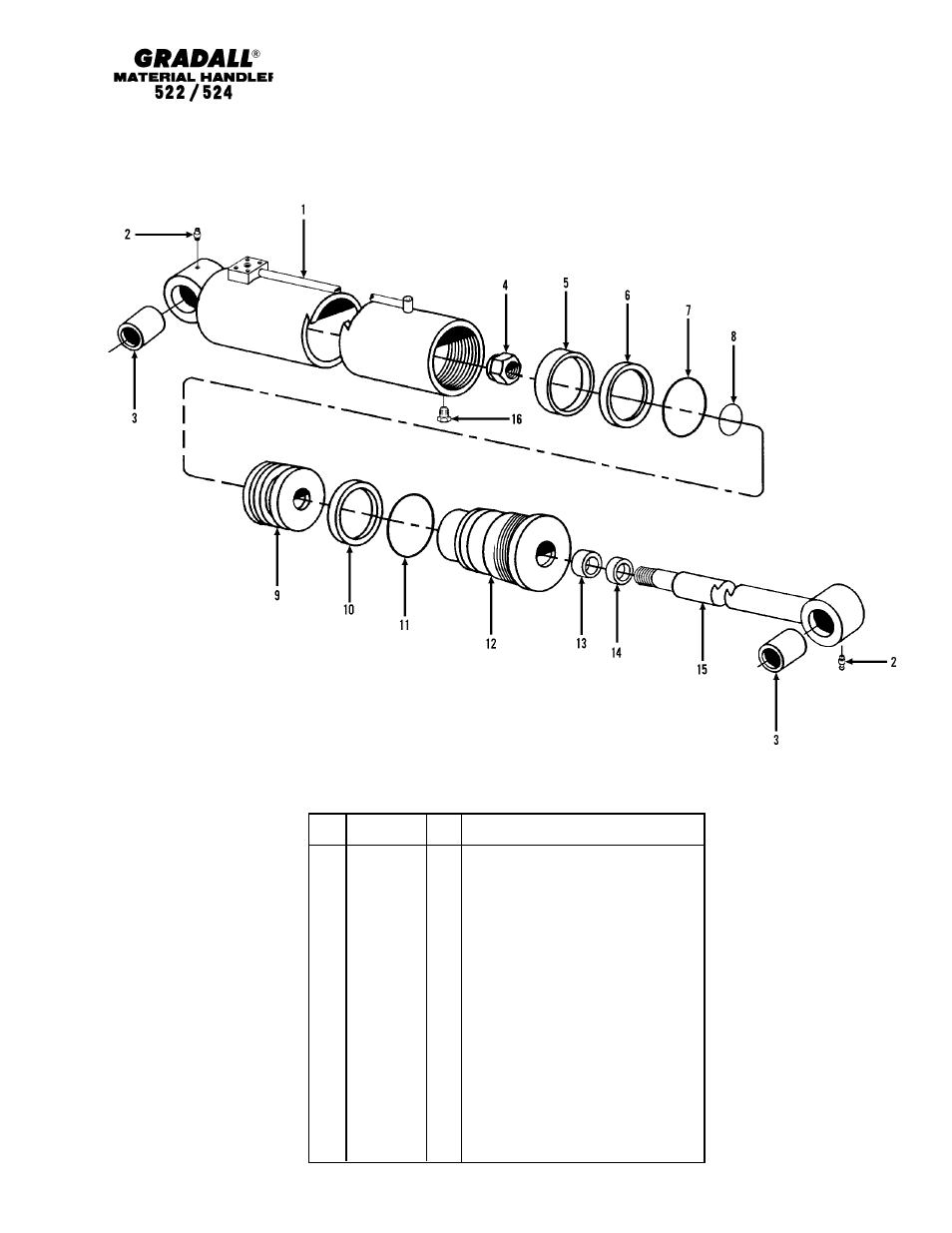

(9108-3520) Sway Cylinder Assembly
Starting Serial No. 0177165
Original Issue 3-96
10-5
Item
Part No.
Qty.
Description Of Part
9108-3520
1
SWAY CYLINDER ASSY
(includes all items)
9108-4189
Ref
SEAL KIT (includes items 5, 6, 7, 8, 10,
11, 13, & 14)
1
9108-4342
1
TUBE ASSY
2
8867-4343
2
LUBE FITTING, STRAIGHT, 1/4-28
3
9108-4176
4
BUSHING
4
9108-4184
1
NUT
5
9108-4219
1
WEAR RING
6
9108-4220
1
SEAL
7
9108-4221
1
O-RING
8
9108-4222
1
O-RING
9
9108-4186
1
PISTON
10
9108-4223
1
BACKUP RING
11
9108-4224
1
O-RING
12
9108-4188
1
GLAND
13
9108-4225
1
SEAL
14
9108-4226
1
WIPER
15
9108-4344
1
ROD ASSY
16
9108-4332
1
LOCKING SCREW
KG
