HYDRAULIC COMPONENTS

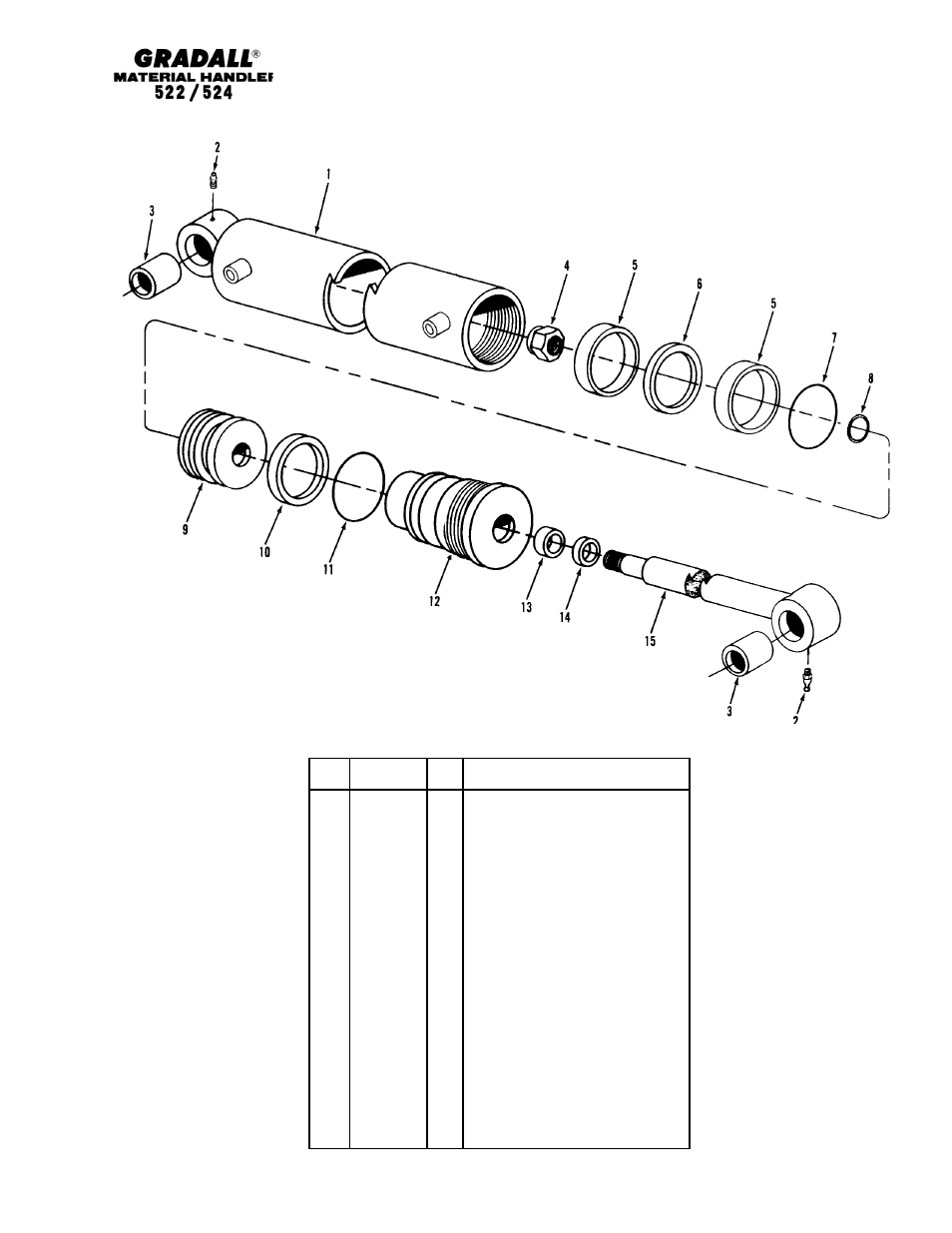

(9108-3285) Compensating Cylinder Assembly
Starting Serial No. 0177005
Original Issue 1-90
Revised 12-18-95
10-4
Item
Part No.
Qty.
Description Of Part
9108-3285
1
TILT COMPENSATING CYLINDER
ASSY
9108-4169
Ref
SEAL KIT,
(includes items 5, 6, 7, 8, 10, 11, 13 & 14)
1
9103-4168
1
TUBE ASSY
2
8867-1033
2
LUBE FITTING-STRAIGHT, 1/4-28
3
9108-4167
2
BUSHING
4
9103-4280
1
NUT
5
2
WEAR RING
6
1
SEAL
7
1
O-RING
8
1
O-RING
9
9108-4165
1
PISTON
10
1
BACK-UP RING
11
1
O-RING
12
9108-4282
1
GLAND
13
1
SEAL
14
1
WIPER
15
9108-4166
1
ROD ASSY
NOTE: ONLY ITEMS WITH PART
NUMBER ARE AVAILABLE FOR
SERVICE.
RS
* Enhanced artwork, changed nomenclature to match table of contents.
