2-1
MB

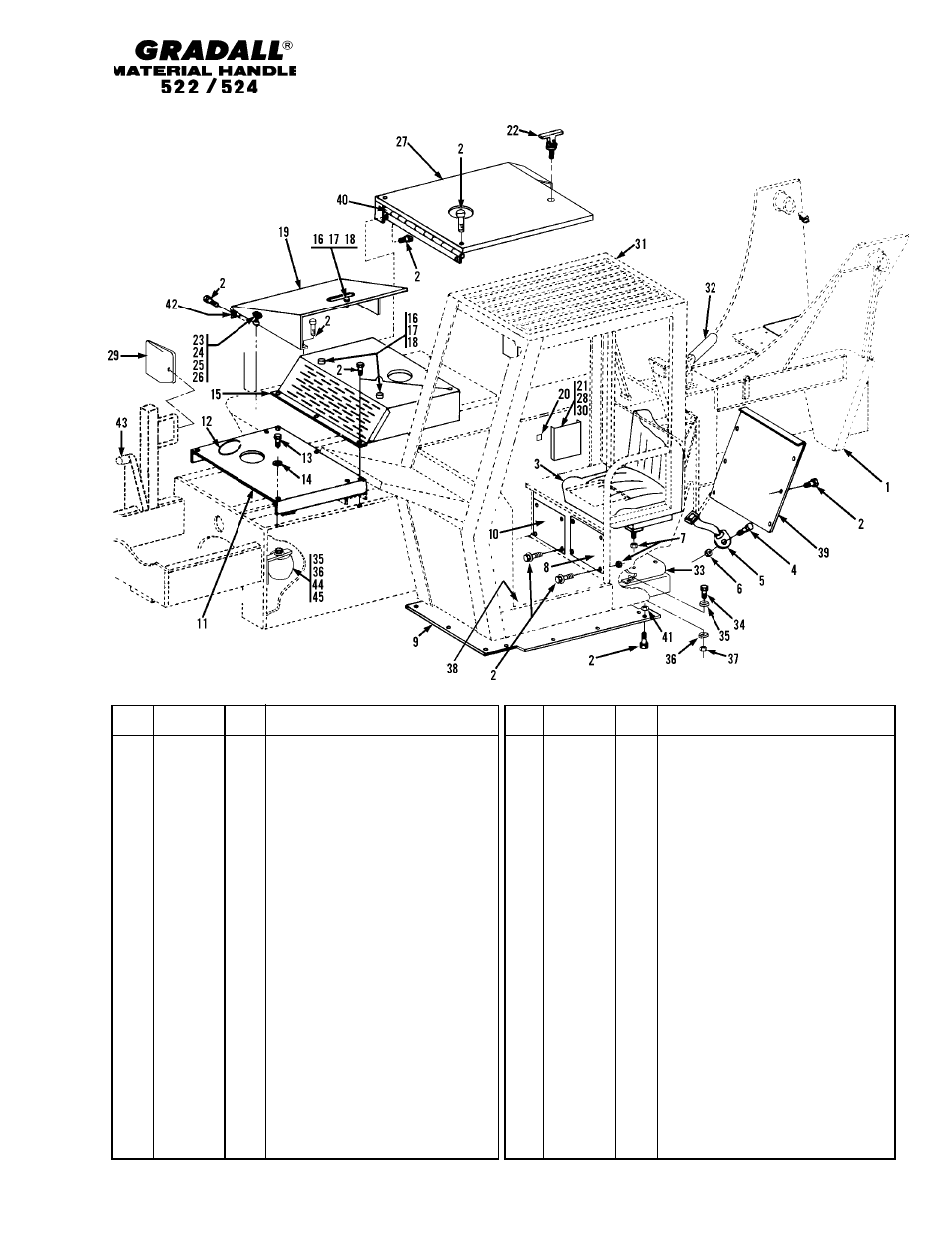

CHASSIS & ATTACHING PARTS
(9108-6155) Frame Shrouding & Trim
Starting Serial No. 0177368
Original Issue 1-98
Item
Part No.
Qty.
Description Of Part
1
9108-6155
1
FRAME WELDMENT (includes item 32)
2
7714-3003
34
WHIZ-LOK SCREW, 5/16-18X-5/8
3
9103-3485
1
SEAT (w/ armrest)
9112-4107
1
SLIDE ADJ. KIT
4
8820-1050
2
HEX HD CAPSCREW, 7/16-14 x 1
5
9103-3029
1
SEAT BELT
6
8850-1007
2
HEX NUT, 7/16-14
7
7714-3006
4
WHIZ-LOK NUT
8
9108-1475
1
HEATER COVER PLATE
9
9108-1709
1
BELLY PAN
10
9108-1329
1
VALVE ACCESS COVER
11
9108-1681
1
DECK COVER
12
9020-6194
AR
TRIM-LOK
13
9112-3124
4
WHIZ-LOC SCREW, 5/16-18 x 1/2
14
8856-1003
4
FLAT WASHER, 5/16
15
9108-6060
1
FRONT ENGINE COVER
16
9108-3173
5
RUBBER HD SCREW BUMPER
17
8855-1007
5
LOCKWASHER, #10
18
8850-1612
5
HEX NUT, #10-24
19
9108-6175
1
TANK COVER WELD (includes
item 42)
20
8521-1040
1
BUTTON PLUG
21
9103-3102
1
MANUAL HOLDER
22
9130-3021
1
T-HANDLE
23
9020-7458
3
DRAW LATCH
24
8830-1193
12
ROUND HD MACHINE SCREW,
#10-32 x 1/2
25
8855-1007
17
LOCKWASHER, #10
26
8850-1613
6
HEX NUT, #10-32
27
9108-1276
1
REAR SHEET METAL
28
8832-1030
4
SELF-TAP SCREW
29
8368-3291
1
MIRROR (includes attachment
hardware)
30
8855-4900
4
INTERNAL TOOTH WASHER
31
9114-6012
1
CAB WELDMENT
32
7149-2134
45"
SPLIT LOOM, 3/4
33
9112-1212
1
VALVE SUPPORT
34
8820-1020
4
HEX HD CAPSCREW, 5/16-18 x 1
35
8856-1003
5
FLAT WASHER, 5/16
36
8855-1010
5
LOCKWASHER, 5/16
37
8850-1005
4
HEX NUT, 5/16-18
38
9109-5024
1
FLOOR PLATE ASSY, 522
9108-5111
1
FLOOR PLATE ASSY, 524
39
9114-1198
1
REAR CAB COVER
40
9114-1218
1
HINGE
41
9114-3189
3
NUT RETAINER
42
9114-3307
1
HINGE
43
9114-3051
1
BUSHING
44
9114-3357
1
HORN ASSY (includes horn
& bracket)
9114-4438
1
HORN
9114-4439
1
BRACKET
45
8820-1017
1
HEX HD CAPSCREW , 5/16-18x5/8,
GR5
