OPTIONAL EQUIPMENT

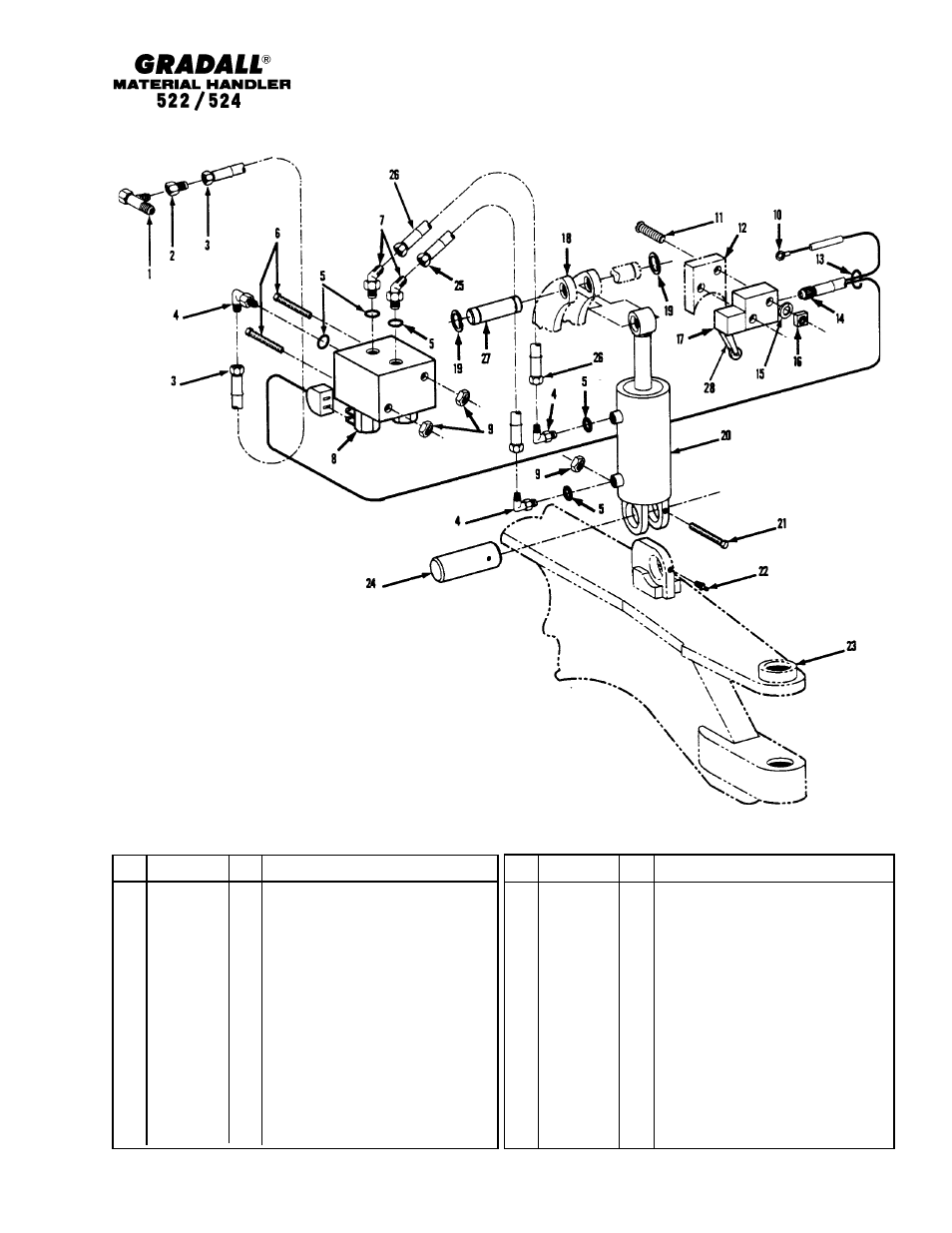

(9112-5007) Rear Axle Stabilizer Option
Original Issue 9-91
Revised 10-26-93
13-11
Item
Part No.
Qty.
Description Of Part
9112-5007
Ref
REAR AXLE STABILIZER
(includes all items)
1
8866-2244
1
SWIVEL NUT RUN TEE, 1" TUBE
2
9103-3230
1
REDUCER
3
8471-6426
1
HOSE ASSY
4
8866-2065
3
ELBOW, 90 DEGREES (includes item 5)
5
8859-1205
5
O-RING
6
8320-1073
2
HEX HD CAPSCREW, 3/8-16X4-1/2, GR5
7
8866-2085
2
ELBOW, 45 DEGREES (includes item 5)
8
9111-3003
1
STABALIZER
9
8852-1206
3
HEX LOCKNUT, 3/8-16
10
9111-1002
1
JUMPER WIRE
11
8830-1099
2
ROUND HD MACHINE SCREW,
#10-24X 1-3/4
12
9112-1018
1
BRACKET
13
9002-7187
4
TY-RAP
14
9104-5034
1
BOOM SWITCH HARNESS
15
8855-1007
2
LOCKWASHER, #10
16
9104-3199
2
SQUARE NUT
17
9104-3123
1
SWITCH (includes item 28)
18
9112-1013
1
STABILIZER BRACKET
19
8858-1140
2
SNAP RING
20
Ref
STABALIZER CYLINDER
(see page 13-12 for details)
21
8820-1044
1
HEX HD CAPSCREW, 3/8-16X3-1/4,
GR5
22
8867-1008
1
LUBE FITTING, STRAIGHT 1/4-28
23
9104-6114
1
REAR AXLE WELDMENT
24
9112-1017
1
PIN
25
8471-7888
1
HOSE ASSY
26
8471-7887
1
HOSE ASSY
27
9104-1227
1
PIN
28
9104-4475
1
LEVER/ ROLLER ASSY
Item
Part No. Qty.
Description Of Part
