BRAKES

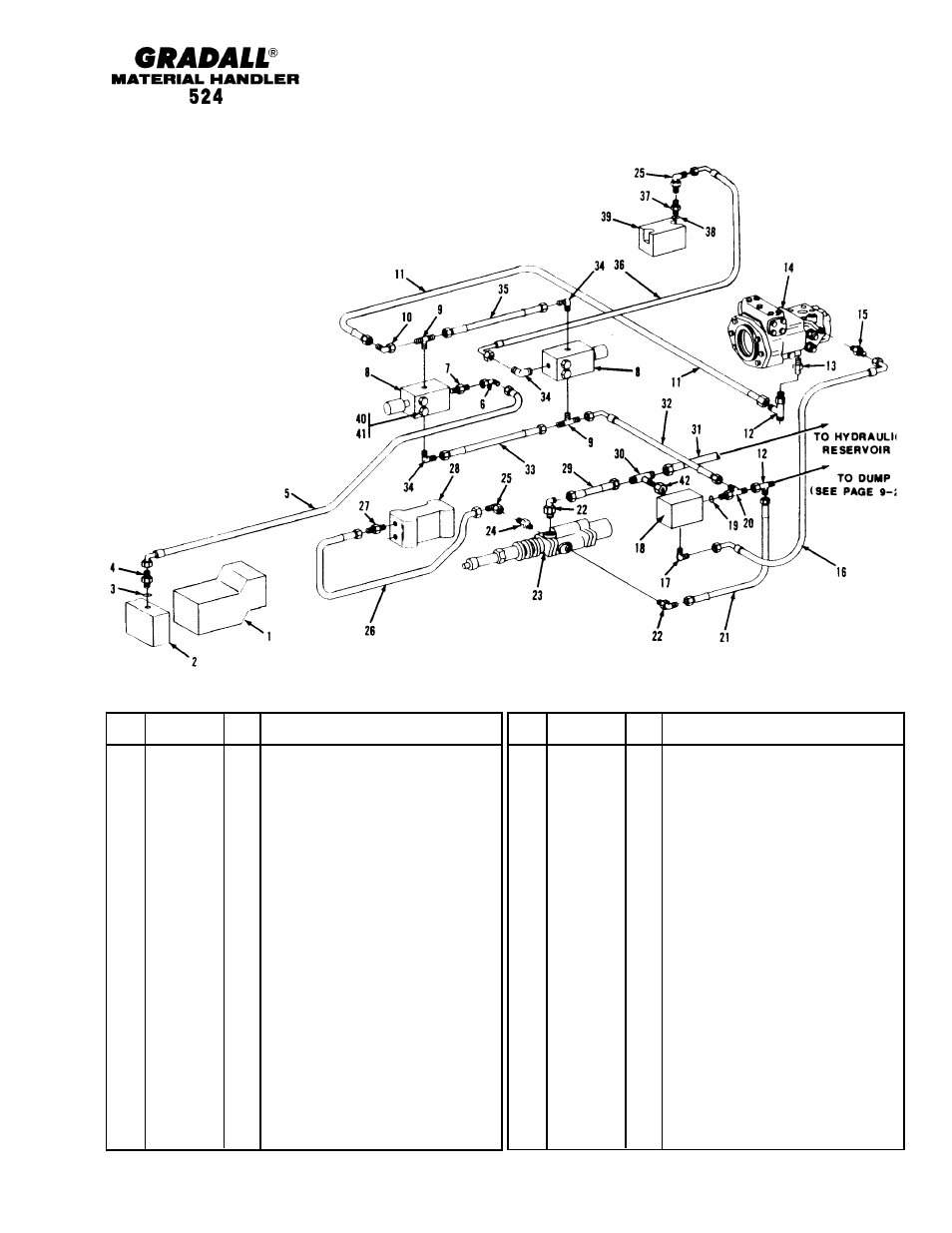

Inching & Parking Brake Lines (524)
Starting Serial No. 0177005
Original Issue 1-90
Revised 3-13-96
8-5
Item Part No. Qty. Description Of Part
1 Ref FRONT DRIVE MOTOR
(see page 10-16 for details)
2 Ref BRAKE ASSY (see page 6-4 for details)
3 8859-1202 1 O-RING
4 8866-2003 1 CONNECTOR (includes item 3)
5 8471-7869 1 HOSE ASSY
6 8866-2103 1 ELBOW, 90 DEGREES (swivel nut)
* 7 8866-2017 1 CONNECTOR (includes o-ring)
8859-1204 1 O-RING
8 Ref SOLENOID VALVE
(see page 10-11 for details)
9 9108-3212 2 MALE BRANCH TEE
10 8866-2105 1 ELBOW, 90 DEGREES (swivel nut)
11 8471-7852 1 HOSE ASSY
12 8866-2239 2 SWIVEL NUT RUN TEE, 3/8 TUBE
13 9105-3426 1 CONNECTOR
14 Ref HYDROSTATIC TRANSMISSION ASSY
(see page 10-15 for details)
15 9108-3213 1 CONNECTOR
16 8471-7817 1 HOSE ASSY
17 8866-1109 1 ELBOW, 90 DEGREES`
18 Ref INCHING VALVE
(see page 10-13 for details)
19 8859-1204 1 O-RING
20 8866-2139 1 RUN TEE (includes item 19)
21 8471-7890 1 HOSE ASSY
KG
* Changed page number
Item Part No. Qty. Description Of Part
22 9108-3310 2 ELBOW, 90 DEGREES
23 Ref BRAKE VALVE ASSY (see page
10-10 for details)
24 9108-3306 1 CONNECTOR
25 8866-2105 2 ELBOW, 90 DEGREES(swivel nut)
26 8471-7853 1 HOSE ASSY
27 9105-3426 1 CONNECTOR
28 Ref FLOW DIVIDER ASSY (see page
10-9 for details)
29 8471-7890 1 HOSE ASSY
30 8866-1305 1 UNION TEE, 3/8 TUBE
31 8471-6358 1 HOSE ASSY
32 8471-7893 1 HOSE ASSY
33 8471-7890 1 HOSE ASSY
34 8866-2064 3 ELBOW, 90 DEGREES(includes
o-ring)
8859-1204 1 O-RING
35 8471-7537 1 HOSE ASSY
36 7713-3430 1 HOSE ASSY
37 8866-2005 1 CONNECTOR (includes item 38)
38 8859-1204 1 O-RING
39 9112-3026 1 DIFFERENTIAL LOCK VALVE
(9108-3424)
40 8820-1008 4 HEX HD CAPSCREW, 1/4-20X1-3/4,
GR5
41 8855-1009 4 LOCKWASHER, 1/4
42 8866-1364 1 CAP
