10-1
HYDRAULIC COMPONENTS

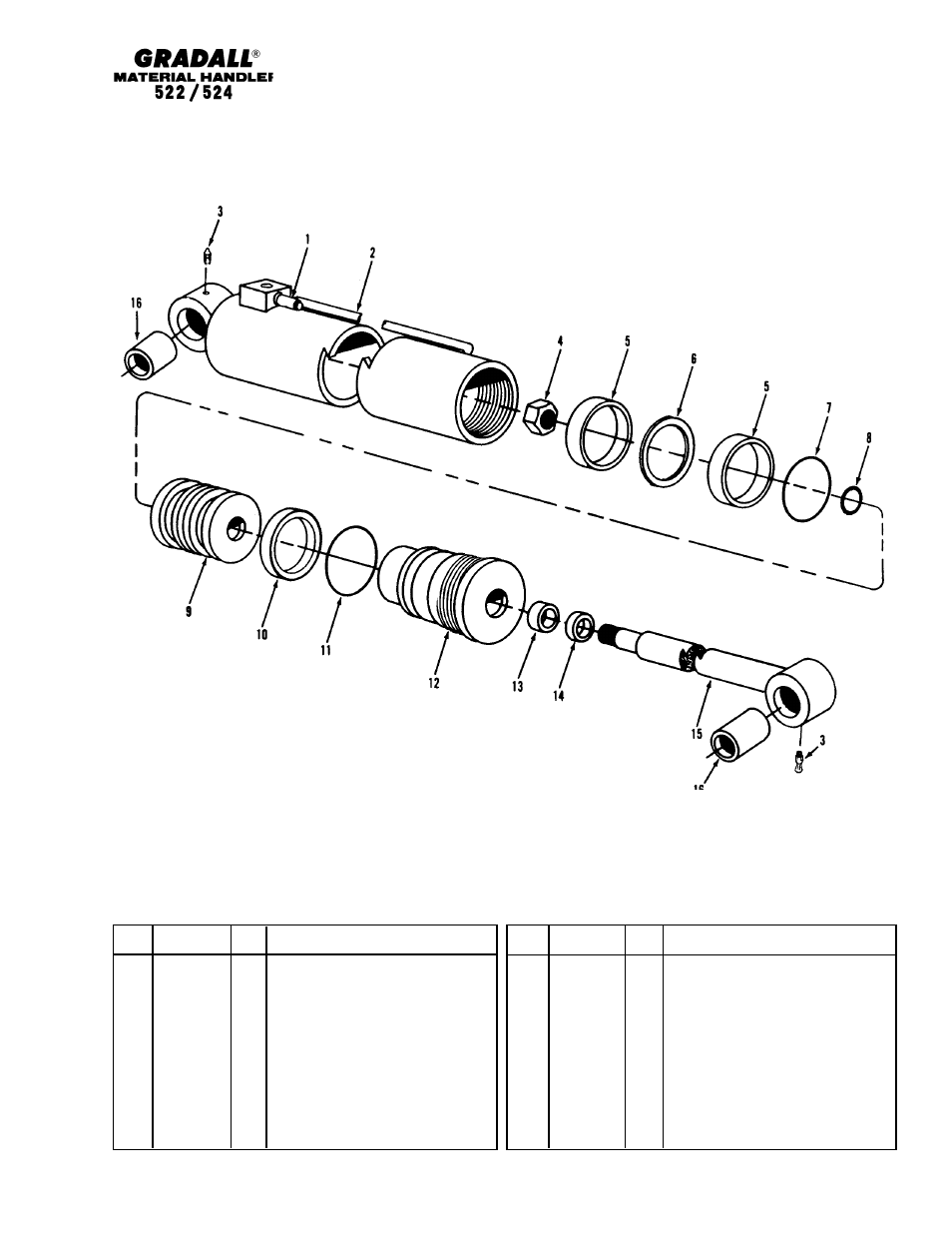

(9108-3283) Lift Cylinder Assembly
Starting Serial No. 0177005
Original Issue 1-90
Revised 12-18-95
Item Part No. Qty. Description Of Part
9108-3283 1 LIFT CYLINDER ASSY
(includes all items)
9108-4173 Ref SEAL KIT,
(includes items 5, 6, 7, 8, 10, 11, 13 & 14)
1 9103-3430 1 COUNTERBALANCE VALVE
2 9108-4170 1 TUBE ASSY
3 8867-1033 2 LUBE FITTING, STRAIGHT, 1/4-28
4 9103-4280 1 NUT
5 2 WEAR RING
6 1 SEAL
7 1 O-RING
8 1 O-RING
9 9103-4281 1 PISTON
10 1 BACK-UP RING
11 1 O-RING
12 9108-4172 1 GLAND
13 1 SEAL
14 1 WIPER
15 9108-4171 1 ROD ASSY
16 9108-4167 2 BUSHING
NOTE: ONLY ITEMS WITH PART
NUMBER ARE AVAILABLE FOR
SERVICE.
Item Part No. Qty. Description Of Part
RS
* Enhanced artwork, changed nomenclature to match table of contents.
