Page 308
13-39
LK
Item
Part No.
Qty.
Description Of Part
1
9045-3031
1
CARRIAGE ASSY, 48", (includes all
items)
9045-3032
1
CARRIAGE ASSY, 66", (includes all
items)
2
9103-4410
1
SHAFT, (48")
9103-4432
1
SHAFT, (6")
3
9103-4376
4
THRUST ROLLER
4
9103-4411
2
NUT
5
8033686
2
LOCKWASHER
6
9103-4413
2
NUT
7
9103-4377
2
FLAT HD SCREW
8
9103-4414
2
GREASE FITTING
9
9103-4415
2
BOLT
10
9103-4416
2
END RING
OPTIONAL EQUIPMENT

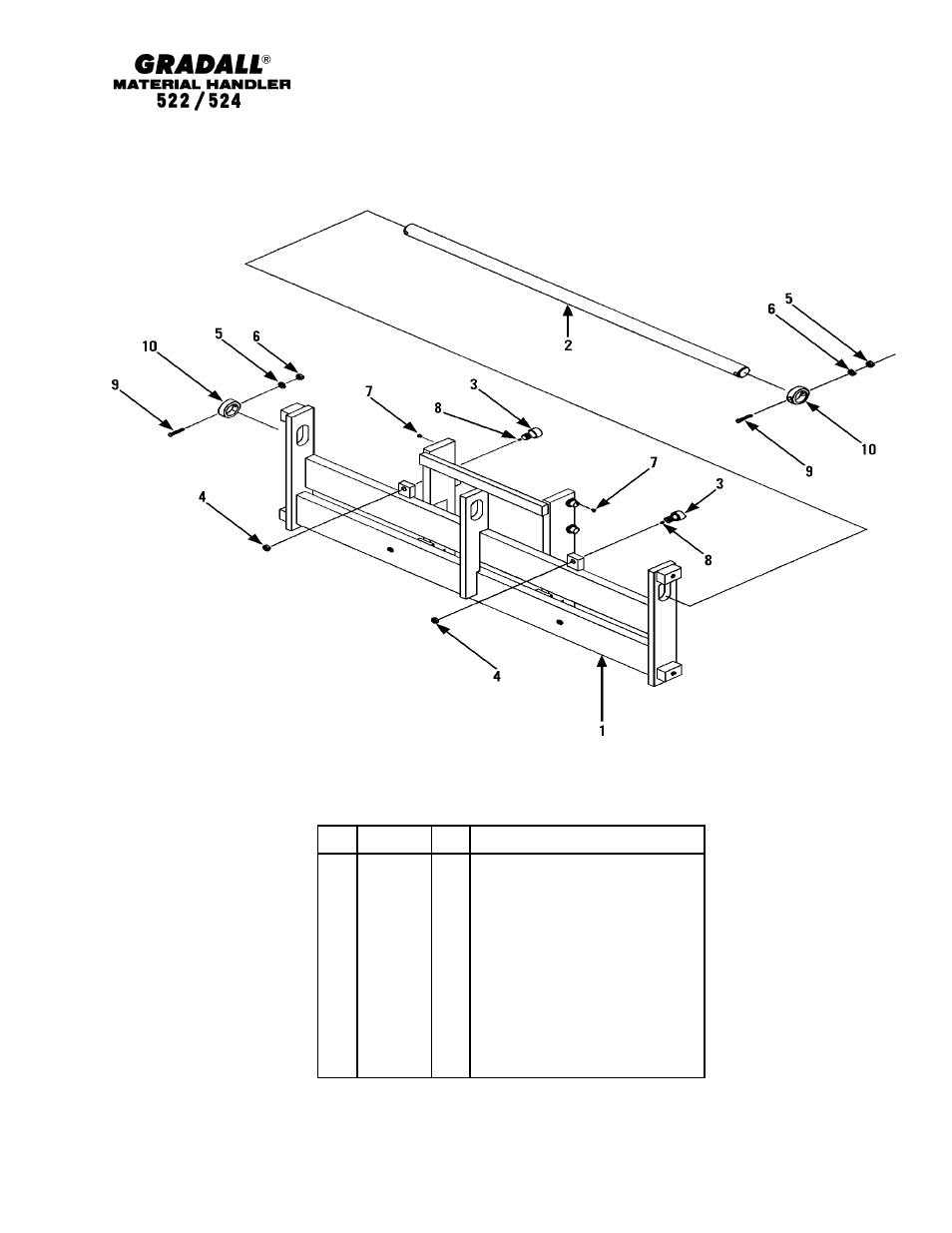

(9045-3031) and (9045-3032) Carriage Assemblies
Starting Serial No. 0355001
Original Issue 8-99
Revised 4-23-07
* Changed part number on item 5.
*
