11-6
Item
Part No.
Qty.
Description Of Part
9109-3037
1
GAUGE PANEL (includes all items)
1
9136-4004
1
PANEL ASSY (includes front & back
plates, acrylic lens & std. labels)
2
9136-4005
1
RUBBER BOOT
3
9136-4008
1
WIRE HARNESS
4
9114-3114
1
PARK BRAKE SWITCH
5
9136-4006
1
HOURMETER
6
9136-4007
1
4-IN-1 GAUGE (oil, fuel, temp, volts)
ELECTRICAL

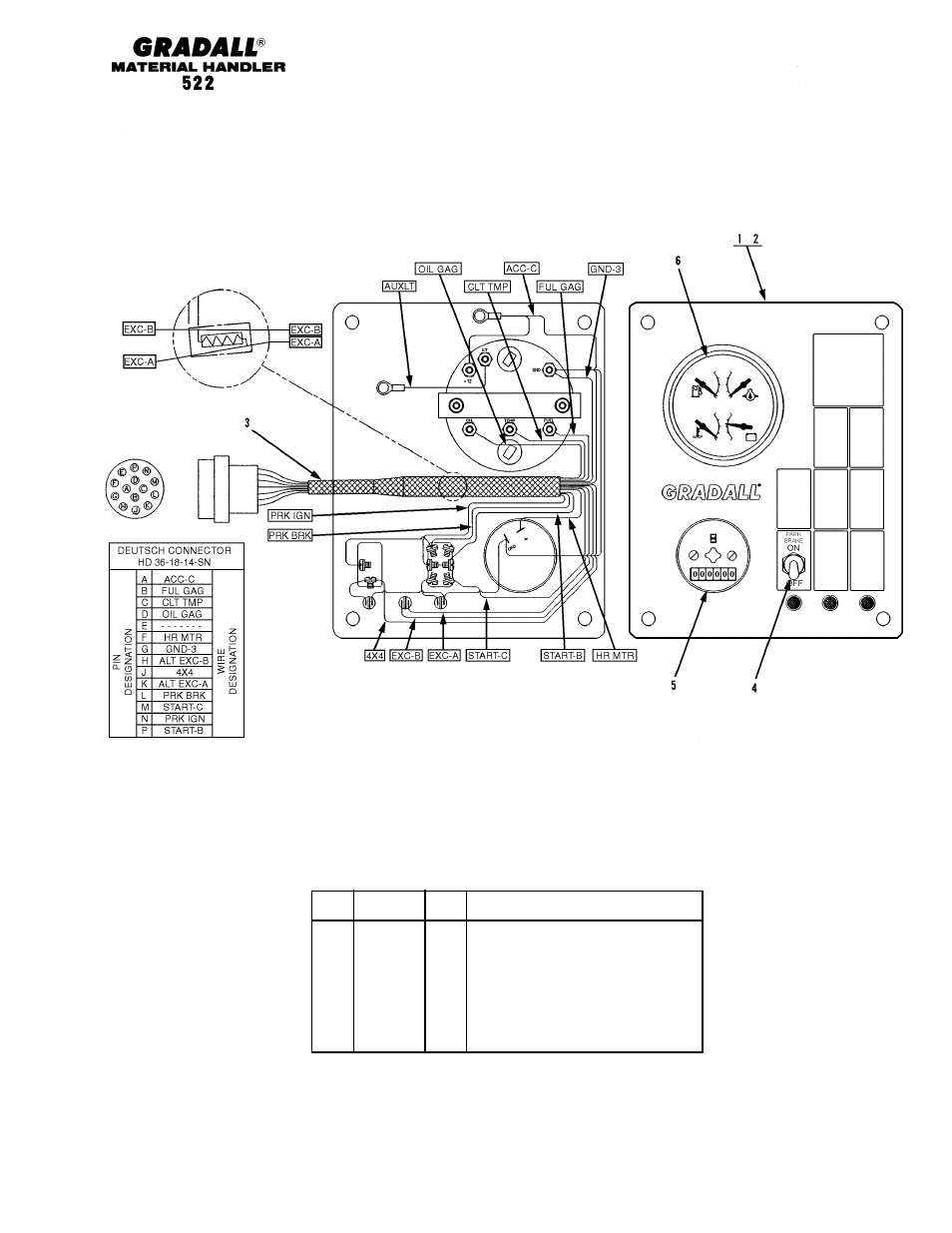

(9109-3037) Gauge Panel Assembly
Starting Serial No. 0177368
Original Issue 1-98
