OPTIONAL EQUIPMENT

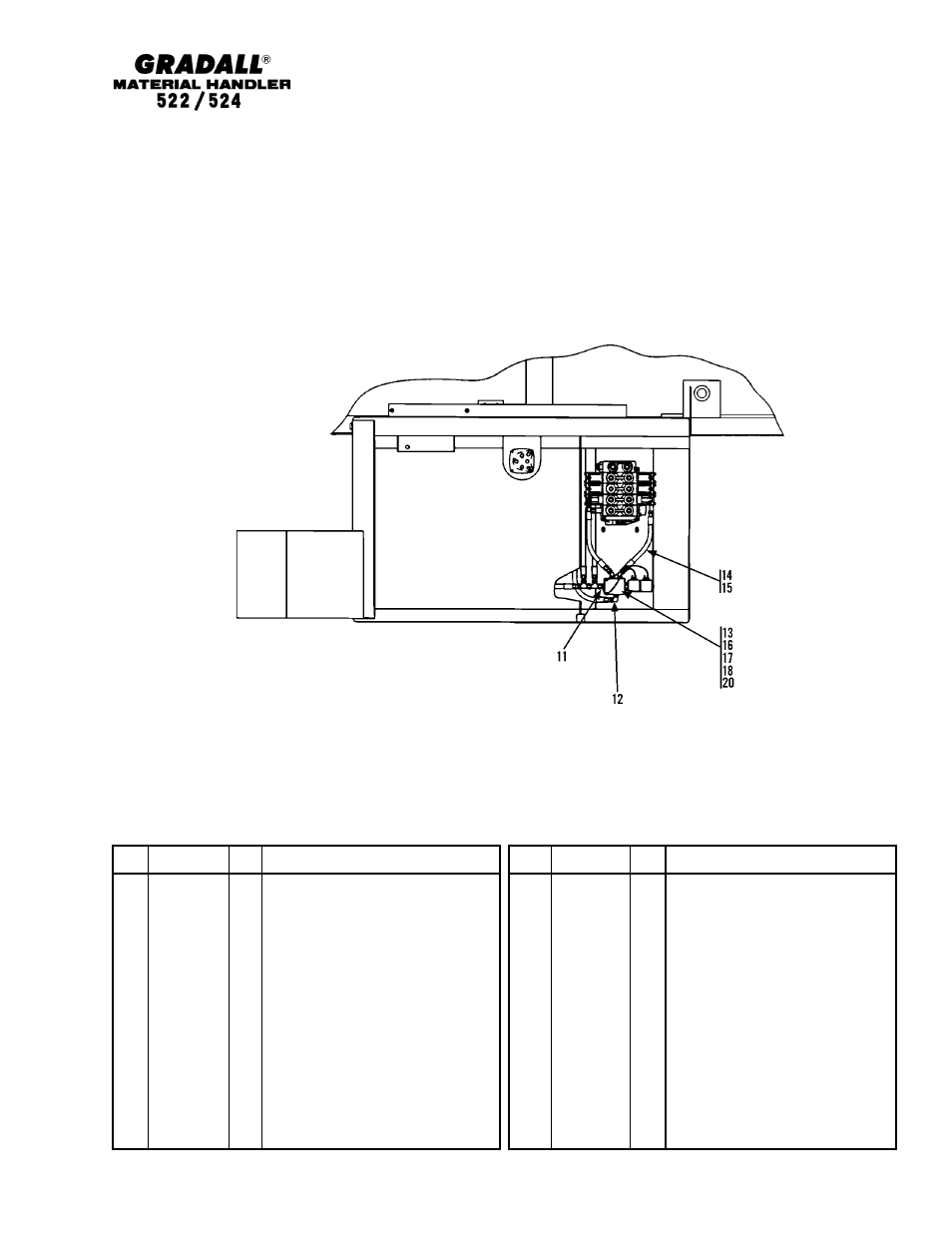

(9108-5072) Tilt on Joystick
Original Issue 11-93
11-14-97
13-27
Item
Part No.
Qty.
Description Of Part
9108-5072
Ref
TILT ON JOYSTICK
(includes all items)
1
8866-2239
2
SWIVEL NUT RUN TEE (3/8 TUBE)
2
8471-8221
1
HOSE ASSY
3
9108-3212
1
MALE BRANCH TEE
4
9130-3041
1
BOOM CONTROL DECAL
5
8096-3060
1
JUMPER WIRE (black)
6
8096-3069
1
JUMPER WIRE(yellow)
7
8096-3067
1
JUMPER WIRE (red)
8
9020-7719
2
JUMPER WIRE (green)
9
9130-1020
1
SPACER
10
9130-1064
1
HYDRAULIC VALVE POSITIONER KIT
11
9108-5071
1
MODIFIED CONNECTOR
12
8866-2064
2
ELBOW, 90 DEGREES (includes o-ring)
8859-1204
2
O-RING
13
9130-3038
1
SOLENOID VALVE
14
8866-2084
2
ELBOW, 45 DEGREES (includes o-ring)
8859-1204
2
O-RING
Item
Part No.
Qty. Description Of Part
15
8471-7537
2
HOSE ASSY
16
8820-1011
2
HEX HD CAPSCREW, 1/4-20X2-1/
2,GR5
17
8855-1004
2
LOCKWASHER, 1/4
18
8850-1004
2
HEX NUT, 1/4-20
19
8866-2174
1
HEX HD PLUG (includes o-ring)
8859-1204
1
O-RING
20
9130-1065
1
SPACER
21
9108-3425
1
WORK PORT RESTRICTOR (.062)
22
9108-3426
1
WORK PORT RESTRICTOR (.070)
23
8866-2005
1
CONNECTOR (includes o-ring)
8859-1204
1
O-RING
24
9130-3076
1
JOYSTICK HARNESS
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.
*
* Changed part number on items 5, 6, 7 & 24.
*
*
*
PCN 940411 MB
