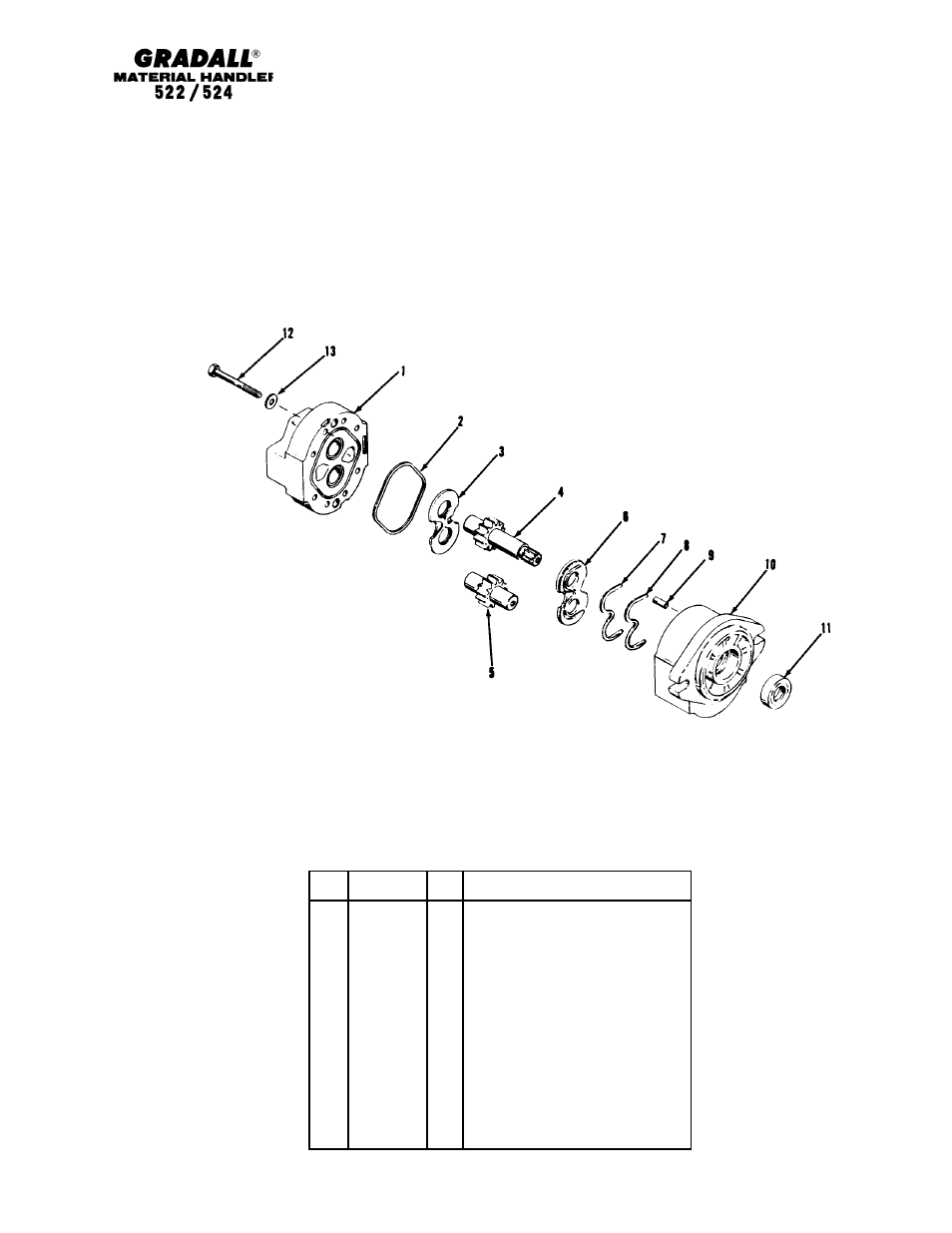

HYDRAULIC COMPONENTS
Main Hydraulic Pump
Starting Serial No. 0177005
Original Issue 1-90
Revised 11-90
10-14
Item Part No. Qty. Description Of Part
9108-3296 1 MAIN HYDRAULIC PUMP
9108-4218 1 SEAL KIT
(includes items 2, 3, 6, 7, 8, & 11)
1 9108-4144 1 REAR COVER
2 9108-4137 1 SEAL
3 9108-4138 1 THRUST PLATE
4 9108-4146 1 DRIVE GEAR
5 9108-4145 1 DRIVEN GEAR
6 9108-4139 1 WEAR PLATE
7 9108-4140 1 SEAL
8 9108-4142 1 SEAL SPACER
9 9108-4143 2 DOWEL PIN
10 9108-4147 1 BODY
11 9108-4141 1 SHAFT SEAL
12 9108-4135 8 HEX HD CAPSCREW
13 9108-4136 8 FLAT WASHER
