USER’S GUIDE
5-32

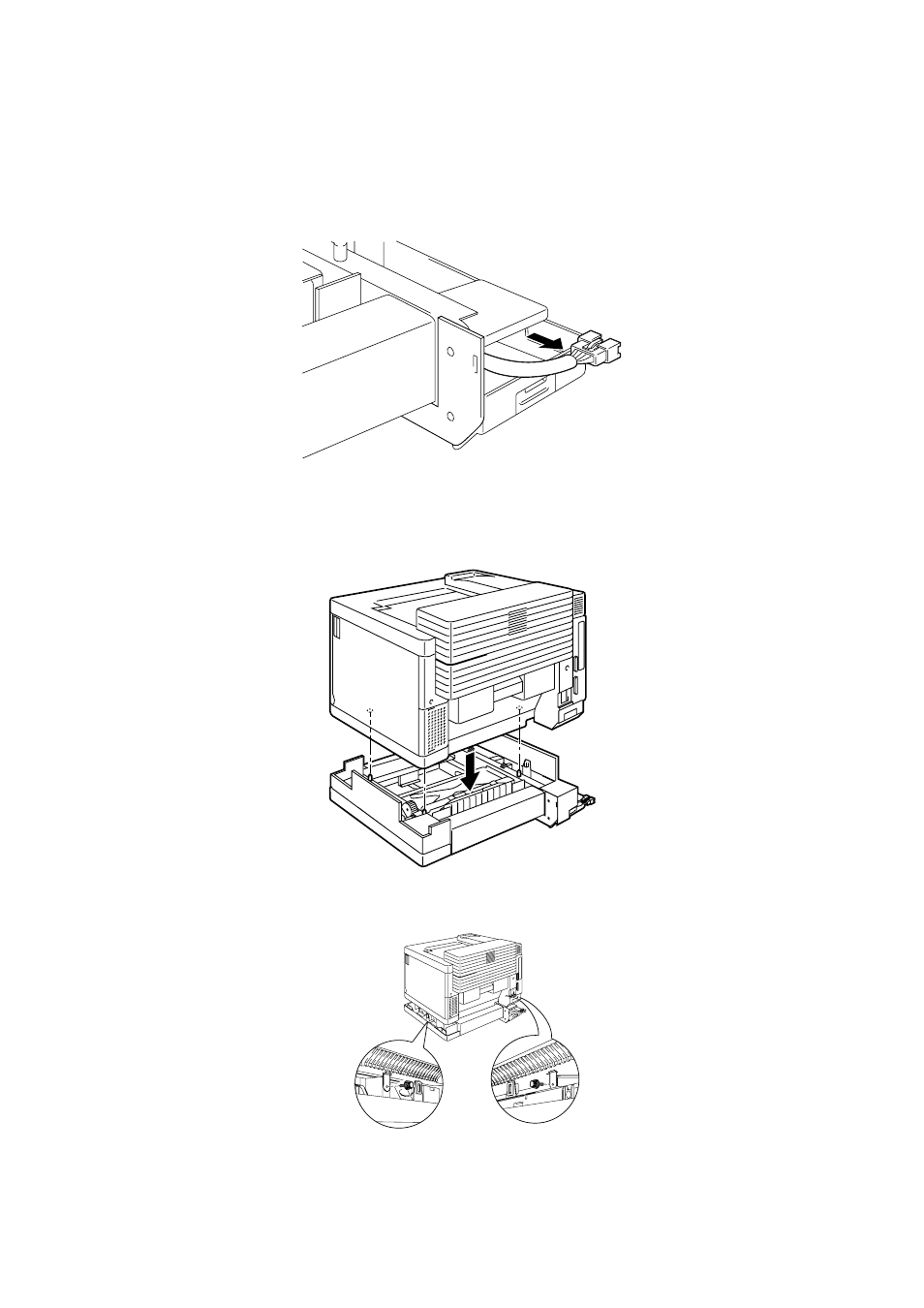

3. Pull out the connection cable located at the left rear side of the Lower
Tray Unit.
Fig. 5-39 Pulling out the Connection Cable
4. Check the three alignment pins on the Lower Tray Unit. Use two
people to lift the printer and place it onto the Lower Tray Unit. Be
sure to use the handholds located at the bottom four corners of the
printer. Check to ensure that the pins align correctly into the printer.
Fig. 5-40 Place the Printer on the Lower Tray Unit
5. Insert the Metal Clips into both sides of the Lower Tray Unit and
secure with screws.
Fig. 5-41 Inserting the Metal Clips and Securing with Screws
