USER’S GUIDE
5-10
4. Take the Fuser Cleaner out of the Fusing Unit by holding the handle
of the Fuser Cleaner as shown below:

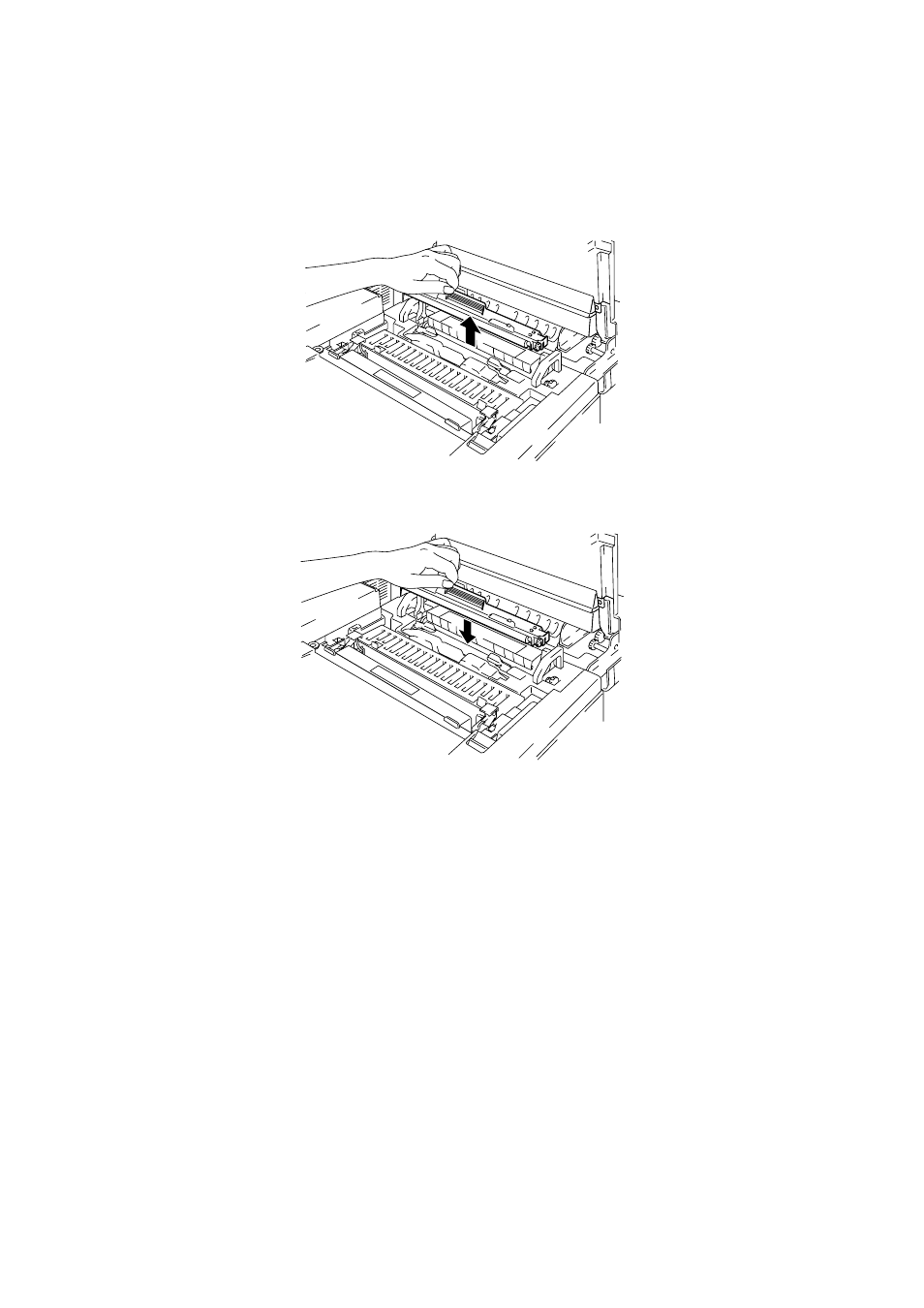

Fig. 5-9 Removing the Fuser Cleaner
5. Install the new Fuser Cleaner into the guide with the roller side facing
you.
Fig. 5-10 Installing the Fuser Cleaner
6. Lock the Fuser Cleaner with the Oil Bottle Lock Levers.
7. Close the Top Cover.
8. Press the Power button and turn the printer On.
9. Press the Sel button and take the printer Off Line.
10. Press the Reset button while holding down the Shift button.
11. When you see “RESET PRINTER” on the LCD panel, press the ▲
(UP) or ▼ (DOWN) button and select “RESET PARTS LIFE”. Press
the
Set button and select “FC ROLLER” with the ▲ (UP) or ▼
(DOWN) button.
12. Press the Set button, the printer is now On Line.
