Creating a Macro
31
10.2 Adding Commands to the Macro
Each room controller includes a different set of commands, as defined in
Table 1 . The following sections describe how to write a new command for the
different ports.
10.2.1 A Relay Command – Turn Lights ON
To write a relay command on an RC button (for example, turn the lights on),
do the following:
1. Open the Kramer RC Configuration main window.
2. Select a button from the RC buttons layout.
The button turns green.
3. Click the New button (in the Button Macro area) to add a new command to the
Button Macro.
4. In the RC command area, write the command description (for example, Lights
ON).
5. Select the Port
1
6. Select the relay command (for example, Close).
you want to assign (for example, RELAY_1)

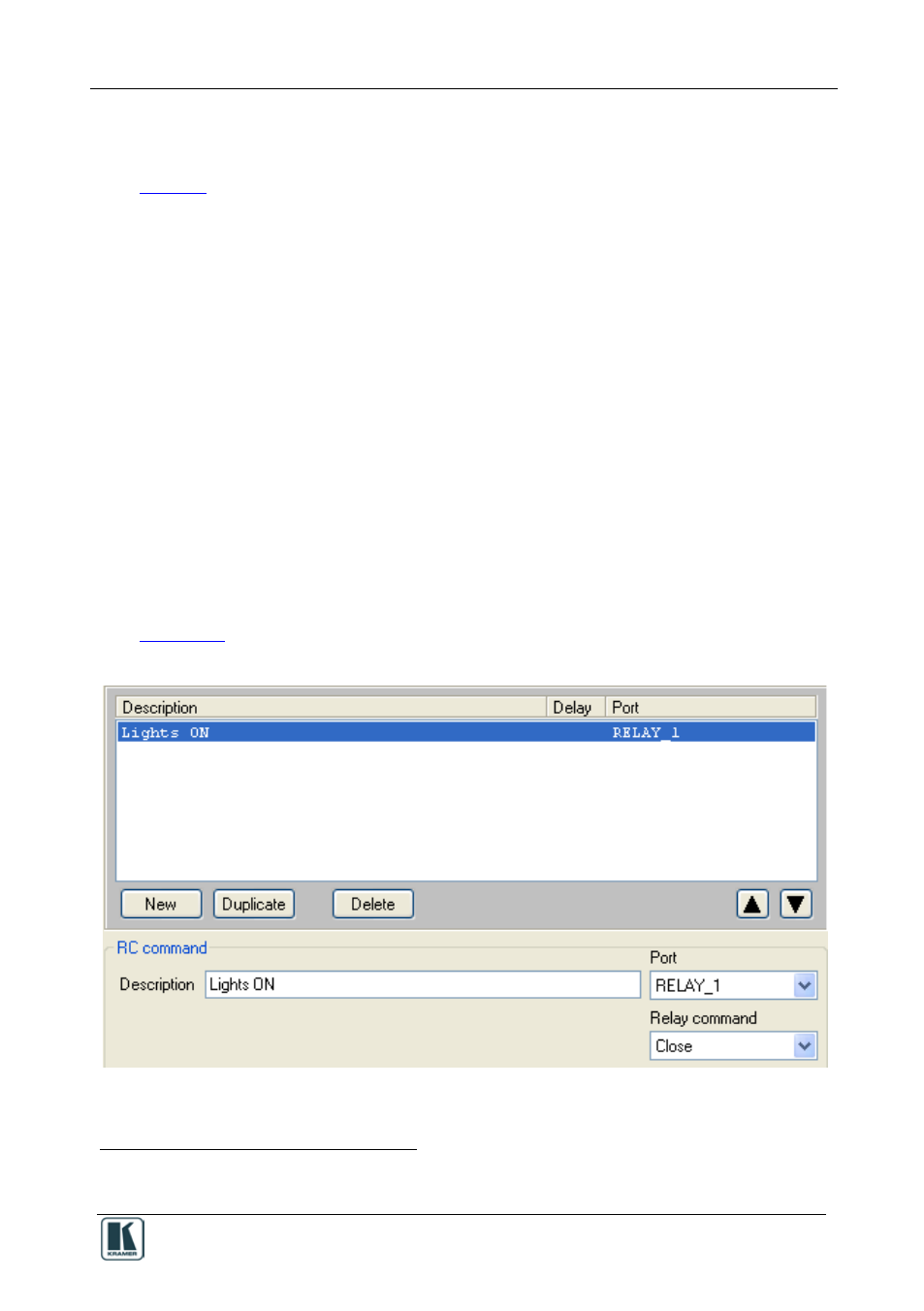

Figure 32 illustrates the RC Command area as it appears after writing the
command:
Figure 32: Lights ON RC Command
1 When selecting a relay as a port, the Vendor, Device and Revision drop down boxes disappear and the Driver command
drop down box is replaced with a Relay Command drop down box
