Creating a Macro
27

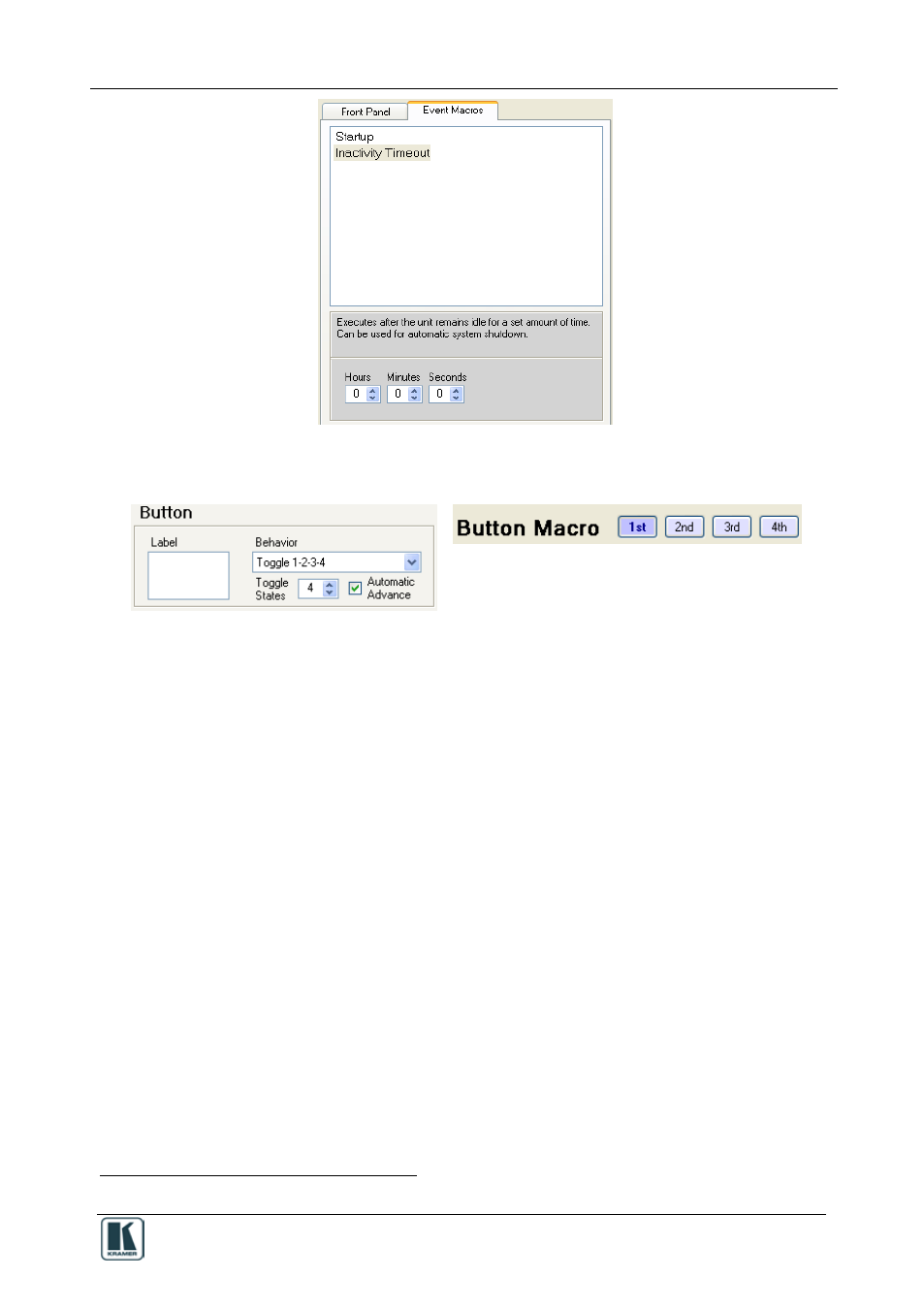

Figure 24: Event Macros Tab
Figure 25: Using the Toggle 1-2-3-4 Behavior
10 Creating a Macro
A macro includes a sequence of commands assigned to a selected button on
the RC device
These commands can be derived from:
• Relay Open and Close commands
• The driver files of the peripheral devices that are to be controlled by the
RC device
• IR remote control transmitters, via the IR Learner feature
To create a sequence of commands:
1. Press a button in the Front Panel Keypad tab to select the button to which you
want to write the macro. The button turns green:
1 For RC devices that have the IR learner feature
