Connecting the Video Matrix Switcher
27
6. Select Use the following IP Address, and fill in the details as shown in
Figure 12.
7. Click OK.

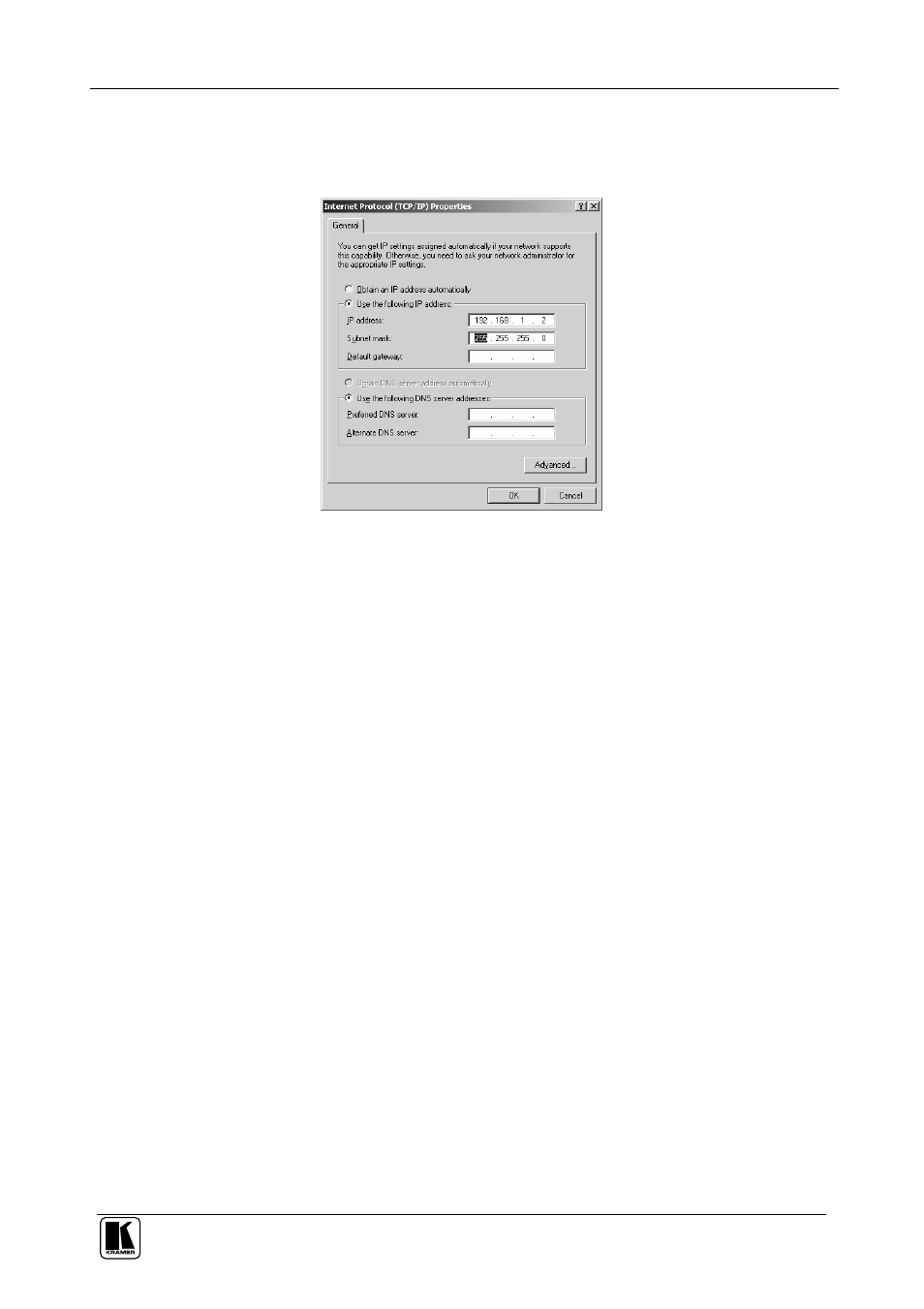

Figure 12: Internet Protocol (TCP/IP) Properties Window
6.6.2 Connecting the ETHERNET Port via a Network Hub (Straight-
Through Cable)
You can connect the Ethernet port of the VS-3232V to the Ethernet port on a
network hub or network router, via a straight-through cable with RJ-45
connectors.
6.6.3 Control Configuration via the Ethernet Port
To control several units via the Ethernet, connect the Master unit
(Machine # 1) via the Ethernet port to the LAN port of your PC. Use your PC
initially to configure the settings (see section 6.6).
