Connecting the Video Matrix Switcher
14
6.2.1 Configuring a 32x32 Y/C Switcher (Two Units)
You can configure a 32x32 video matrix switcher for s-Video (Y/C), by
combining two VS-3232V switchers. Note that the machine number on both
units must be identical.
Although in the example in Figure 4 only one input
1 and one output 2 are
connected, you can connect all the inputs and outputs in the same way to
create a 32x32 Y/C switcher.
Connect the communication line between the two switchers via the RS-232 or
RS-485 control interface as section 6.4 describes.
s-Video Player s-Video Display
Y Channel Switcher - Master ( ) Set DIP 6 to OFF
C Channel Switcher - Slave ( ) set DIP 6 to ON
Y
Y
C
C

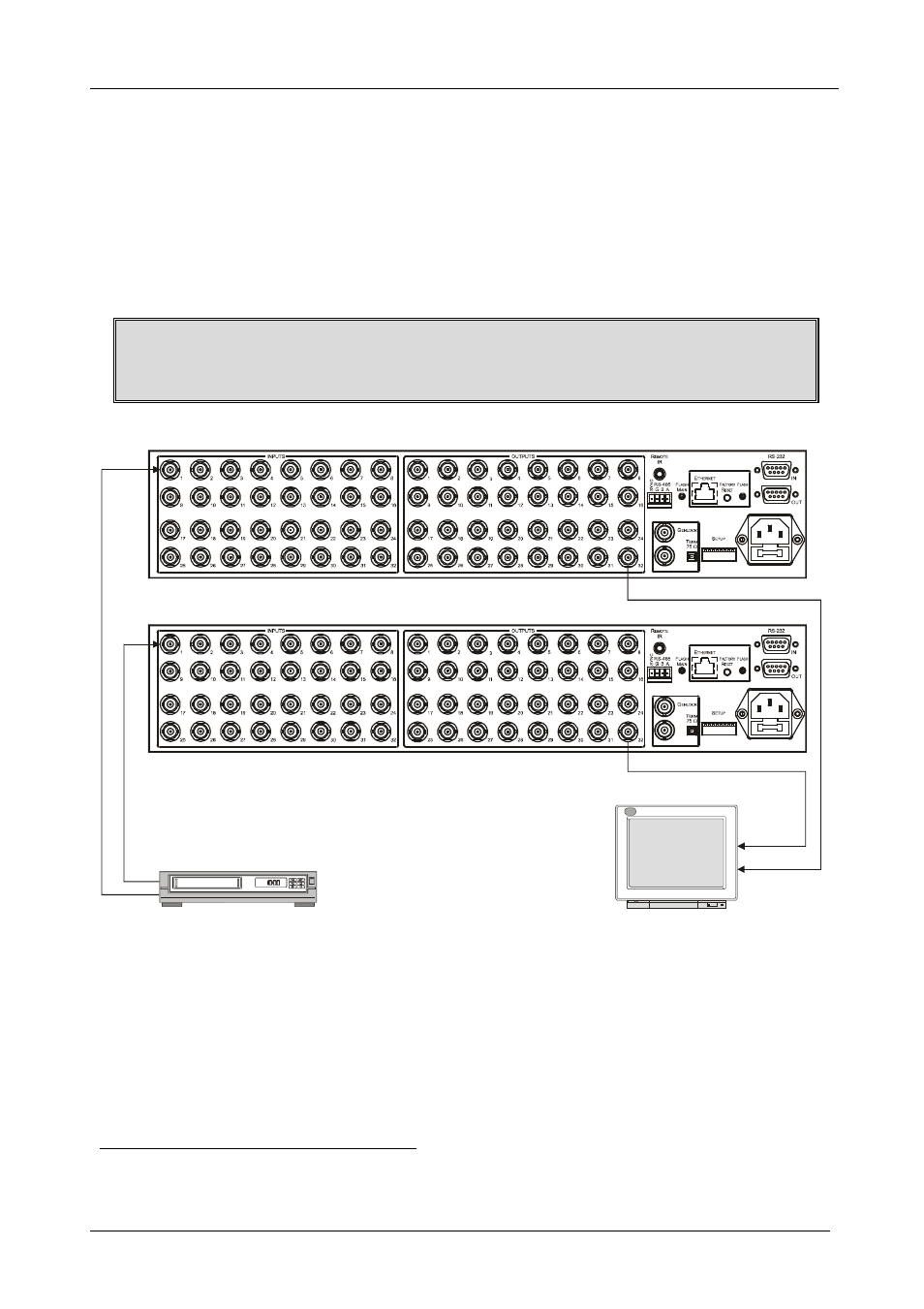

Figure 4: Configuring a 32x32 s-Video (YC) Switcher with two VS-3232V Switchers
1 The INPUT 1 connectors on the Y switcher and the C switcher
2 The OUTPUT 32 connectors on the Y switcher and the C switcher
