Connecting the Video Matrix Switcher
20
6.4.1 Connecting the RS-232 Control Interface
You can connect several switchers (from the series of 32x32 or 16x16 matrix
switchers) and the control unit in an RS-232 daisy chain arrangement, with or
without using a Null-modem adapter, as Figure 7 illustrates.
The RS-232 daisy chain switcher arrangement is transparent. This lets you arrange
the switchers (from the series of 32x32 or 16x16 matrix switchers) according to
your requirements, and not according to a fixed sequence dependent on the
Machine #.
With a Null-modem adapter
Set DIP 7 OFF
With a Null-modem adapter
Set DIP 7 OFF
Without a Null-modem adapter
Set DIP 7 ON

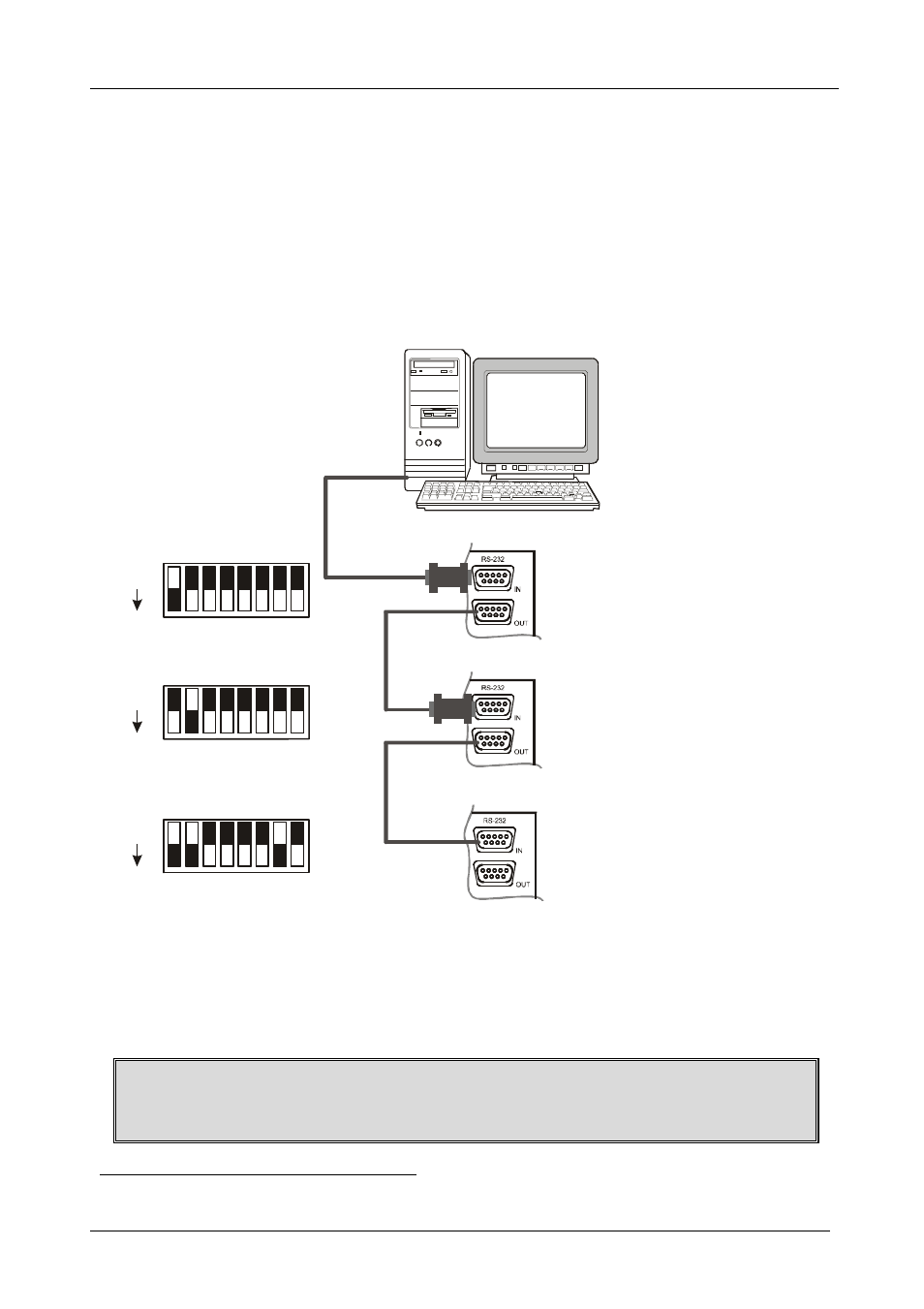

Figure 7: Connecting a PC to Three VS-3232V Units
You can connect any of the following:
The PC’s DB9 COM port to a VS-3232V unit 1 (see section 6.4.1.1)
Two VS-3232V units 1 , (see section 6.4.1.2)
Important: powering OFF a unit inside the daisy-chain will destroy the daisy-
chain connection.
1 With or without the Null-modem adapter
