Connecting the Video Matrix Switcher
26
6.6 Controlling via the ETHERNET
You can connect the
VS-3232V via the Ethernet, using a crossover cable (see
section 6.6.1) for direct connection to the PC or a straight through cable (see
section 6.6.2) for connection via a network hub or network router
1
.
6.6.1
Connecting the ETHERNET Port directly to a PC (Crossover Cable)
You can connect the Ethernet port of the
VS-3232V to the Ethernet port on
your PC, via a crossover cable with RJ-45 connectors.
This type of connection is recommended for identification of the factory default
IP Address of the
VS-3232V
during the initial configuration
After connecting the Ethernet port, configure your PC as follows:
1. Right-click the My Network Places icon on your desktop.
2. Select
Properties.
3. Right-click Local Area Connection Properties.
4. Select
Properties.
The Local Area Connection Properties window appears.
5. Select the Internet Protocol (TCP/IP) and click the
Properties Button (see
Figure 11).

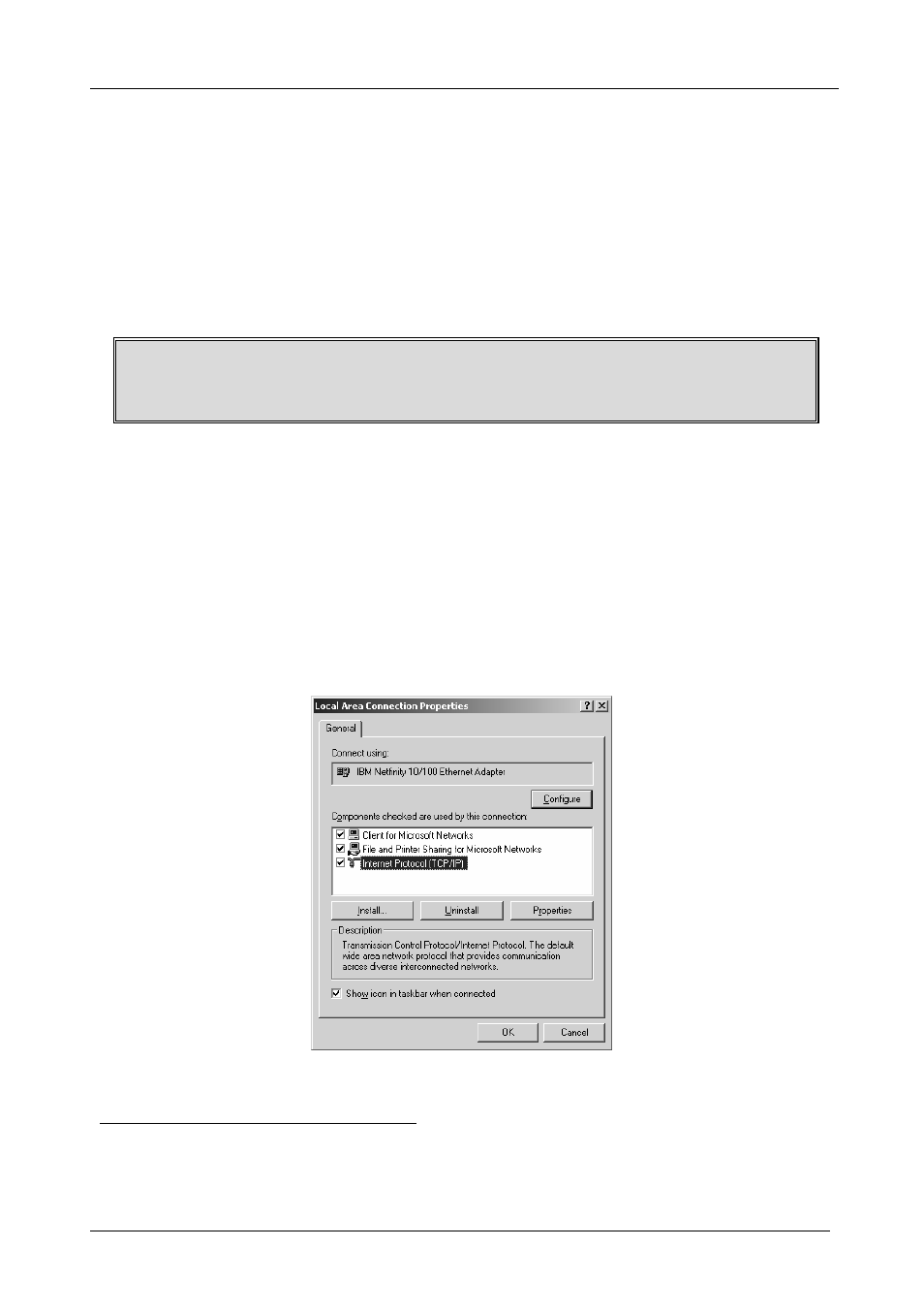

Figure 11: Local Area Connection Properties Window
1 After connecting the Ethernet port, you have to install and configure your Ethernet Port. For detailed instructions, see the
“Ethernet Configuration (FC-11) guide.pdf” file in the technical support section on our Web site:
