ASSEMBLY
A96B 03/06 Assembly Section 3-14
© 2006 Alamo Group Inc.
ASSEMBL
Y

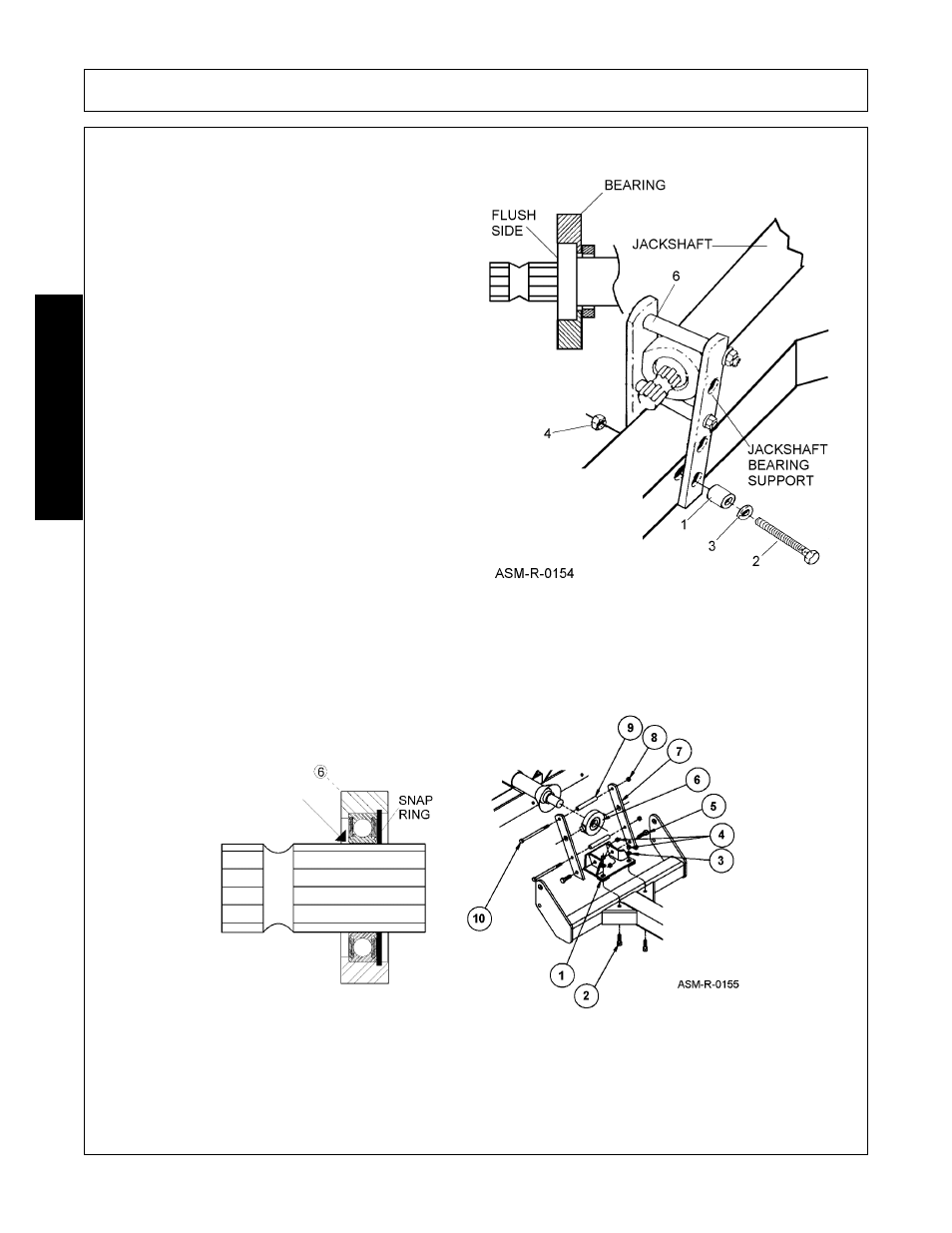

JACKSHAFT BEARING SUPPORT
ASSEMBLY
Insert the splined end of jackshaft into the Bearing
Support, (Figure ASM-R-0154), and attach the
Jackshaft Bearing Support to the Tongue Lugs as
shown. Insert bushing (item 1) into Bearing
Supports, install 5/8 x 8 capscrew (item 2) with
flatwasher (item 3) against bushing, and install
locknut (item 4) and tighten securely.
NOTE: Install bearing assembly with flush side
toward tractor. Bearing should be rigidly attached to
jackshaft when shipped. If not, apply Locktite 609
between shaft and bearing to lock in place.
CV JACKSHAFT SUPPORT ASSEMBLY
Insert the splined end of Jackshaft into the Bearing (6) and attach the Jackshaft Mount (1) to the Tongue with 5/
8” x 2" bolt (2), flatwasher (3), and locknut (4) as shown in Figure ASM-R-0155. Attach Jackshaft Support (7)
to Mount (1) using 5/8” x 1-1/2” bolts (5) and locknut (4). Clamp top and middle section of Support by using 1/
2” x 7" bolts (10) and locknuts (8), placing Spacers (9) between Supports.
NOTE: Install bearing assembly with snap ring facing jackshaft. Bearing should be rigidly attached to jackshaft
when shipped. If not, apply Locktite 609 between shaft and bearing to lock in place.
