MAINTENANCE

A96B 03/06

Maintenance Section 5-25

© 2006 Alamo Group Inc.

MAINTENANCE

Gear Backlash Adjustment

Step 11 Gear backlash adjustment is accomplished by moving shims from front to back gear side or vise

versa. To increase backlash move.012” thick shim from back to front side of gear. Note: Front side of gear is

face toward center of gear box. If.012” shim is not present but a.020” shim is replace the.020” shim with

two.012” Shims and then make adjustment. To decrease backlash move Shims the opposite direction.

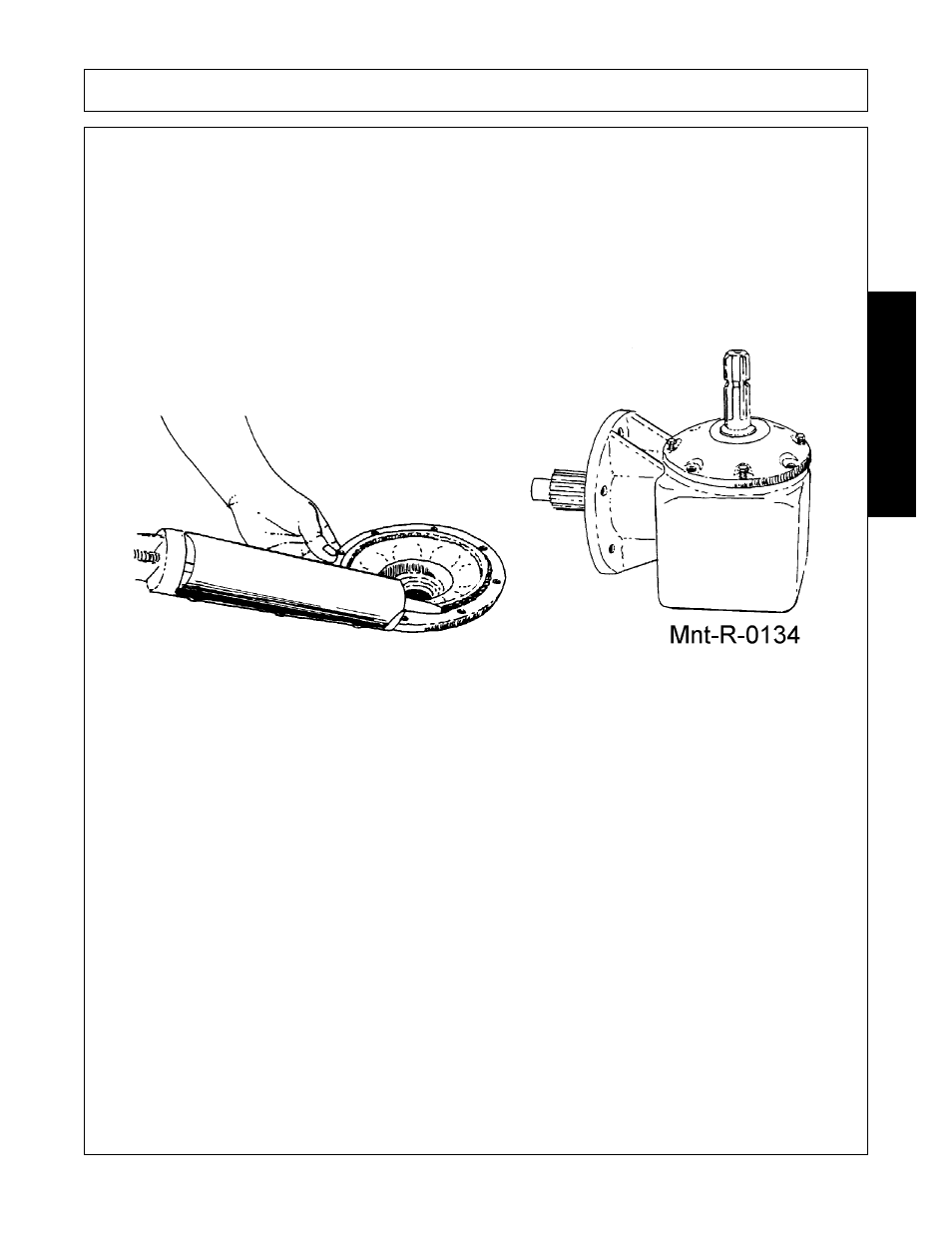

Once this adjustment has been made, remove the Cap and Gaskets. Install all Gaskets on Cap and then apply

a small bead of sealant around flange of the Cap and on top of the Gaskets. Reinstall the Cap on the housing

and install all eight Bolts and tighten them to a torque of 31 to 34 foot pounds. Figure Mnt-R-0134.

Fill the Gearbox with new NLGI 000 Grease to the Oil Level Plug. Reinstall the Breather Plug and remount the

Gearbox back on the machine.
