OPERATION

A96B 03/06

Operation Section 4-16

© 2006 Alamo Group Inc.

OPERA

T

ION

8. Driveline Length Check

When fitting the mower to the tractor, the telescoping driveline must be inspected to ensure that at its most

compressed position, the profiles do not “bottom out”, and when at its farthest extended position, there is

sufficient engagement between the profiles to operate safely. At its shortest length, there must be at least a 1”

clearance between each profile end and opposite profile universal joint. At its farthest operating extension, a

minimum profile engagement of 12” must be maintained.

Before operating the Implement, check to make sure the Implement input driveline will not

bottom out or become disengaged. Bottoming out occurs when the inner shaft penetrates

the outer housing until the assembly becomes solid-it can shorten no more. Bottoming out can cause serious

damage to the Tractor PTO by pushing the PTO into the Tractor and through the support bearings or

downward onto the PTO shaft, breaking it off. A broken drive line can cause personal injury.

(S3PT-18)

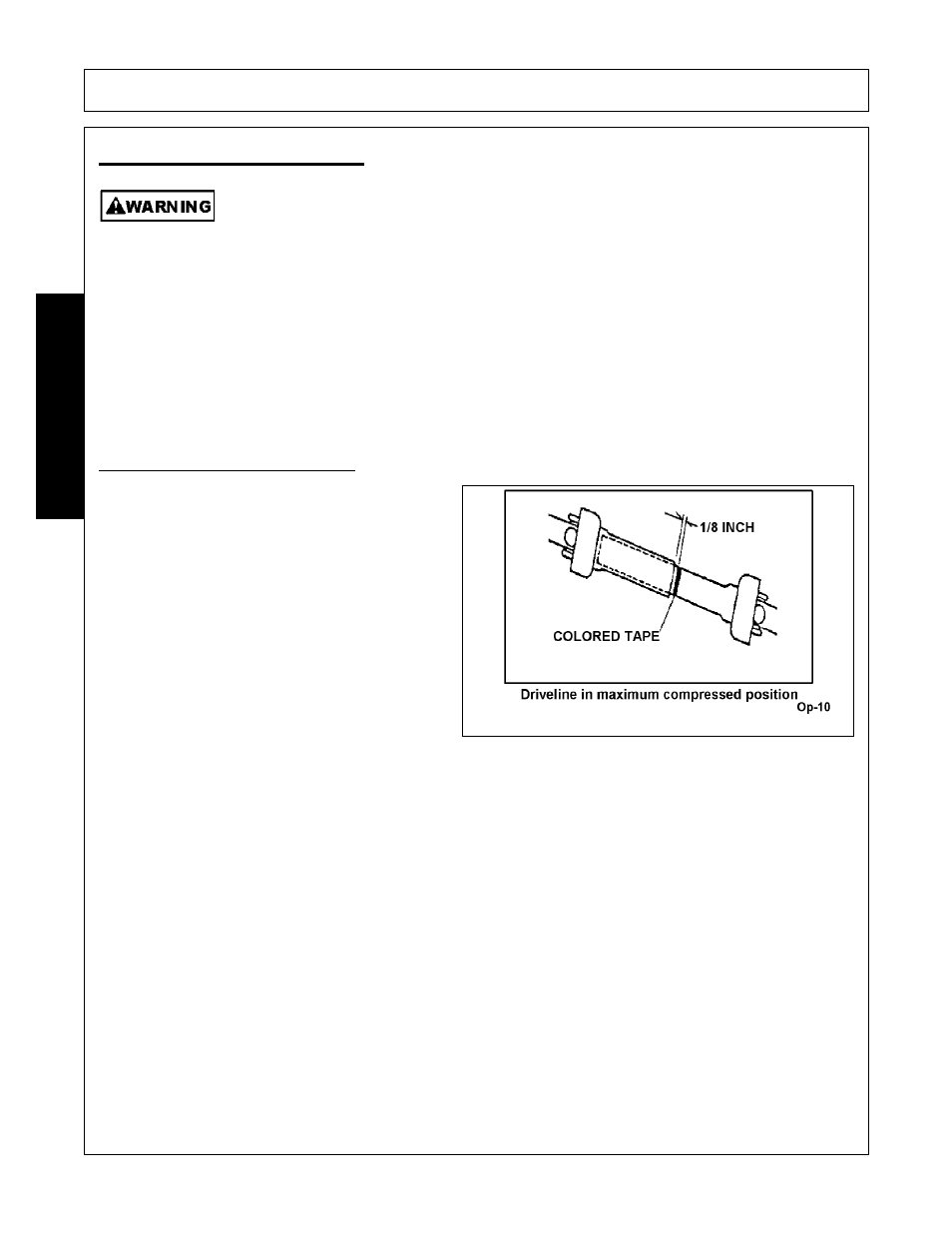

“Bottoming Out” Check Procedure

Disconnect driveline from the tractor and slide
the profiles together until fully compressed.

Place a mark on the inner shield 1/8” from the
end of the outer shield.

Reattach the driveline to the PTO Shaft.

Lift and Semi-Mount Type - Raise the mower/
Pull Type - Turn sharply and watch the
driveline as it approaches the mark. If the
distance between the mark and the end of the
outer shield tube becomes less than 2” at any
point, the driveline must be shortened. OPS-
R-0004_D
