ASSEMBLY
A96B 03/06 Assembly Section 3-5
© 2006 Alamo Group Inc.
ASSEMBL
Y
The Components of these machines are quite heavy. Block all components up securely
before working under or putting extremities under such parts.

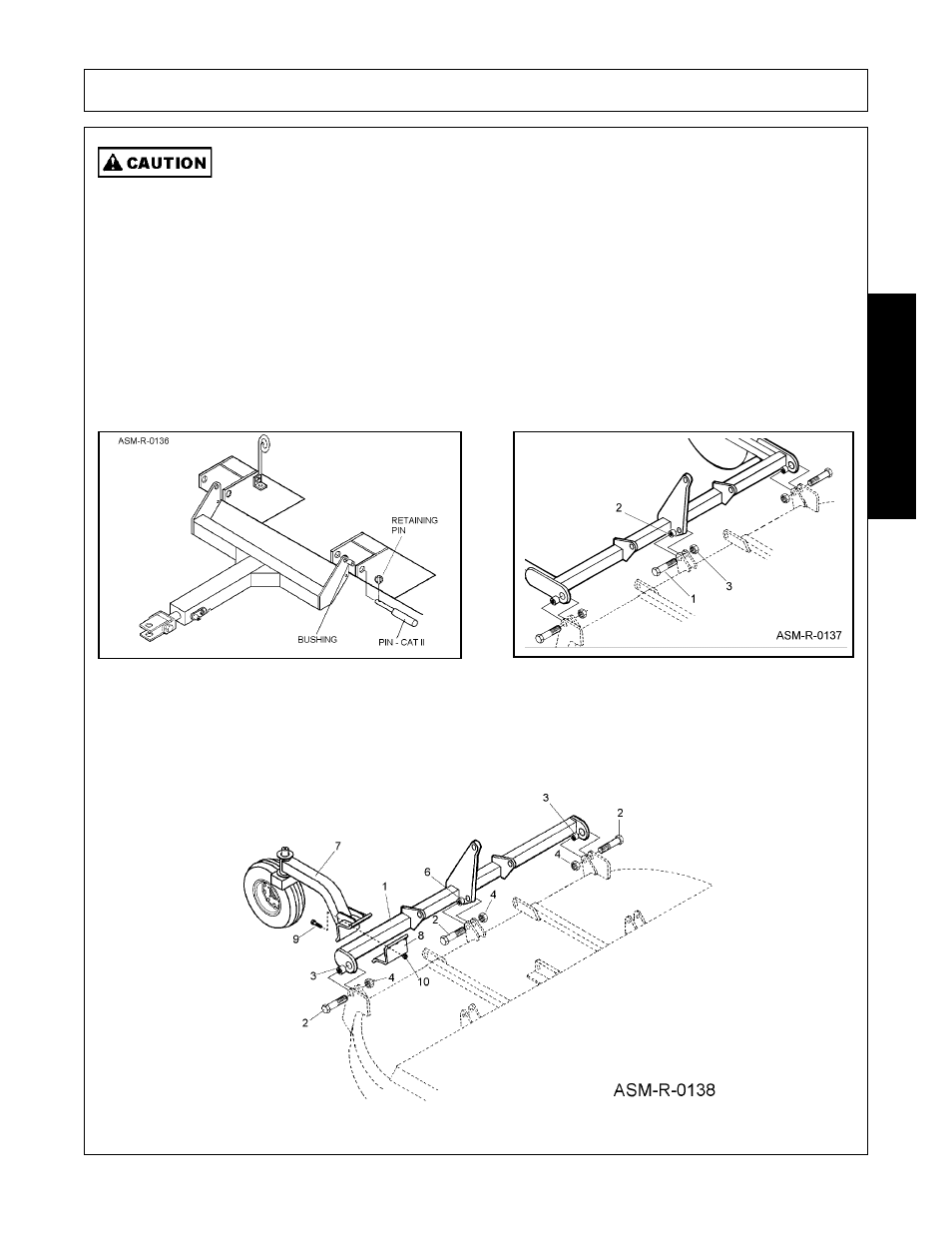

TONGUE - PULL TYPE
Insert tongue lugs inside mainframe uprights and retain using Bushings 1-3/4OD X 1-1/4 LG & Hitch Pins.
Insert Retaining Clip to Special Pins. See Figure ASM-R-0136.
AXLE ASSEMBLY - PULL TYPE
Attach the Rear Axle to the lugs on the rear of the Mainframe using (3) 3/4 x 3 bolts (#1) bushings 1-1/8OD x
1-1/16Lg (#2) and Locknuts (#3). See Figure ASM-R-0137.
AXLE ASSEMBLY (Semi-Mount & Hydraulic Offset) (Figure ASM-R-0138)
Attach rear axle (1) to lugs on rear of mainframe using 3/4” x 3" bolts (2), 1-1/8” OD x 1-1/16” bushings (3), 1"
OD x 1" bushing (6) (in center), and Locknuts (4). Clamp caster wheel assembly (7) to axle w/ cap (8), using 5/
8” x 2-1/2” bolts (9) and nuts (10). (Figure ASM-R-0138)
