MAINTENANCE

A96B 03/06

Maintenance Section 5-18

© 2006 Alamo Group Inc.

MAINTENANCE

Disassembly Instructions for Outer Gearbox

Note: Drain all oil from Gearbox before disassembly. Mount the Gearbox in a Vice to aid in disassembly and

assembly.

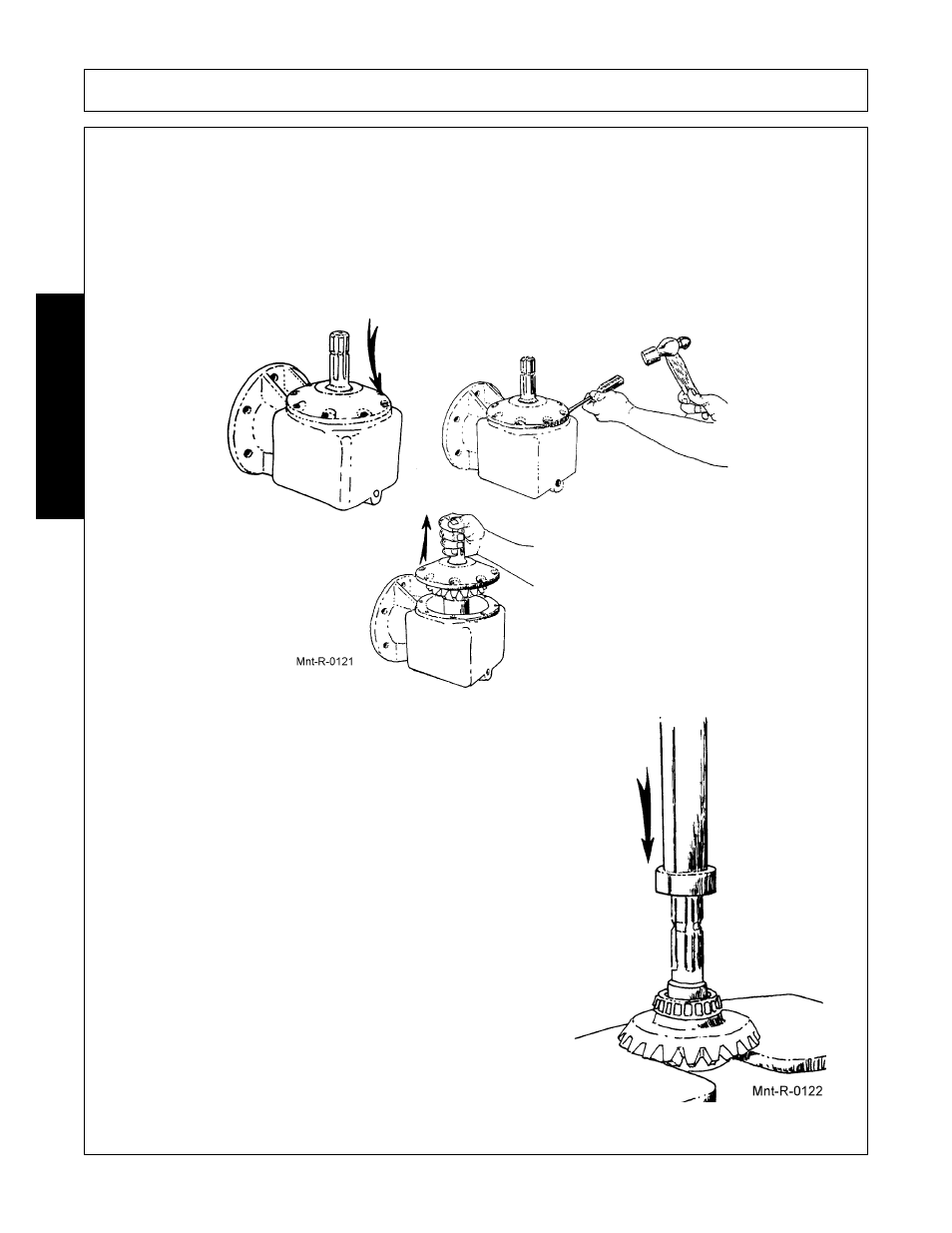

Step 1. Remove the eight M10 cap screws (#17) (using 14mm socket) from Input Cap (#19). Loosen the Input

Cap with a screwdriver and hammer. Then, lifting upward on the end of Input Shaft (#18), force the Input Cap

(#19) away from the Gearbox Housing, and remove complete Input Cap and Shaft assembly from the Housing.

Figure Mnt-R-0121.

Step 2. Remove the Input Cap (#19) off Input Shaft (#18), and

then press Input Gear (#20) and Bearing (#21) off the Shaft.

Press bearing from opposite end of input shaft. Figure Mnt-R-

0122.
