MAINTENANCE

A96B 03/06

Maintenance Section 5-19

© 2006 Alamo Group Inc.

MAINTENANCE

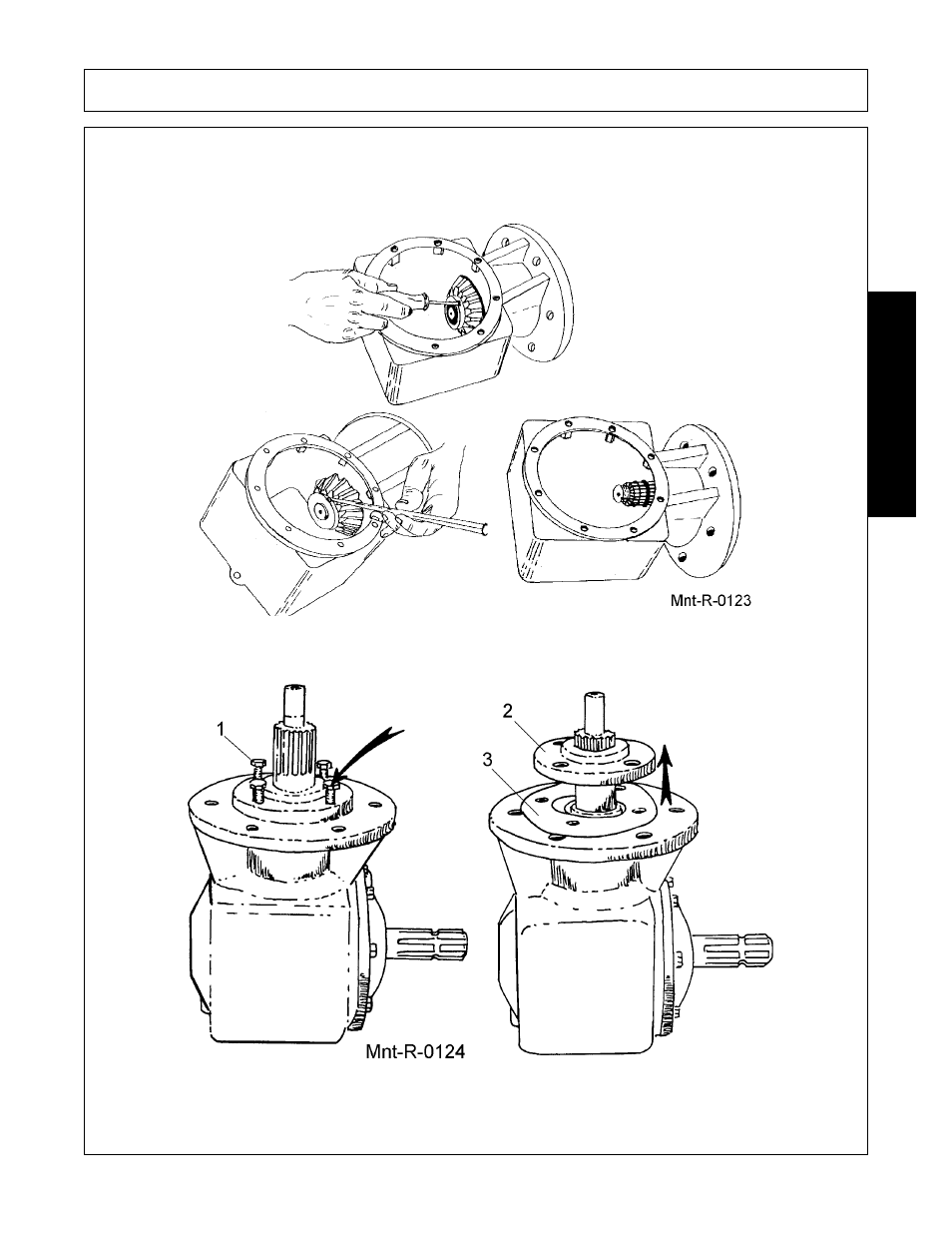

Step 3. Unlock tab on special lock washer which locks top output shaft nut in place (Figure Mnt-R-0123).

Remove lock washer, gear, shims and spacer (Figure 23). Reinstall slotted spanner nut. Remove slotted

spanner nut from top end of output shaft.

Step 4. Remove the 4 M12 Cap Screws (#1) using a 17mm socket, then remove the Output Cap (#2) and

Gaskets (#3). Figure Mnt-R-0124.
