ASSEMBLY
A96B 03/06 Assembly Section 3-13
© 2006 Alamo Group Inc.
ASSEMBL
Y
CHAIN GUARD (EXTRA EQUIPMENT)
CHAIN GUARDS: Front and Rear Chain Guards (Optional Equipment) are recommended for higher than
normal usage (100 hours or more per year) and will provide protection from thrown objects with careful
operation. Chain Guards must be maintained in good repair by replacing missing or worn sections or by being
replaced when seriously worn or damaged.
Front Chain Guards

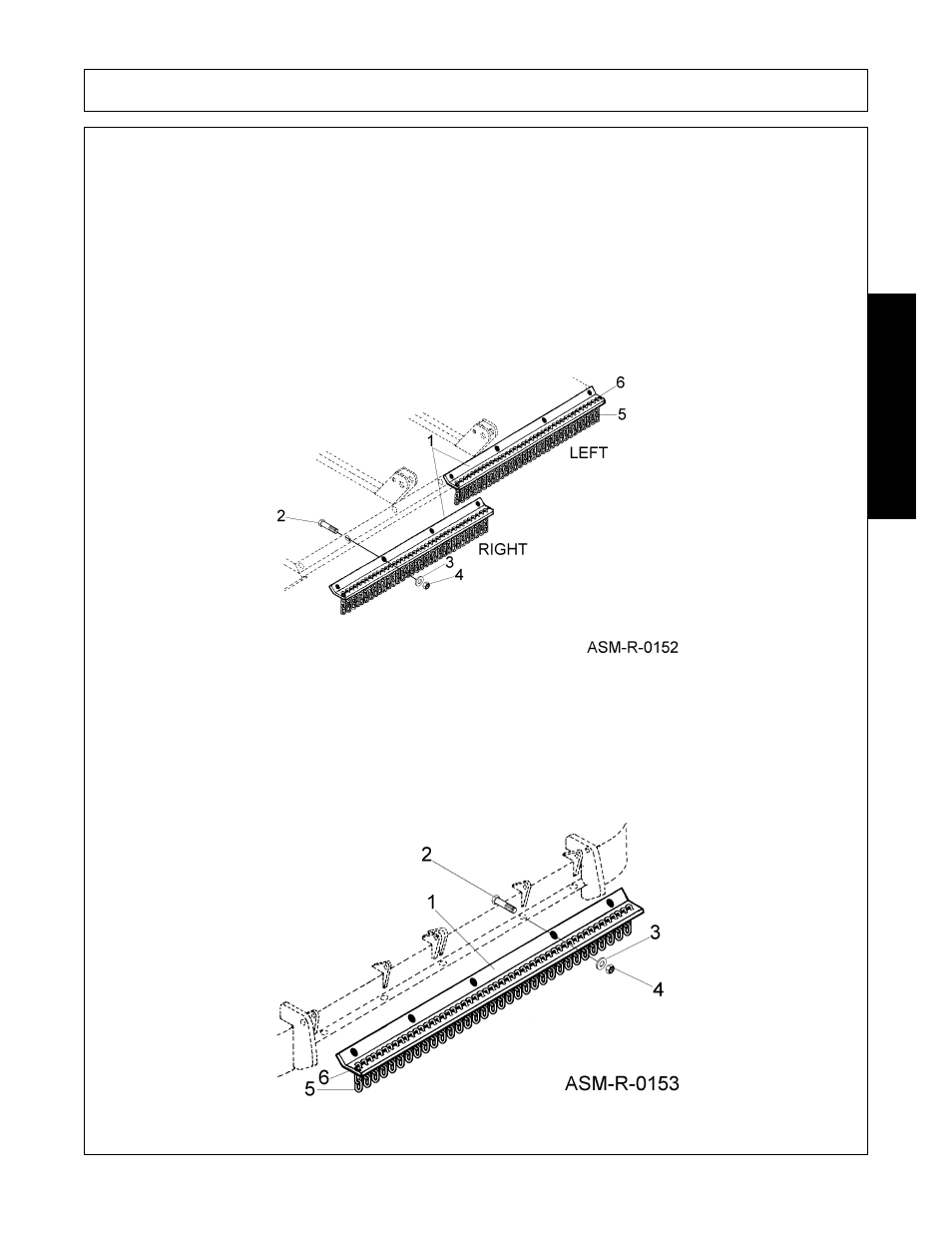

1. Attach the right and left Chain Guard (1) to the mower with 1/2” x 1-1/4” Bolts (2), Flatwashers (3), and
Locknuts (4). Fasten chain links (5) to guard by inserting rod (6) through each link and bending over the
ends. (Figure ASM-R-0152)
Rear Chain Guards
1. Attach the Right Chain Guard Mounting Plate (1) & the Left Chain Guard Mounting Plate (2) to the mower
with 1/2” x 1-1/2” Bolts (3), Flatwashers (4) and Locknuts (5). Then attach Chain Guards (6) to Chain
Guard Mounting Plates with 1/2” x 1-1/2” bolts(7) Flatwashers(8) and Locknuts (9). For Double Chain
Guards attach with 1/2” x 3" bolts (10), Flatwashers (11), Spacers (12) and Locknuts (13). Fasten Side
Rear Chain Guard (14) to Chain Guard Mounting Plates (1&2) with 1/2” x 1-1/4” bolts (15) Flatwashers (16)
and Locknuts (17).(Figure Asm-R-0153)
