OPERATION

A96B 03/06

Operation Section 4-7

© 2006 Alamo Group Inc.

OPERA

T

ION

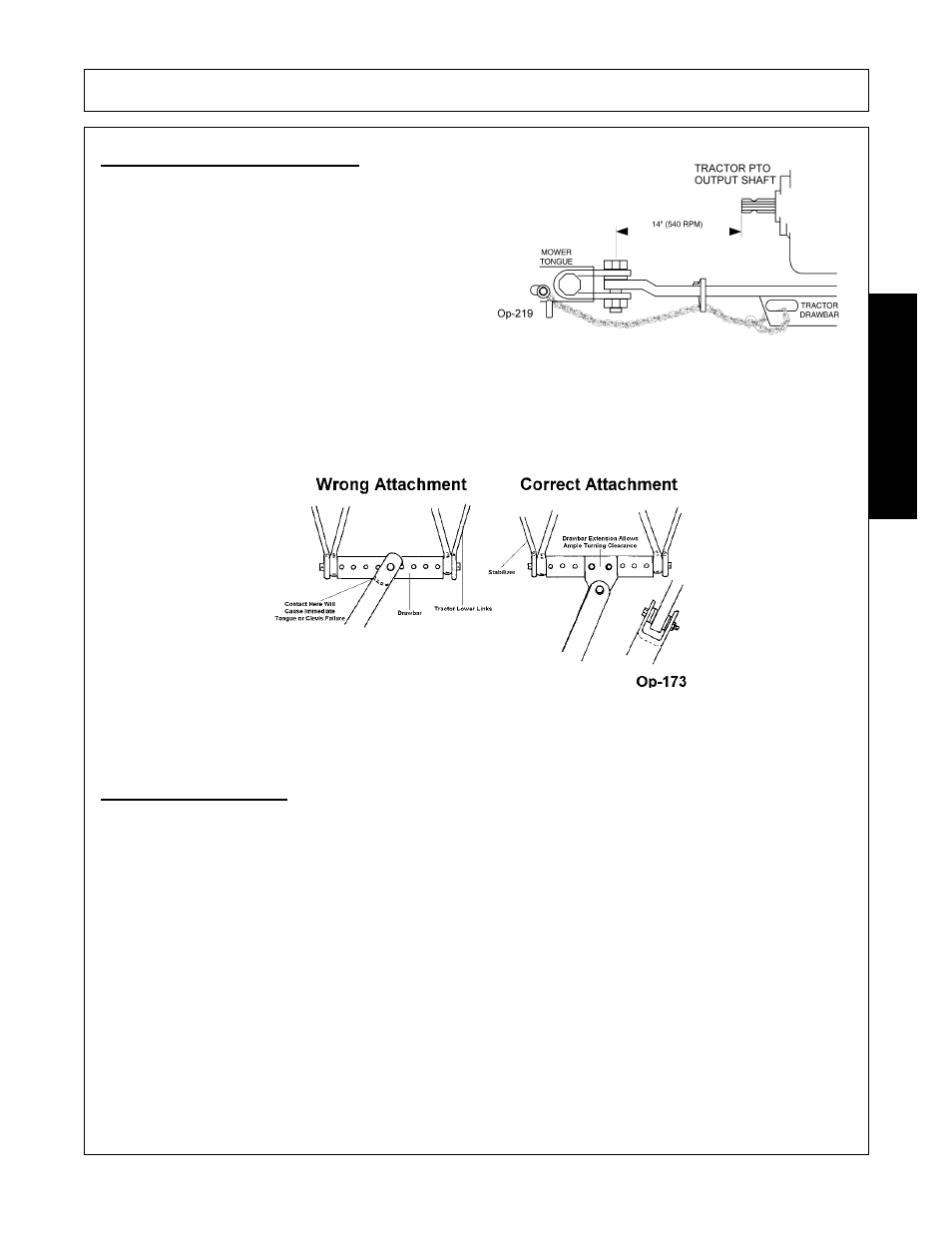

2.5 Drawbar-Pull Type Mower

For equipment operating at 540 RPM, the tractor

drawbar must be positioned at a 14” distance from the

hitch point to the PTO shaft end for proper operation

and minimal wear to the driveline.

If attaching the mower tongue clevis to a 3-point hitch drawbar supported by the lower lift arms, the attaching

point must be extended past the main bar to allow for turning without binding the clevis and bar. Lift arm

stabilizers must be used with this type of drawbar to prevent the mower from swaying from side to side.

OPS-R- 0061

2.6 Front End Weight

A minimum of 20% total tractor weight must be maintained on the tractor front end at all times. Front end

weight is critical to maintain steering control and to prevent the tractor from rearing up while driving. If the

front end is too light, add weight until a minimum of 20% total weight is reached on the front tires. Front

weights and weight carriers can be purchased through an authorized tractor dealership. OPS-U- 0005
