MAIN CV DRIVELINE SAFETY SHIELD

1.

To remove the outer CV cone, remove the locking screws from shield cone. Remove cone over yoke.

Remove bearing ring and remove the locking screws from inner shield cone. Turn inner cone to

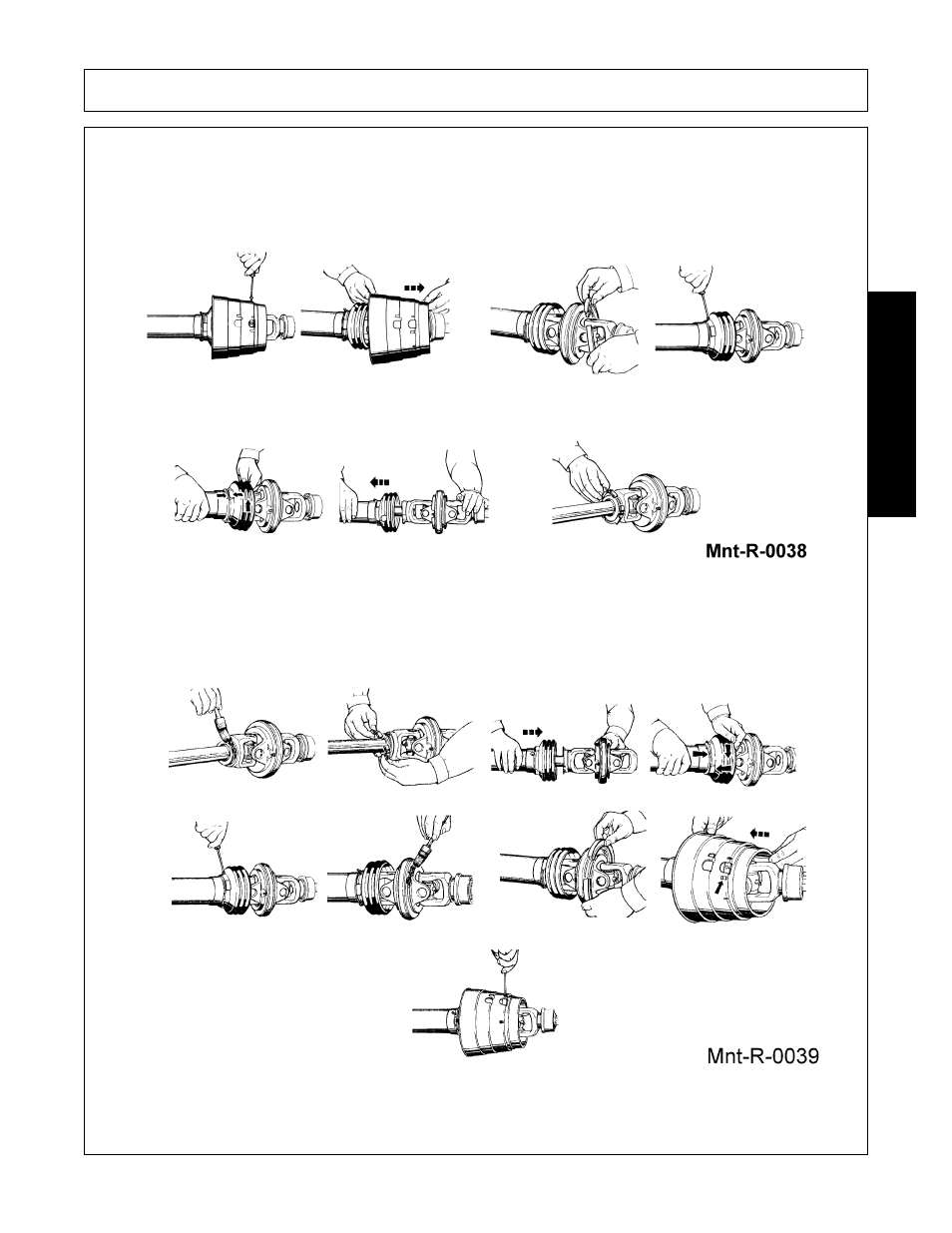

assembly position and remove half shield. Remove bearing ring. FIGURE MNT-R-0038.

1.

To assemble outer CV driveline, grease yoke groove and inner profile tube. Attach bearing ring on

groove with recesses facing profile tube. Slide on half shield with cone. Turn cone until it engages
correctly. Tighten locking screws. Grease bearing groove in double yoke. Insert bearing ring. Slide
guard cone for double yoke over cam from the connecting end. Make sure holes for screws are visible.
Tighten locking screws. FIGURE MNT-R-0039.
