MAINTENANCE

A96B 03/06

Maintenance Section 5-16

© 2006 Alamo Group Inc.

MAINTENANCE

Step VIII.

Check backlash between gear set. Backlash should be.012 to.024 inches. If backlash is to small add shims

between main housing and input hub. Remove shims for excessive backlash.

Step IV.

Remove side caps one at a time, seal with sealer and reinstall. Repeat process for input hub assembly.

Gearbox is ready to be filled with good grade of NLGI 000 Grease. See maintenance section for specifications.

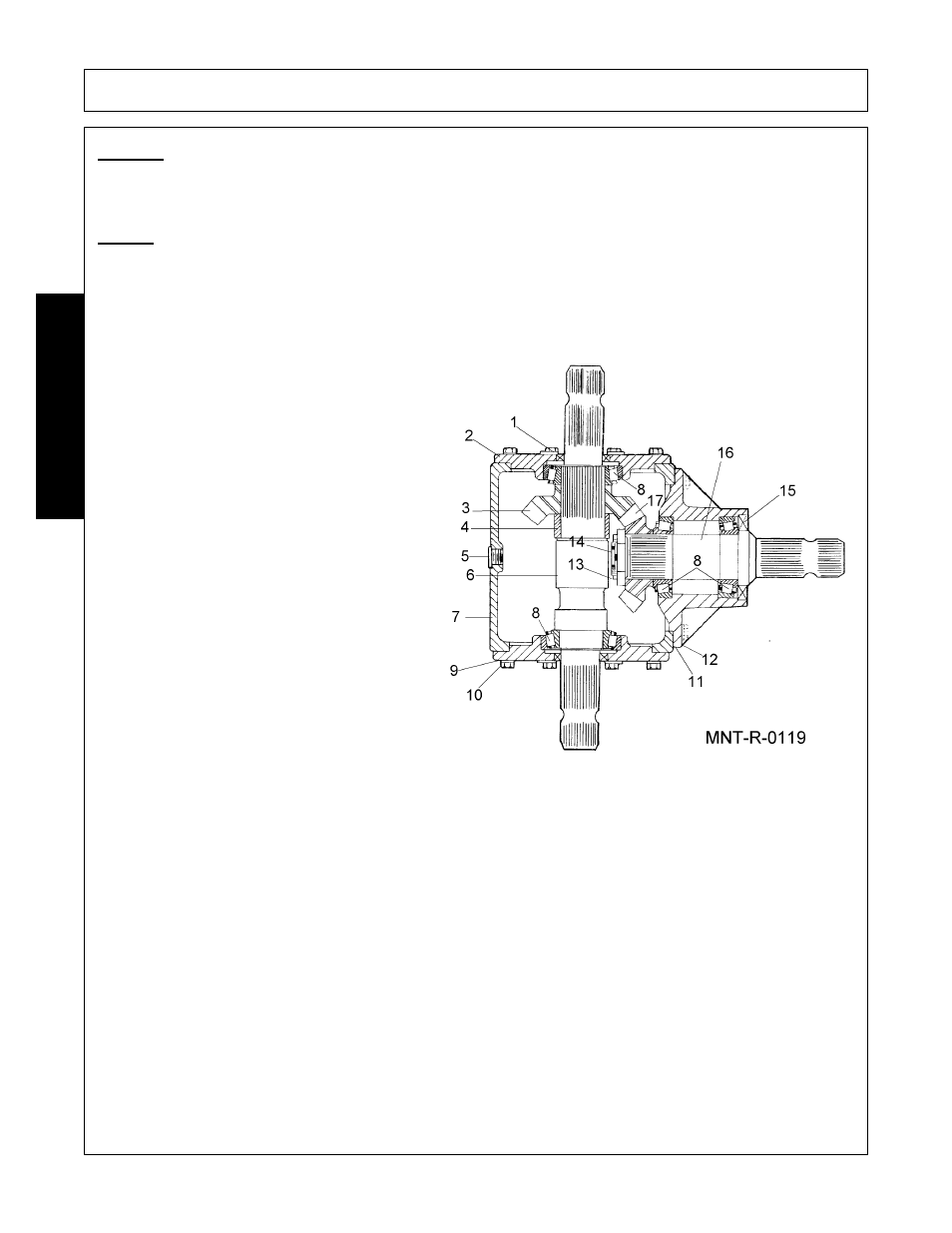

ITEM

QUANTITY

DESCRIPTION

1.

2

Seal

2.

2

Cap-Side

3.

1

Gear-14 Tooth

4.

1

Spacer

5.

2

Pipe Plug

6.

1

Shaft

7.

1

Housing

8.

4

Bearing

9.

24

Lock washer

10.

24

Bolt

11.

AR

Gaskets
(Includes 0.40,
0.25, & 0.30)

12.

1

Cap-Hub Input

13.

1

Adjusting Nut

14.

1

Cotter Pin

15.

1

Seal

16.

1

Shaft

17.

1

Gear - 17 Tooth

18.

1

Pipe Plug Vented
(not illustrated)
