MAINTENANCE

A96B 03/06

Maintenance Section 5-4

© 2006 Alamo Group Inc.

MAINTENANCE

DRIVELINE LUBRICATION

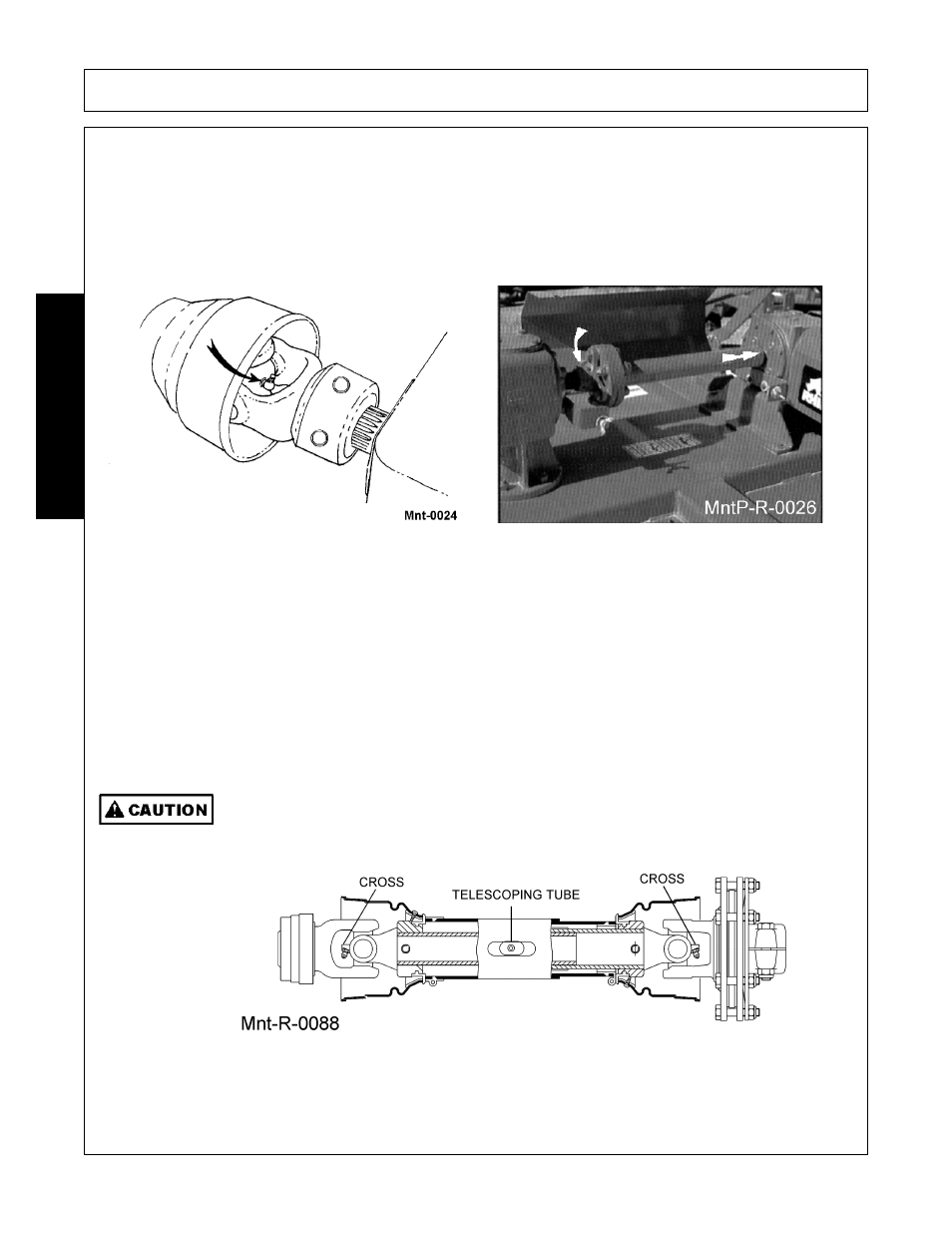

Grease Fittings are located on the Cross Assembly of each U-Joint and on the telescoping tubes. Grease the

U-Joint after each 8 hours of use. Figure Mnt-0024 & MntP-R-0026. Do not force grease through the Needle

Cup Assemblies. Grease the telescoping tubes after every 8 hours use. Some PTO-to-Hitch connections may

necessitate cutting a hole in the shields to be able to align the Grease Fitting holes for lubrication. Lubricate the

shield bearings every 16 hours. Figure Mnt-R-0088.

DRIVELINE SHIELD REMOVAL

The Driveline Integral Shields should not become dented or otherwise damaged. The Integral Shield Assembly

has a Nylon Bearing at each end and should turn freely. This nylon bearing should require lubrication every 8

hours. To remove the Integral Shields for replacement or repair, turn the three Nylon Bolts 1/4 turn in the Shield

Slots of the Cone and Tube and remove them. Slip the Shield Cone Assembly off inner section of the Driveline.

Install the new or repaired Shield on the Driveline. Place the split Nylon Bearing over the Driveline Housing of

Shaft against the Yoke and in the Bearing groove. Install shield over the Housing so the Nylon Bearing fits into

the Shield Bearing Retainer. Align a slot in the Shield Cone with one of the slots in the Shield. Put one of the

Nylon Bolts back in through the aligned slots and turn until it is perpendicular to the slots. Add the other two

Nylon Bolts.

Make certain that the Driveline Integral Shields are free to telescope and rotate around the

Driveline without binding.
