9

During the initial installation and in case
of repairs, which involve the replace-
ment of accessories, you must make
sure that only the components defined
as accessories are used (connection
kit, CO

2

pressure regulator (option, ap-

pliance with CO

2

). These parts are com-

ponents that have been released by
KÄRCHER for installation. Never use
other components. These components
are tested and certified to meet the high
quality requirements of the certification
by the SGS Institut Fresenius GmbH
and the KÄRCHER quality standards

The installation and start-up of the ap-
pliance must only be performed by
trained KÄRCHER service personnel.

If the drinking water supply must be
tapped to install the appliance, this
must be performed by trained expert
personnel that is in possession of a per-
mit that meets the local laws and regu-
lations. This work must be ordered by
the customer if applicable.

The installation must be excecuted as
per the service manual 5.906-544.0.

To protect from water damage caused
by a burst water supply hose, we rec-
ommend the installation of an aqua stop
(sold separately) in the water supply
line.

The appliance must be installed in frost-
free rooms.

Do not use or park the device in the
open.

In order to ensure the water quality of
the dispensed water, the supplied water
must conform to the local legal regula-
tions for the requirements for drinking
water or at least to the recommenda-
tions of the World Health Organization
(WHO) "Guidelines for Drinking Water
Quality".

The power connection and the water in-
put pressure must conform to the data
in the specifications.

Depending on local regulations, the in-
stallation of an approved backflow-
stopper is required.

There must be an even surface availa-
ble to install the appliance.

Power plug and receptacle must be
freely accessible after the installation.

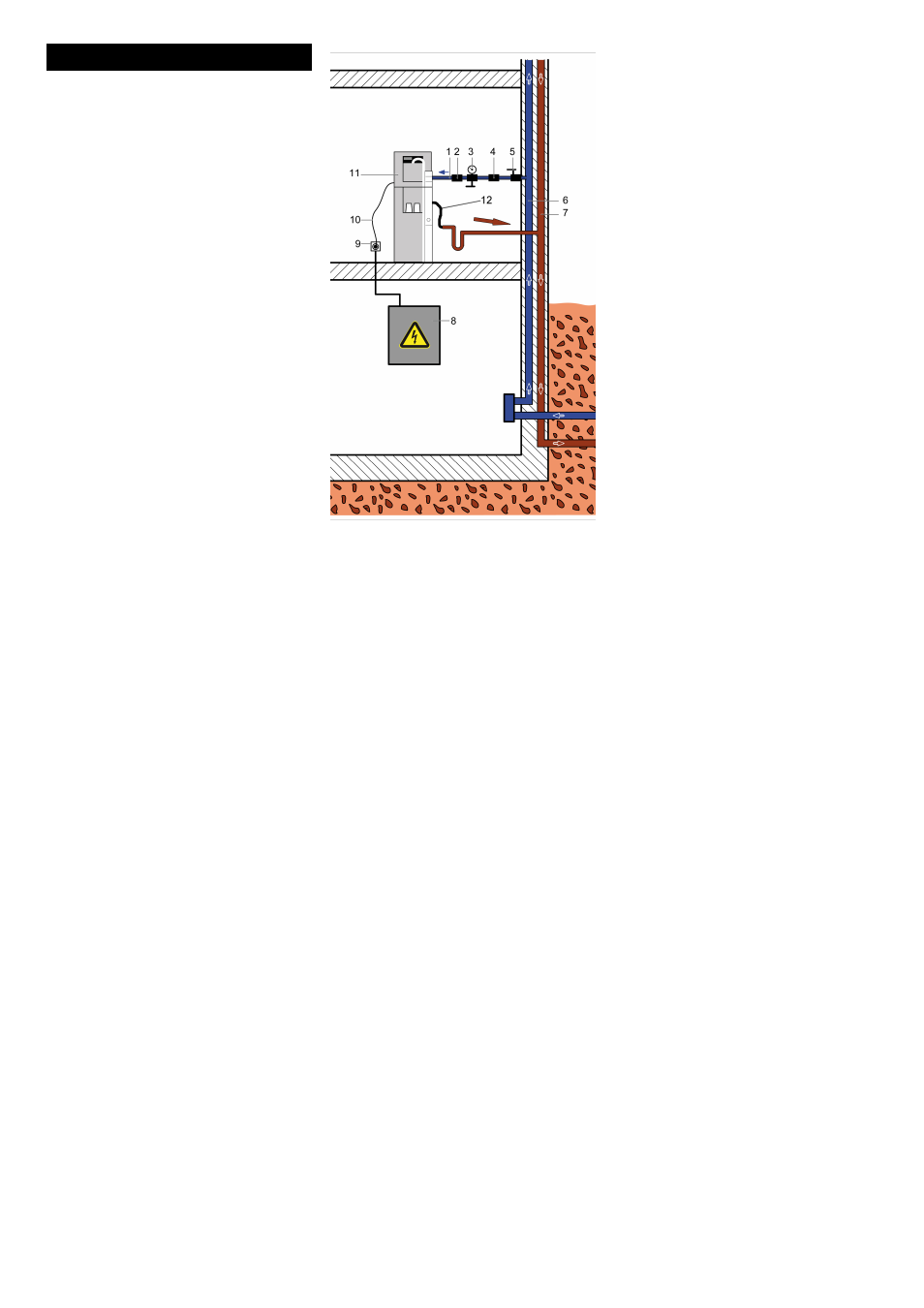

1 Water supply line
2 Backflow block
3 Pressure reducer
4 Aqua stop *
5 Water faucet *
6 Drinking water supply *
7 Wastewater *
8 Facility power supply *
9 Socket, protected via error current pro-

tective switch 30 mA *

10 Connecting cable WPD 100
11 WPD 100
12 Drain of drip pan

* to be provided by site, not included in the
delivery

Installation example

22

EN
