Reviewing the ISO Track Locations
The magnetic Encoding Module encodes onto tracks in accordance with an ISO 7811-2 Magnetic Stripe.

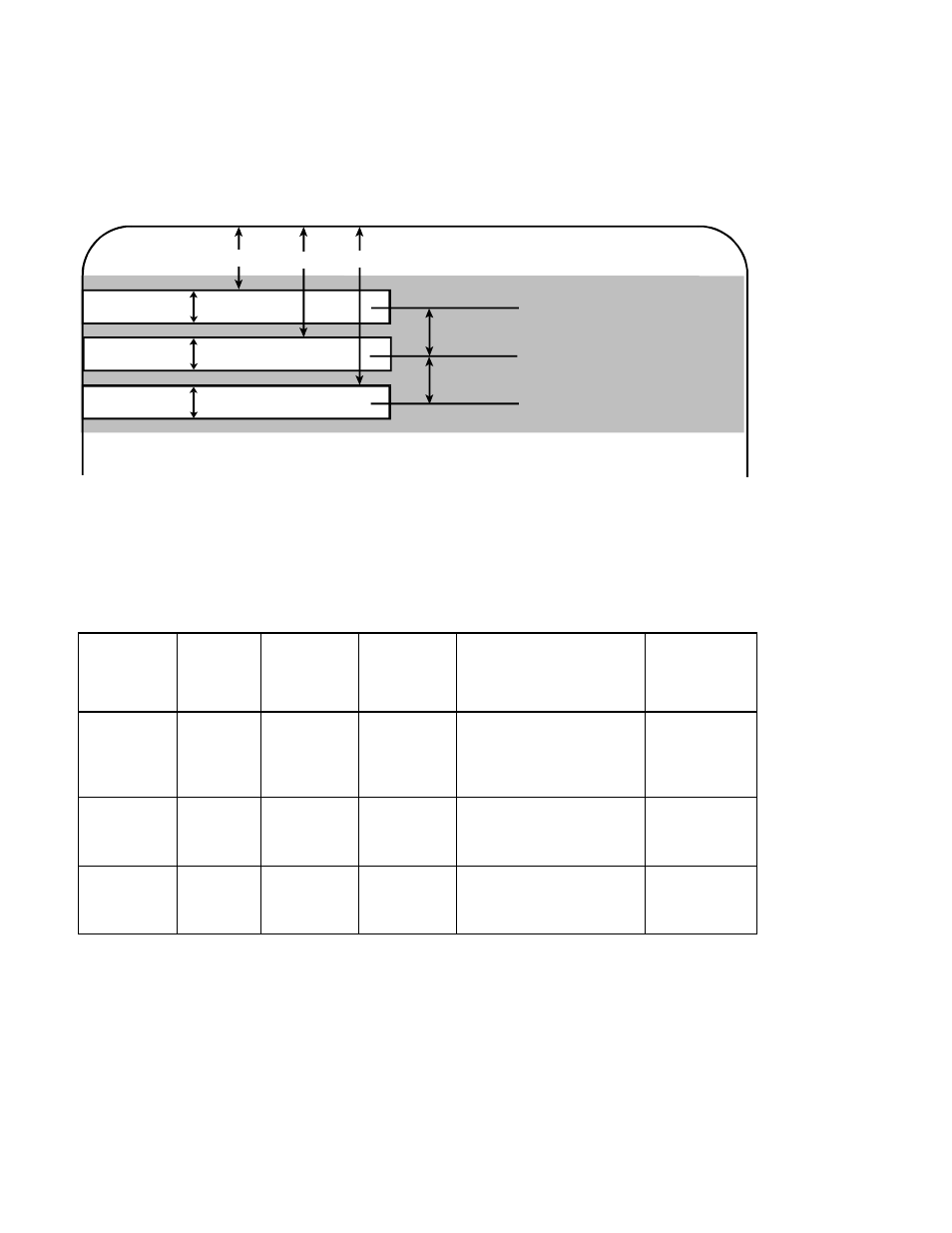

For track locations, review the display below.
TRACK1 0.110"
TRACK2 0.110"
TRACK3 0.110"
0.130"
0.140"
0.223" 0.353" 0.493"
Reviewing the Sample String
• Track 1: ~1%JULIEANDERSON^1234567890?
• Track 2: ~2;1234567890987654321?
• Track 3: ~3;1234567890987654321?
Track
Start
Sentinel
End
Sentinel
Field
Separator
Valid Characters
Maximum
Number of
Characters
Track 1 % ? ^
ASCII 32-95
(See the table below.)
78
Track 2 ; ? =
ASCII 48-63
(See the table below.)
39
Track 3 ; ? =
ASCII 48-63
(See the table below.)
106
