VertX Installation Guide
Output
number
V2000 V1000 V100 V200 V300
5 P2 Pins 4/5/6
6 P2 Pins 7/8/9
7 P4 Pins 9/8/7
8 P4 Pins 6/5/4
9 P4 Pins 3/2/1
10 P5 Pins 9/8/7
11 P5 Pins 6/5/4
12 P5 Pins 3/2/1
CAUTION: Some magnetic locks exhibit both high inrush current when activated and a high
instantaneous break voltage when de-energized due to magnetic field collapse. It is
recommended you use of a snubber circuit across the controlling relay terminals to protect the
controlling relay contacts. Go to
support.hidglobal.com , see Solution 891 - How do I wire a High
In-Rush Current locking device to VertX/Edge/Edge Solo?.
8. Input Connections (All VertX devices) – Input connections are analog inputs used for a combination of
specific functions such as Request-to-Exit (REX), Door monitor, etc. They can also be used as general
purpose monitoring. Connect one side of the switch or contact to the + (plus) lead and the other to the –
(minus) lead. The following table shows where the inputs are located. Pin numbers shown on the cover
use the convention +/–.
The default REX input configuration is normally open (NO) unsupervised (no EOL resistors).
However, the default door switch (DS) configuration is Normally Closed (NC), unsupervised (no
EOL resistors).
All other input points are defaulted for NO switches and are unsupervised (no EOL resistors).
Configure any input as NO or NC, as well as unsupervised or supervised. They can be configured for
supervisory resistors of 1K – 6K Ohm. The setup of supervised inputs should be done during configuration
of the VertX devices via the host
Example: Input 1, V1000 is: P14 Pin1 is + and Pin 2 is -.

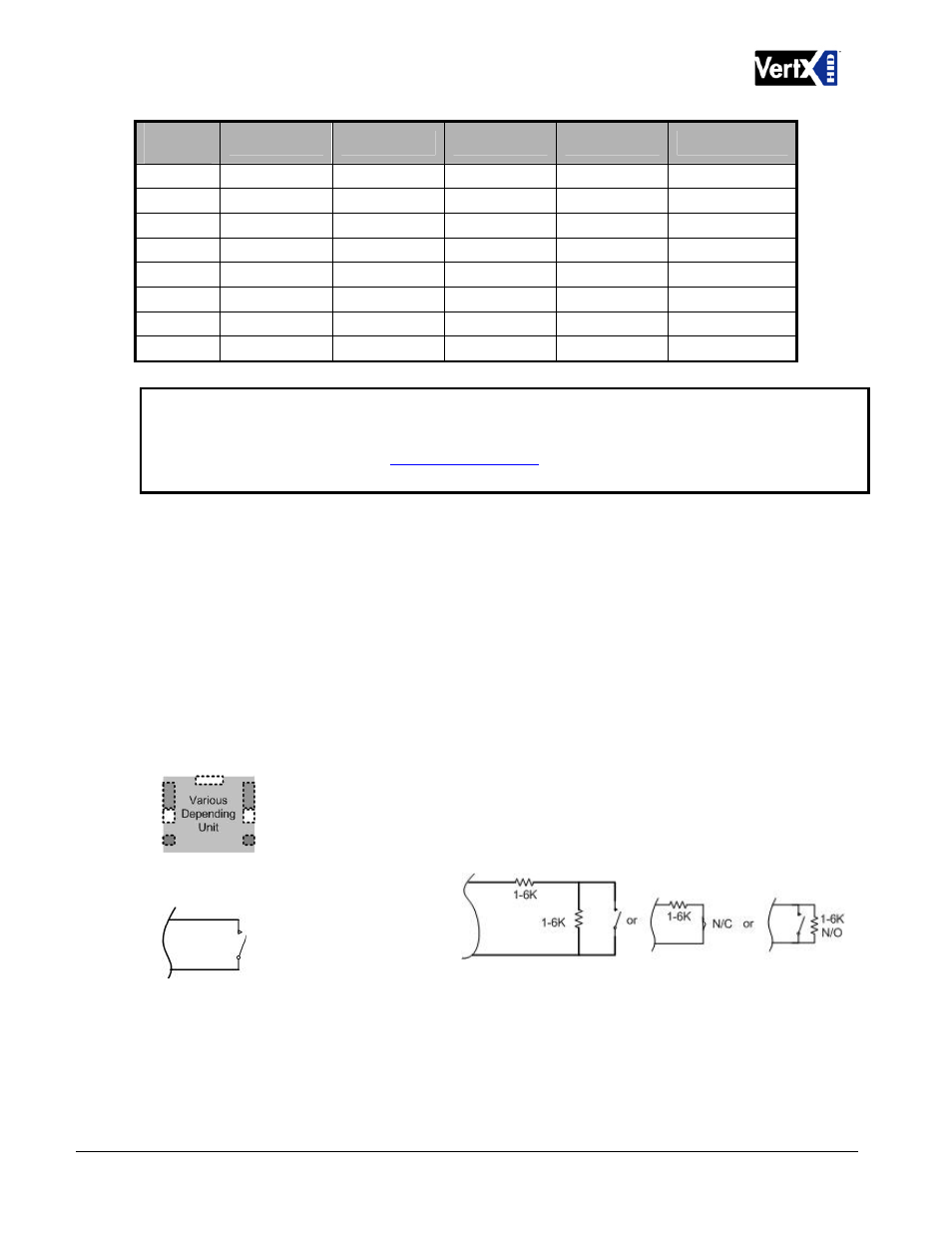

Supervised inputs can be configured for:
Except for the door monitor, all other
inputs default to NO, unsupervised:
