AT-TS12T Connectivity
44
50-Pin Telco Receptacle
The RJ21 50-pin Telco receptacle on the AT-TS12T and AT-TS24T
Repeaters is configured as shown in Figure 42.
For a pin-out table and information on attachment accessories, see
Appendix B.
Port Status Indicators
The port indicators on the AT-TS12T front panel provides visual
diagnostic and activity information for network analysis. The AT-TS12T
has a central bank of indicators, as shown in Figure 43.
Each 10BASE-T port supports the following indicator functions with one
dual-color front panel LED per port.
Note
The LEDs do not reflect real-time activity because a data packet is too fast
for the human eye to distinguish on the LED indicator; therefore, the hub
artificially stretches the LED ON time for easier observation.

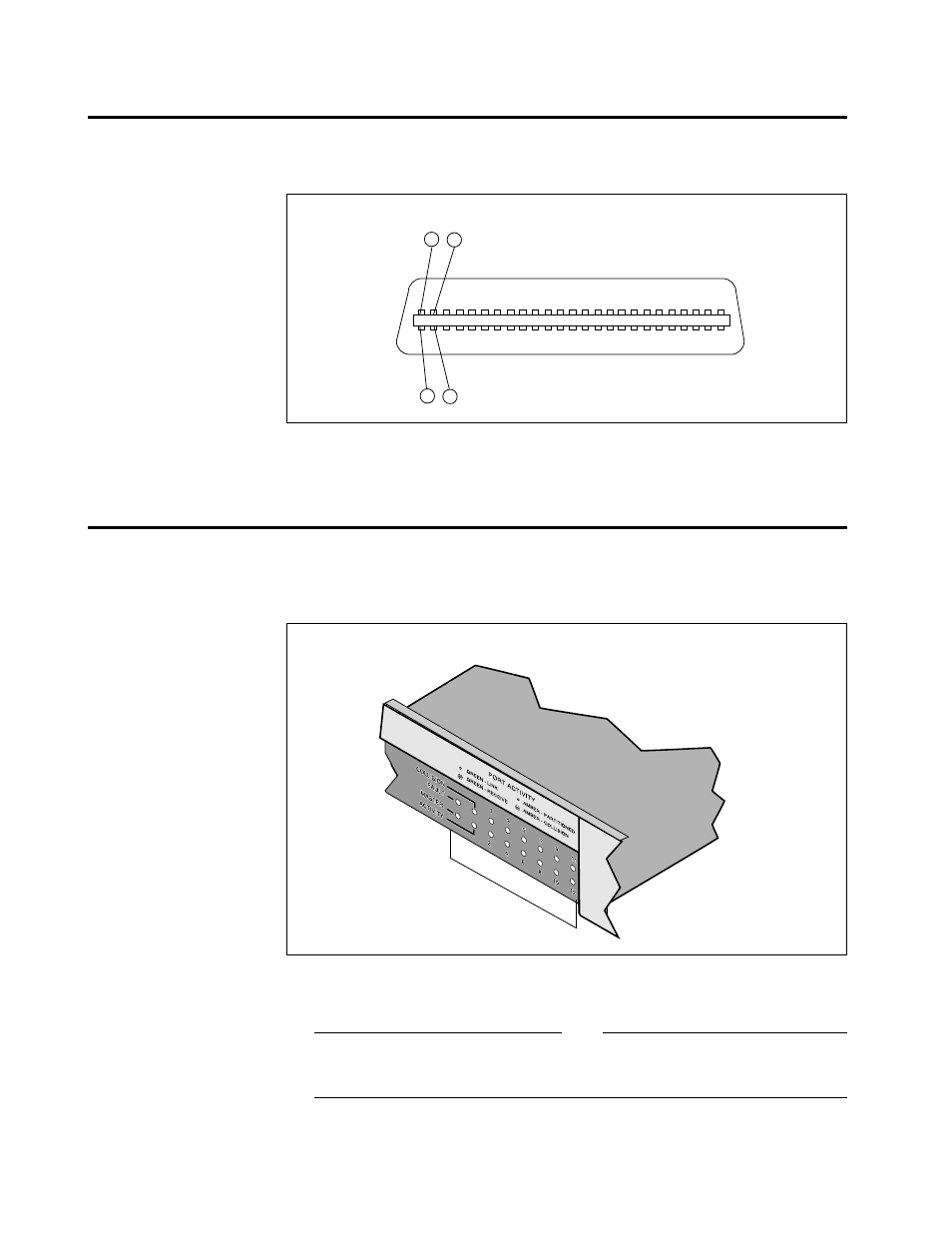

Figure 42: 50-Pin Telco
Receptacle
RD - TD -
RD + TD + 27 26
1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
2
Figure 43: AT-TS12T Port
LEDs
Port activity LEDs
