TurboStack Hubs with Management

13

1.

Every TurboStack hub is shipped with a dust cover on the
interrepeater bus port, located on the back of the TurboStack module,
to prevent static discharge and/or damage to the connector pins. Before
the module is installed in a chassis, the dust cover must be removed, as
shown in Figure 6.

2.

Remove the rubber feet from the module (see Figure 7).

3.

Be sure to reinstall the screws after removing the rubber feet to
prevent the module casing from expanding and warping (see Figure 8).

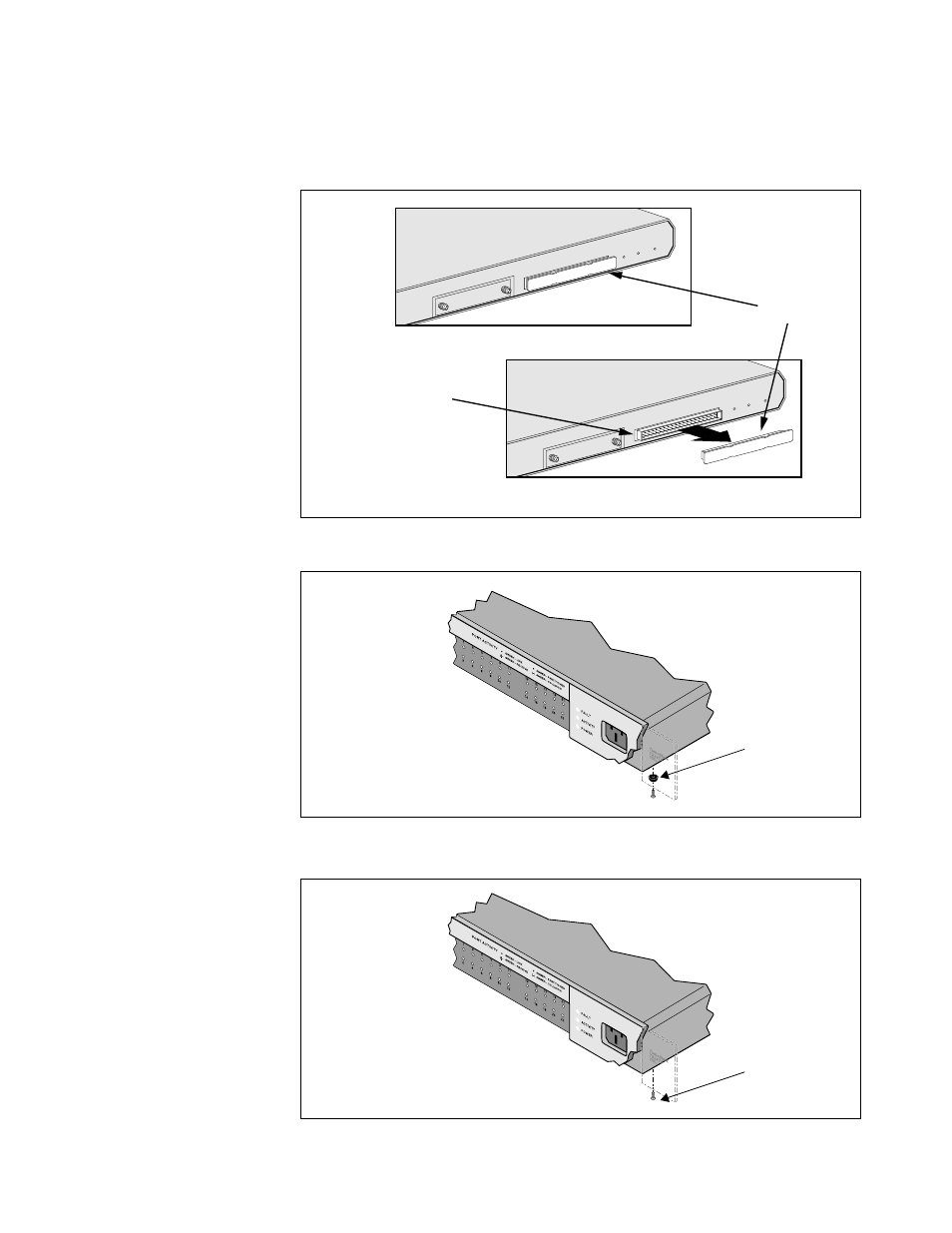

Figure 6: Removing

Interrepeater Bus
Dust Cover

Figure 7: Removing Rubber

Feet from Module

Figure 8: Reinstalling Screws

POWER

MASTER

FAUL

T

POWER

MASTER

FAUL

T

IEEE 802.3

/ ETHERNET 1

0 BASE

2

8 PORT HUB

/ REPEA

TER

with Network Management

Dust Cover

Module with dust cover removed

port connector

Interrepeater bus

Module with dust cover installed

Rubber foot

(1 of 4)

Reinstall
screw
(1 of 4)
