TurboStack Hubs with Management

15

10. Secure the module in the chassis slot by screwing the module in place

(see Figure 9). Then, snap closed the plastic doors.

11. Connect your data cables to the hub and the network. Check the Link

indicators.

12. If one or more of the ports on the module are transferring data, the

Receive indicator will illuminate.

13. The module is now active in the chassis as a component of a network

concentrator.

For confirmation, you can obtain hub and port status information via
network management. To enable management from a PC monitor, the PC
must be connected to the Master through the Master’s RS232 port. For
further details, refer to theTurboStack™ AT-S10 Firmware Module For
TurboStack Hubs Operations Manual.

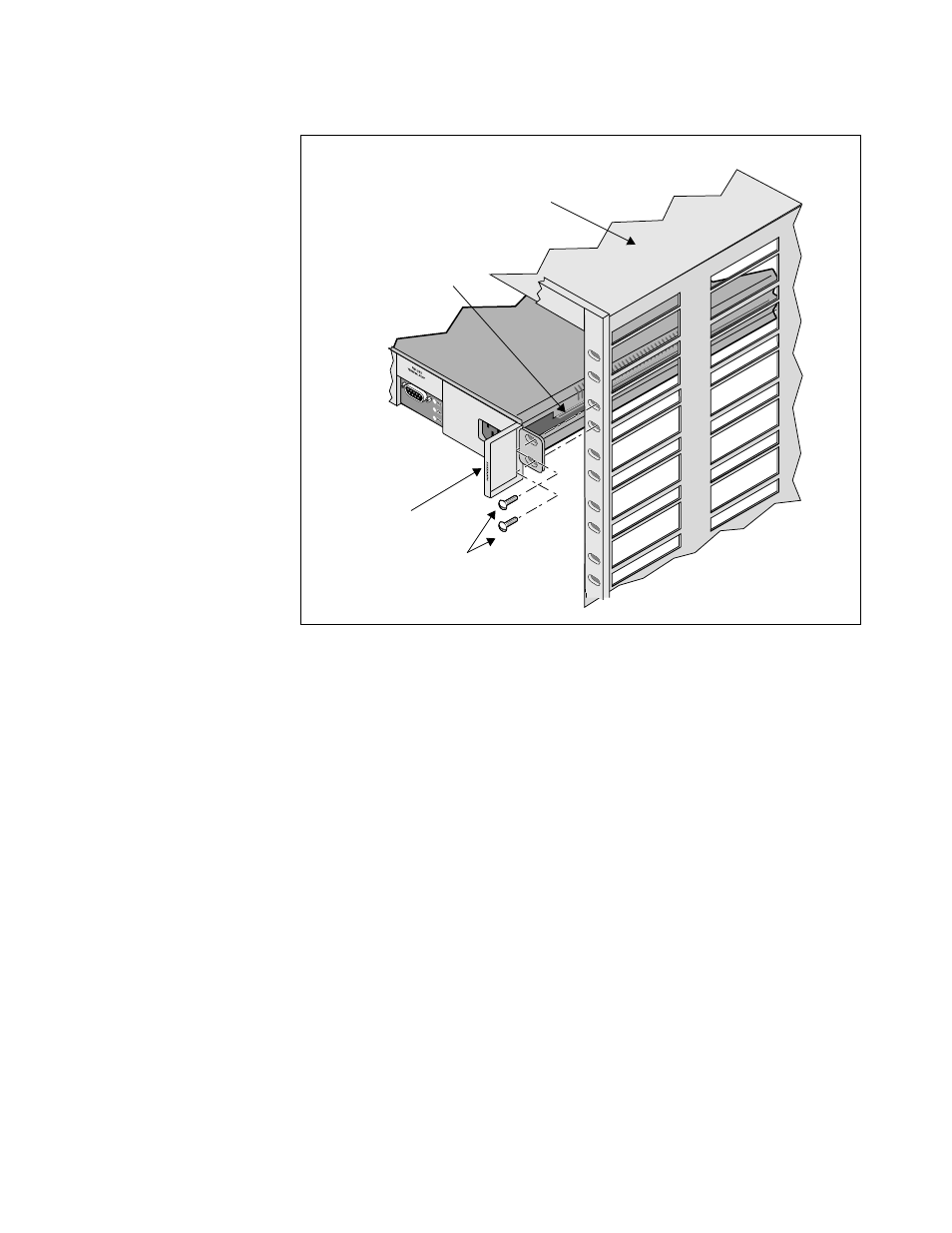

Figure 9: Installing a Module

in a Chassis

Plastic
door/handle

Module
screws

Chassis frame

Module
guide rail
