TurboStack Hubs with Management

5

You can use any combination of TurboStack and AT-3600 Series hubs in
the same department concentrator. In this configuration, however, only
the management features of AT-S4 firmware apply to all the installed
department concentrator units. You must install only TurboStack hubs in
the same department concentrator to enable the full range of TurboStack
features running AT-S10 firmware,.

Note

Not all slots have to be populated and populated slots do not have to be
contiguous. The Master is the top-most module. Any Slave above the
Master will not be managed.

A variety of department concentrator chassis models is available for
TurboStack products. These include chassis with segmented backplanes.
These chassis address a range of needs for different sized networks and
uses. Call your ATI sales representative for details.

Attention

Chassis equipped with fans have variable voltage settings—either 120V or
240V. To avoid overheating, check the specific chassis model to determine
the correct voltage setting.

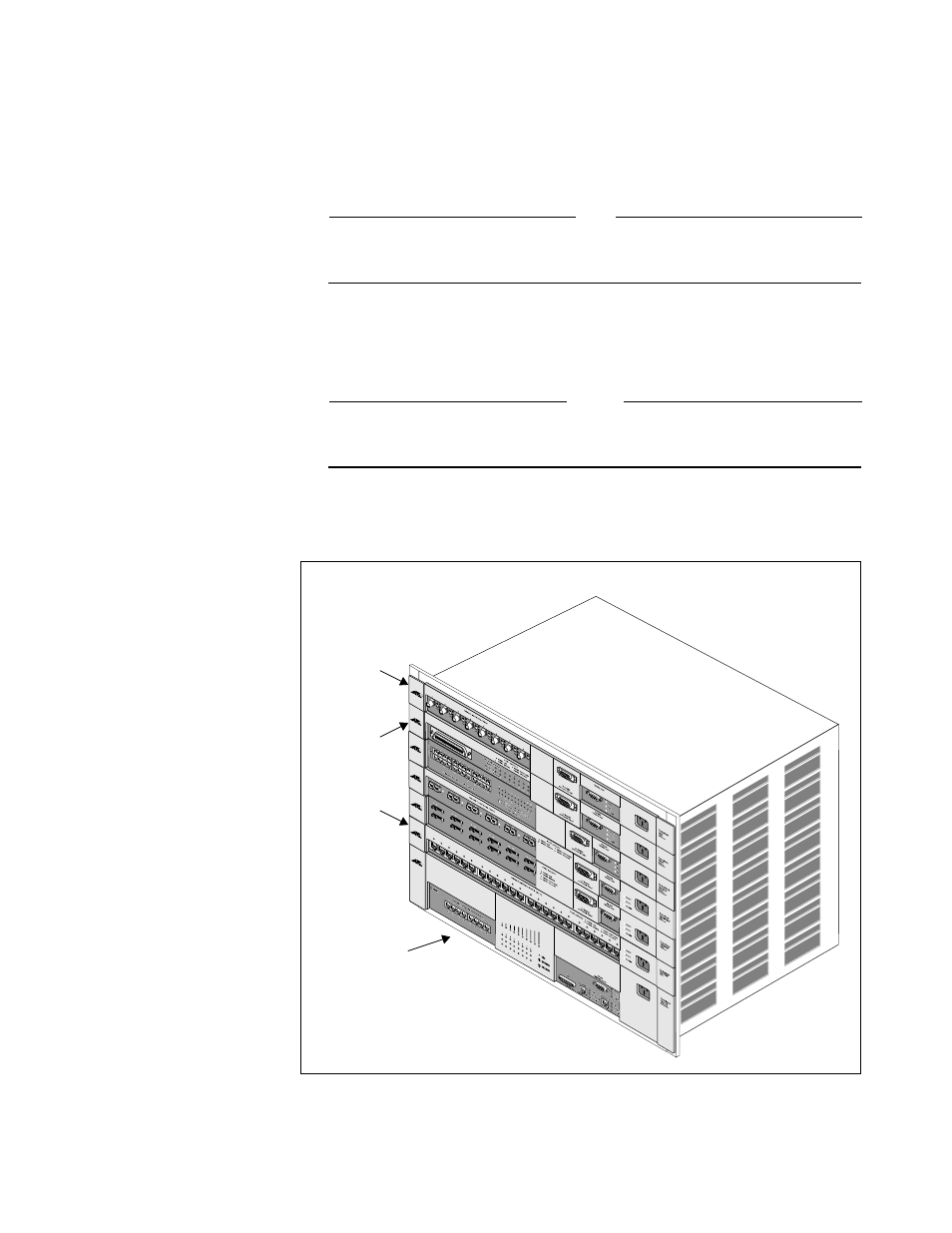

Figure 2 shows a sample TurboStack department concentrator using the
7-slot chassis model segmented backplane. You can configure up to six
TurboStack hubs in these rackmount models.

Figure 2: 7-Slot Chassis with

Segmented
Backplane

Master
module

Backup

AT-TS90TR
(slot 7)

(slot 1)

module

Slave
module
