TurboStack Hubs with Management

35

If you are installing a coaxial cable segment without a BNC-T connector at
the end (as shown in Figure 32), you must enable the termination of the
port by turning the 50

termination switch ON (1).

Port Status Indicators

The port status indicators on the AT-TS08 hubs’ front panels provide
visual diagnostic and activity information for network analysis. The
indicators are either an individual port LED or a central indicator for box
level monitoring.

AT-TS08

Port Indicators

Each 10BASE2 port supports the following indicator functions with two
single-color front panel LEDs per port, shown in Figure 33 below:

ON LINE (Steady Green)— Indicates that the port is not partitioned.

RECEIVE (Flashing Amber)— Indicates that the port is receiving
Ethernet packets.

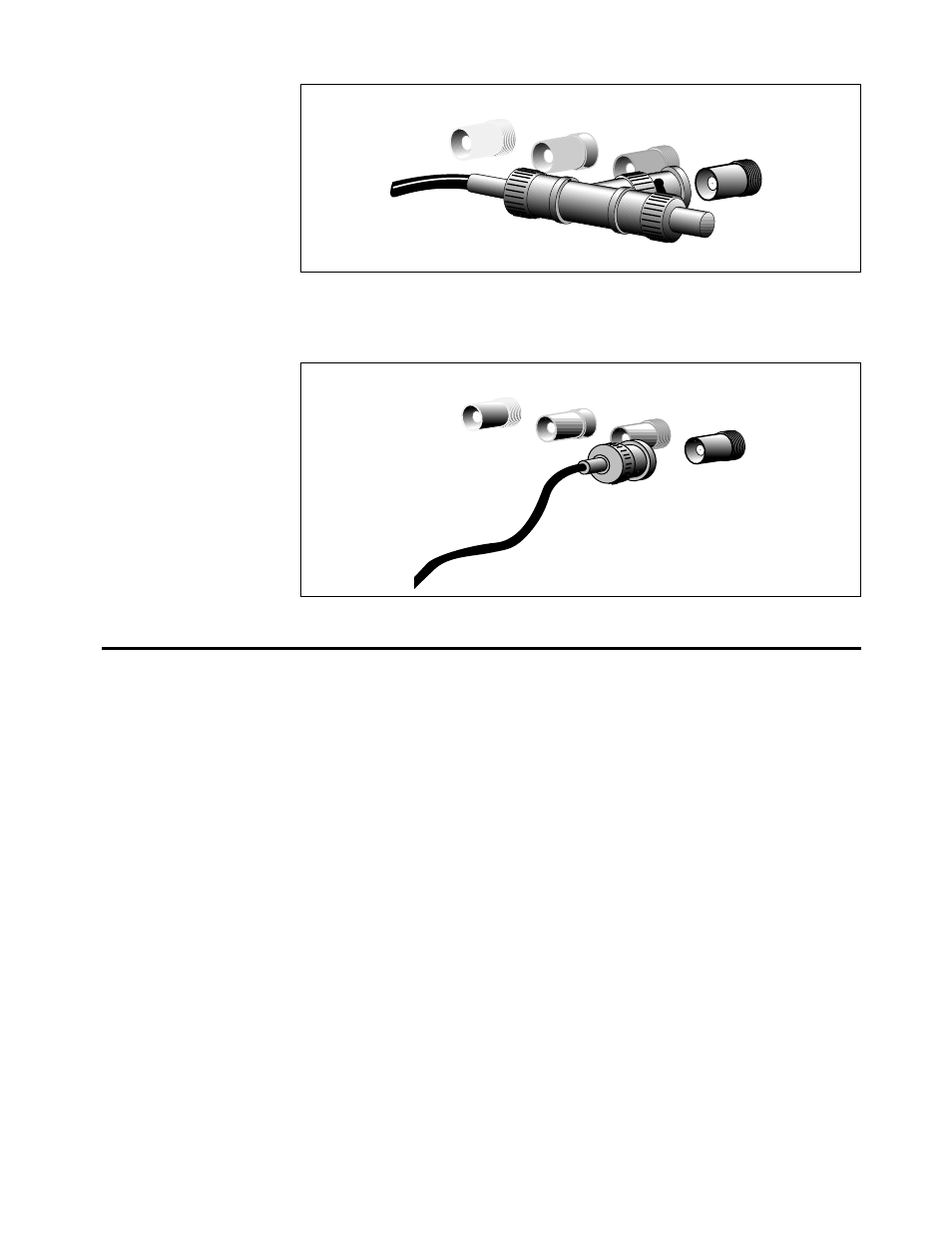

Figure 31: BNC-T at End of

10BASE2 Segment

Figure 32: BNC Connector at

End of Segment with
Internal Termination
